D395-90-880 Issue E
Page 4 © Edwards Limited 2010. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data
2.5 Connections
2.5.1 Active gauge connectors

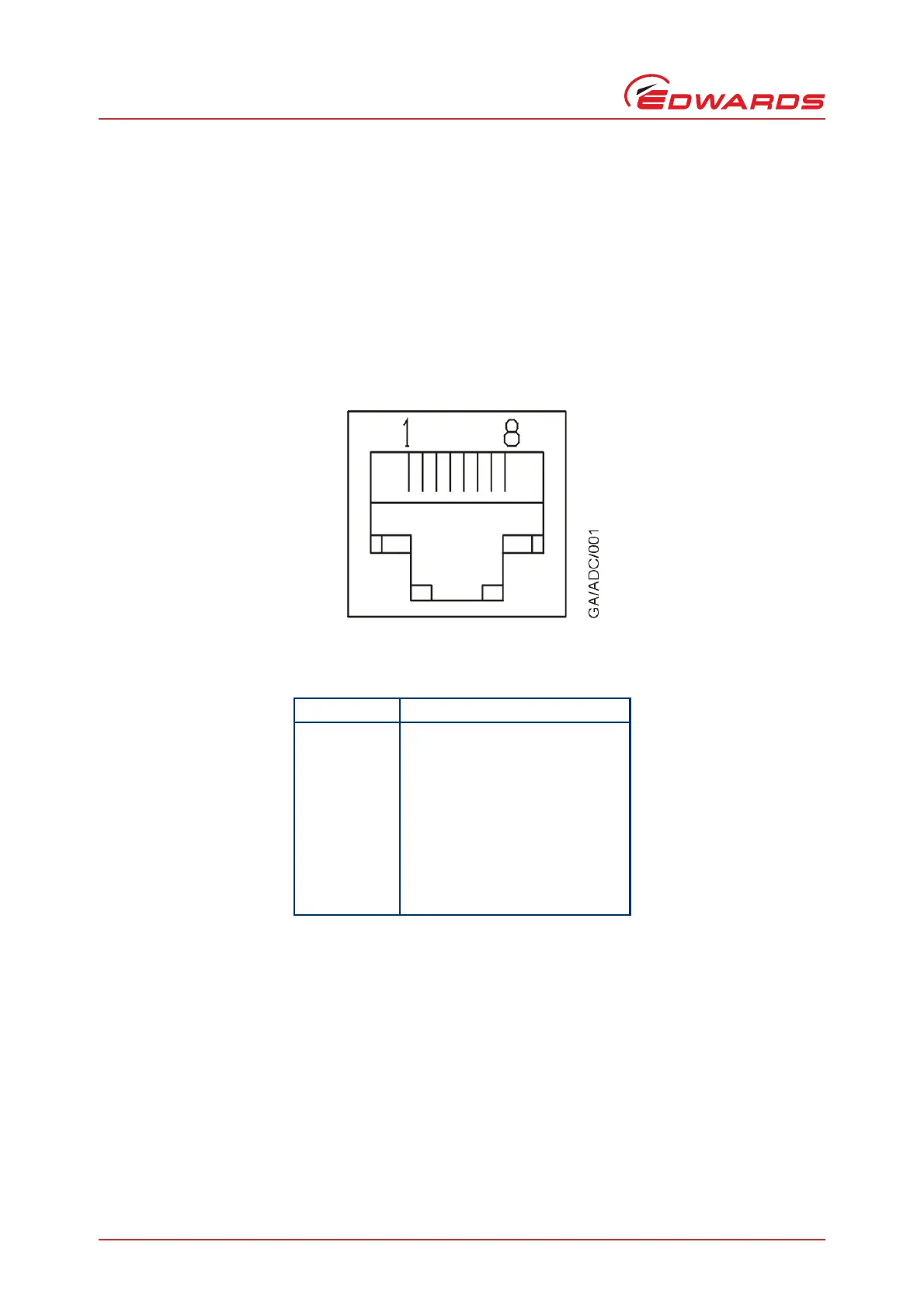

Figure 1 - Pin connections for an 8-way FCC/RJ45
Connector type RJ45, 8-way (refer to Figure 1)
Power supply 24 V d.c. nominal
Maximum power rating 4 W total
Table 2 - Gauge connector pin-out
Pin Allocation
1 Power supply positive
2 Power supply common
3Signal input
4 Identification
5 Signal common
6Control line 1
7Control line 2
8N/C
