Technical data
D395-90-880 Issue E
2.5.2 Analogue / relay connector (enhanced only)

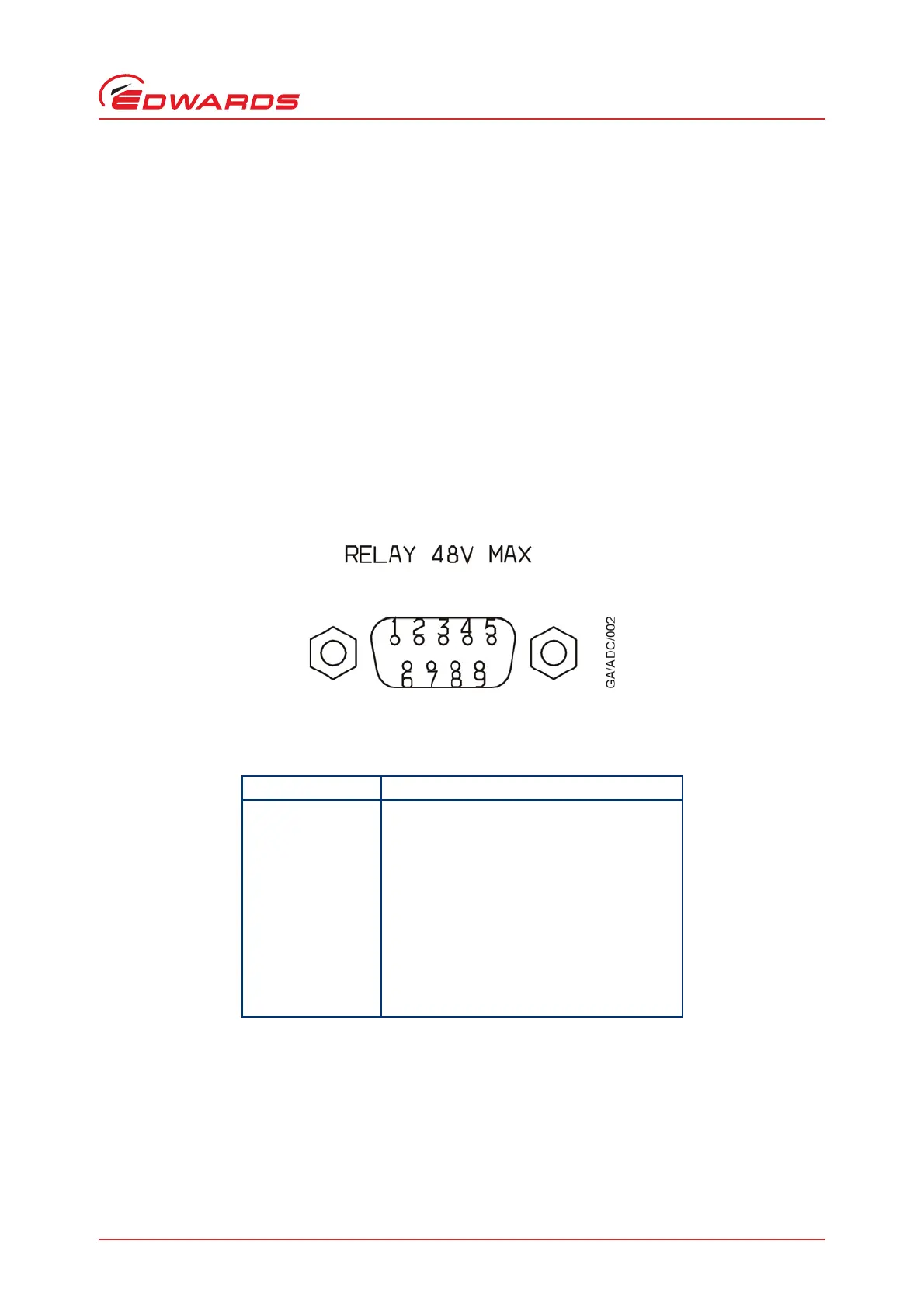

Figure 2 - Pin connections and pin-out for the analogue / relay connector
Connector type 9-way sub-miniature 'D' type plug (refer to Figure 2)
Relays:
Relay type Volt-free single pole change-over
Relay voltage 48 V max
Relay current 1A @ 48 V d.c.
2A @ 24 V d.c.
Analogue outputs:
Output voltage 0 to 10 V
Minimum load impedance 10 kΩ
Maximum current 1 mA
Accuracy ±2% ±10 mV
Table 3 - Pin connections and pin-out for the analogue / relay connector
Pin Allocation
1 Analogue output common
2 Analogue output signal 1
3 Relay 2 common
4 Relay 1 normally - Closed
5 Relay 1 normally - Open
6 Analogue output signal 2
7 Relay 2 normally - Closed
8 Relay 2 normally - Open
9 Relay 1 common
