D135-10-880C - Operation
Page 50
Main menu
The main menu, Figure 23, shows 7 sub-menus. In these sub-menus groups of technical
features are put together logically. From here the next levels of the menu tree can be
reached.
All following chapters show the path to get to the described menu line right underneath the
headline.

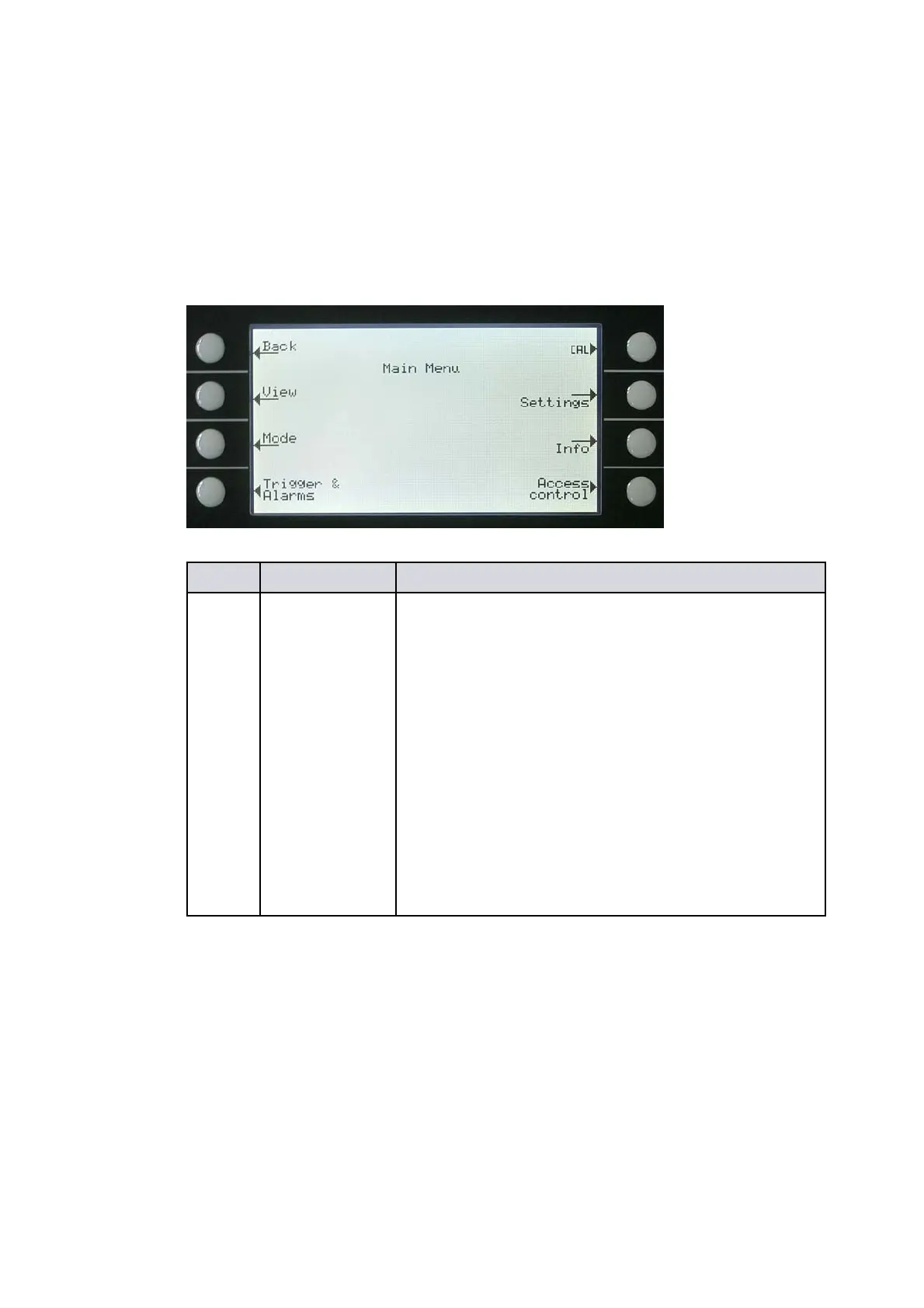

Figure 22 Display: main menu
Key No. Name Description
1 Back Return to the previous screen.
2 View Display settings like scaling, contrast, system background.
Refer to View.
3 Mode Selection of the working modes Vacuum or Sniff. Refer to
Mode.
4 Trigger and
Alarms
Settings of units, trigger levels and alarms. Refer to Mode.
5 Calibration Calibration of the ELD500. Refer to Calibration.
6 Settings Settings of internal machine parameters. Refer to Settings.
7 Information Information on the ELD500 (electrical and vacuum data) and
service menu. Refer to Information.
8 Access Control Access restrictions. Refer to Access control.
