D135-10-880C - Operation
Page 79
Information
Main menu > Information
The Information Menu Figure 31 enables sub-menus to select different kinds of information
belonging to the ELD500.

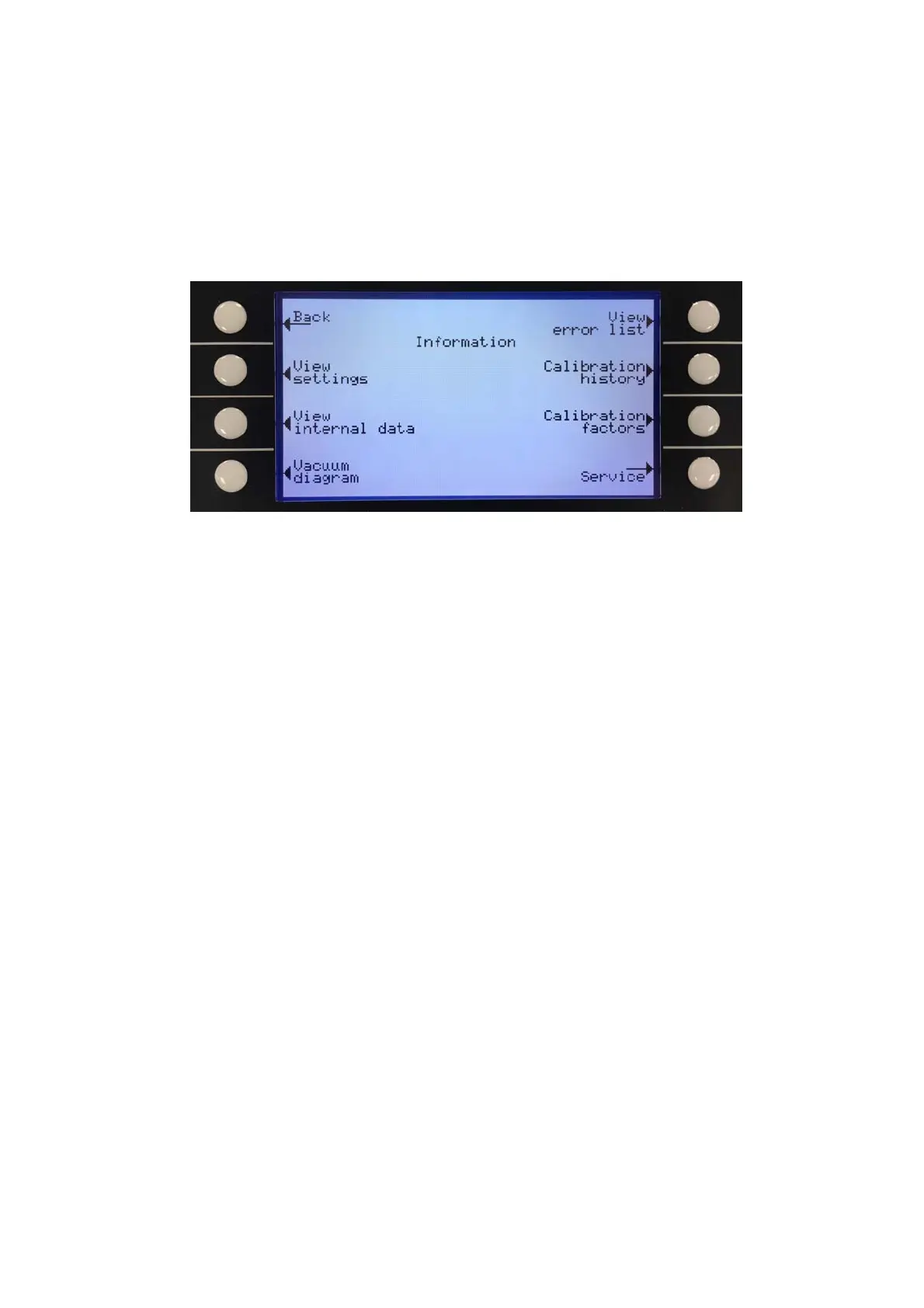

Figure 31 Display: information menu
Softkey 2: View settings
The current settings will be displayed on 5 pages, for example trigger levels, test leak mass,
date and time.
Softkey 3: View internal data
Information on measured internal data is provided on 10 screens.
Softkey 4: Vacuum diagram
The vacuum diagram of the ELD500 is shown displaying which valves are opened or closed
momentarily (See chapter 4.1.1).
Softkey 5: View error list
The list of occurred errors and warnings will be displayed (see Troubleshooting).
Softkey 6: Calibration history
The carried out calibrations will be listed.
Softkey 7: Calibration factors
The calibration factors for the different masses and the machine factor will be displayed.
Softkey 8: Service
To Next Page
