Technical data

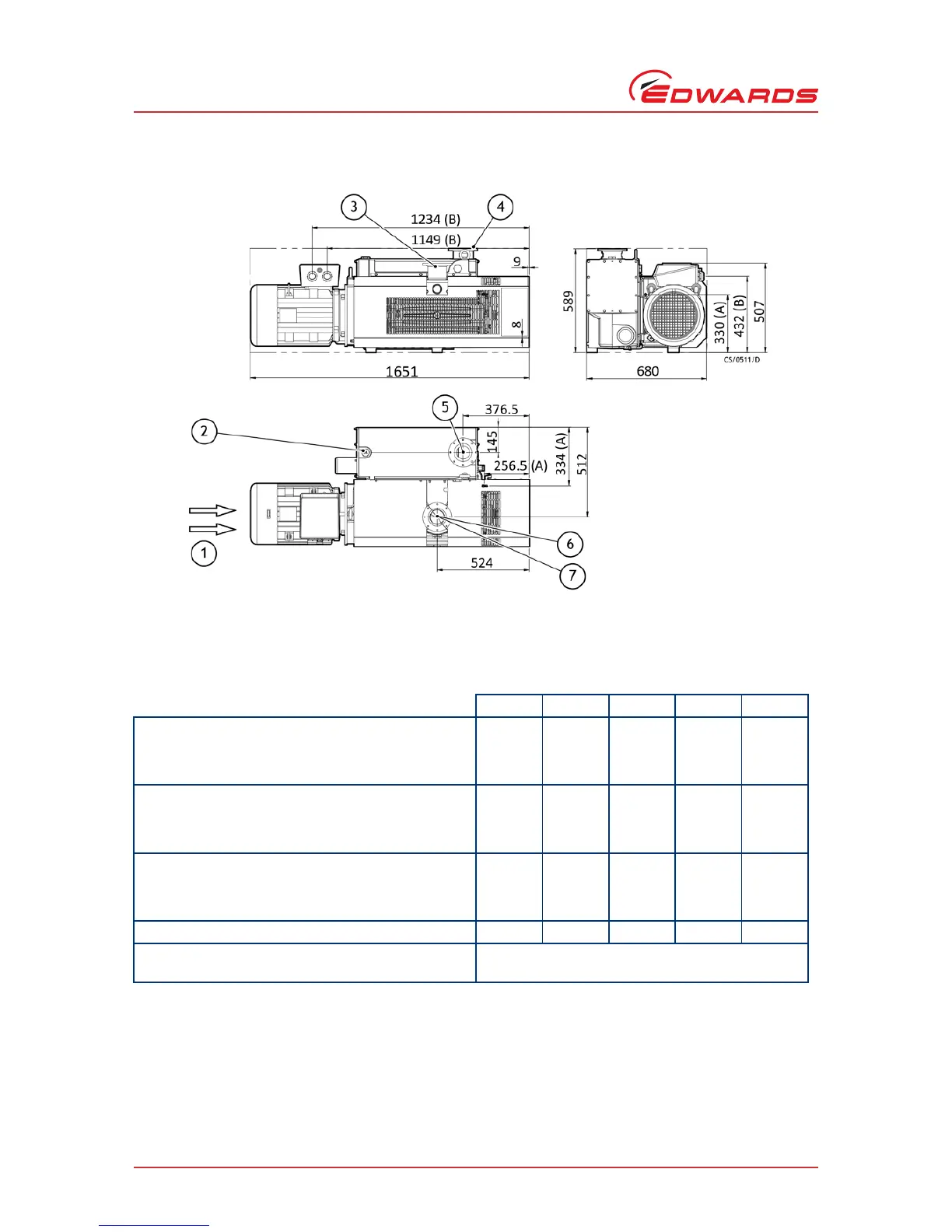

Figure 9 - ES630 dimensions (mm)
2.3 Mechanical data
ES65 ES100 ES200 ES300 ES630
Pump inlet port
Inlet flange ISO40 ISO63 ISO63 ISO63 ISO100
Inlet thread 1” BSP2” BSP2” BSP2” BSP3” BSP
Exhaust port
Exhaust flange ISO40 ISO40 ISO40 ISO40 ISO100
Exhaust thread (flange removed) 1.5” BSP 1.5” BSP 2” BSP 2” BSP 3” BSP
Noise level at 1 metre (dB(A))
50 Hz electrical supply 64 65 67 69 75
60 Hz electrical supply 66 67 69 71 77
Maximum mass (kg) 77 94 163 185 516
Vibration Severity
(Measured at the inlet port to ISO 2372)
Class 1C for ES pumps (measured at ultimate pressure)
