Service, spares and accessories
A352-03-880 Issue B
7.4.3 Oil level sensor and PT100 (ES65/ES100)

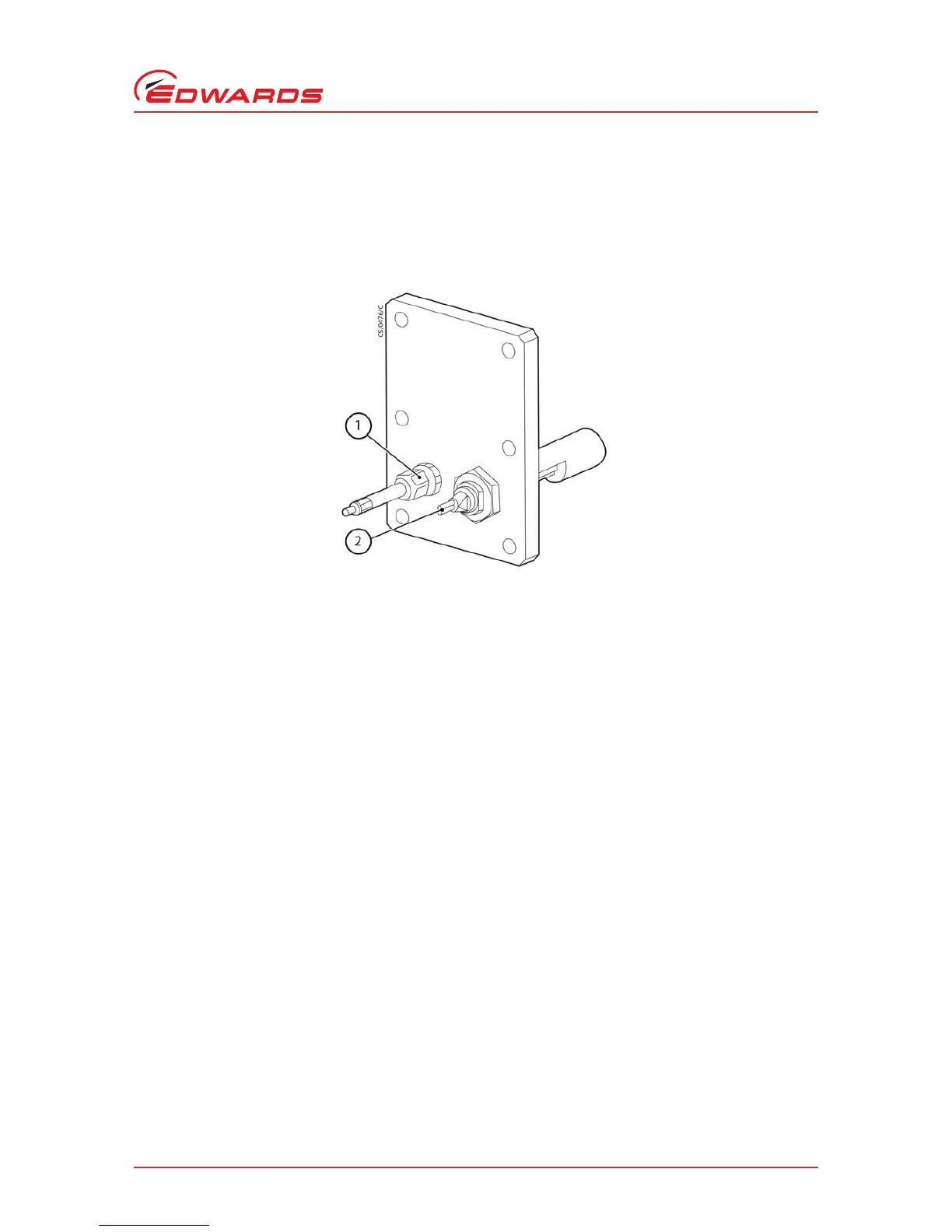

Figure 15 - ES65/ES100 oil level sensor and PT100
Fitting Instructions (refer also to Table 13):
Note: Figure 15 shows the oil level sensor and PT100. See Figure 13 or Figure 14 to see where this part locates.
1. Drain oil from pump.
2. Remove the blank plate and seal.
3. Clean the area where the oil level sensor and PT100 (Figure 15) will be fitted.
4. Carry out a visual check on the sealing face of both the pump and the oil level sensor.
5. Secure using fixings provided.
Product Item Number
ES65/ES100 oil level sensor and PT100 A352-66-812
