Introduction
D396-14-880 Issue J

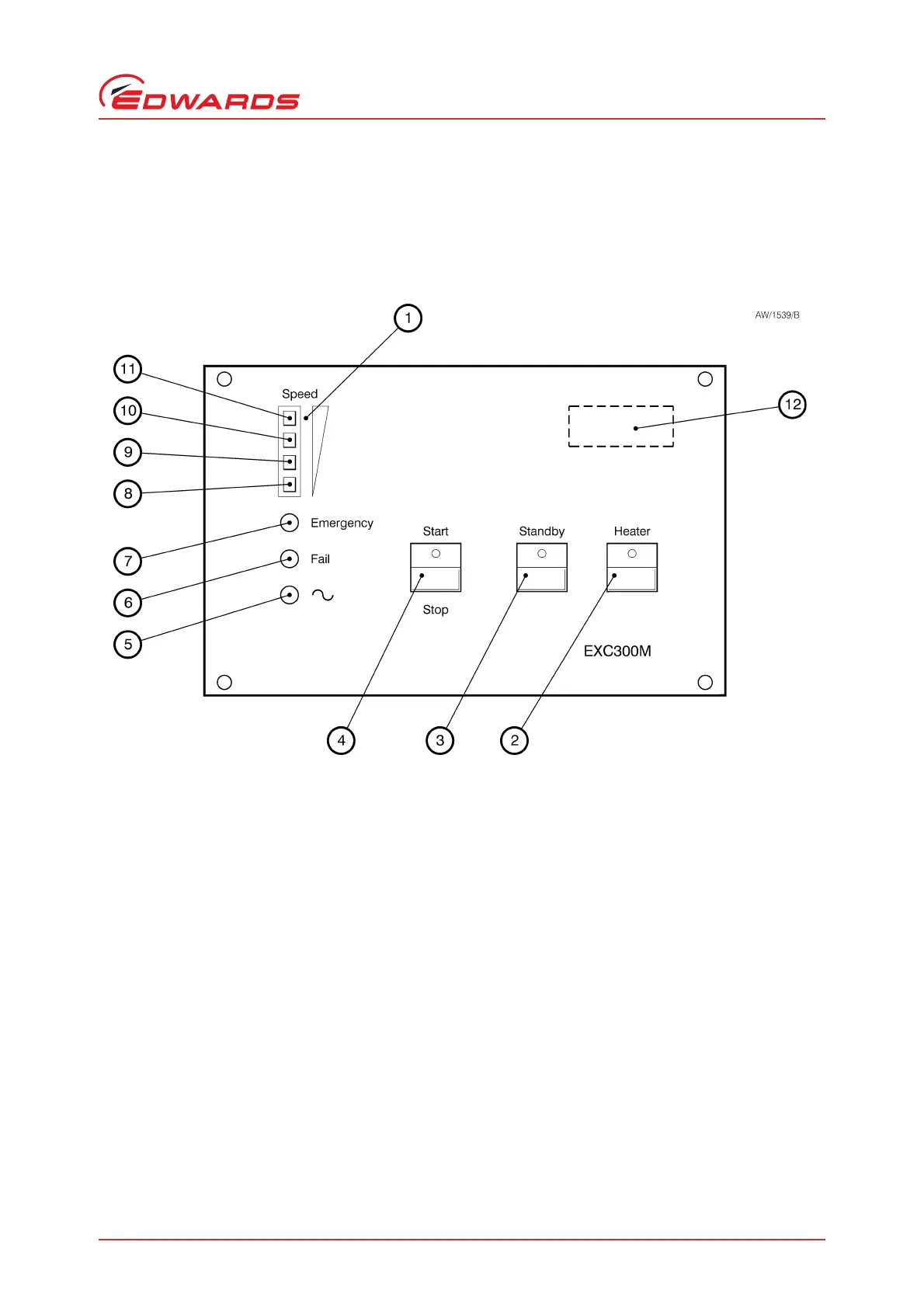

Figure 2 - EXC300/300M Controller front panel
1. Speed indicator
2. Heater (bakeout band) switch
3. Standby button
4. Start/Stop button
5. Electrical supply LED
6. Fail LED
7. Emergency LED (EXC300M only)
8. Pump rotating LED (amber)
9. Pump speed >25% LED (amber)
10.Pump speed >50% LED (green)
11.Pump speed >75% LED (green)
12.Hours counter (EXC300 only)
