Technical data

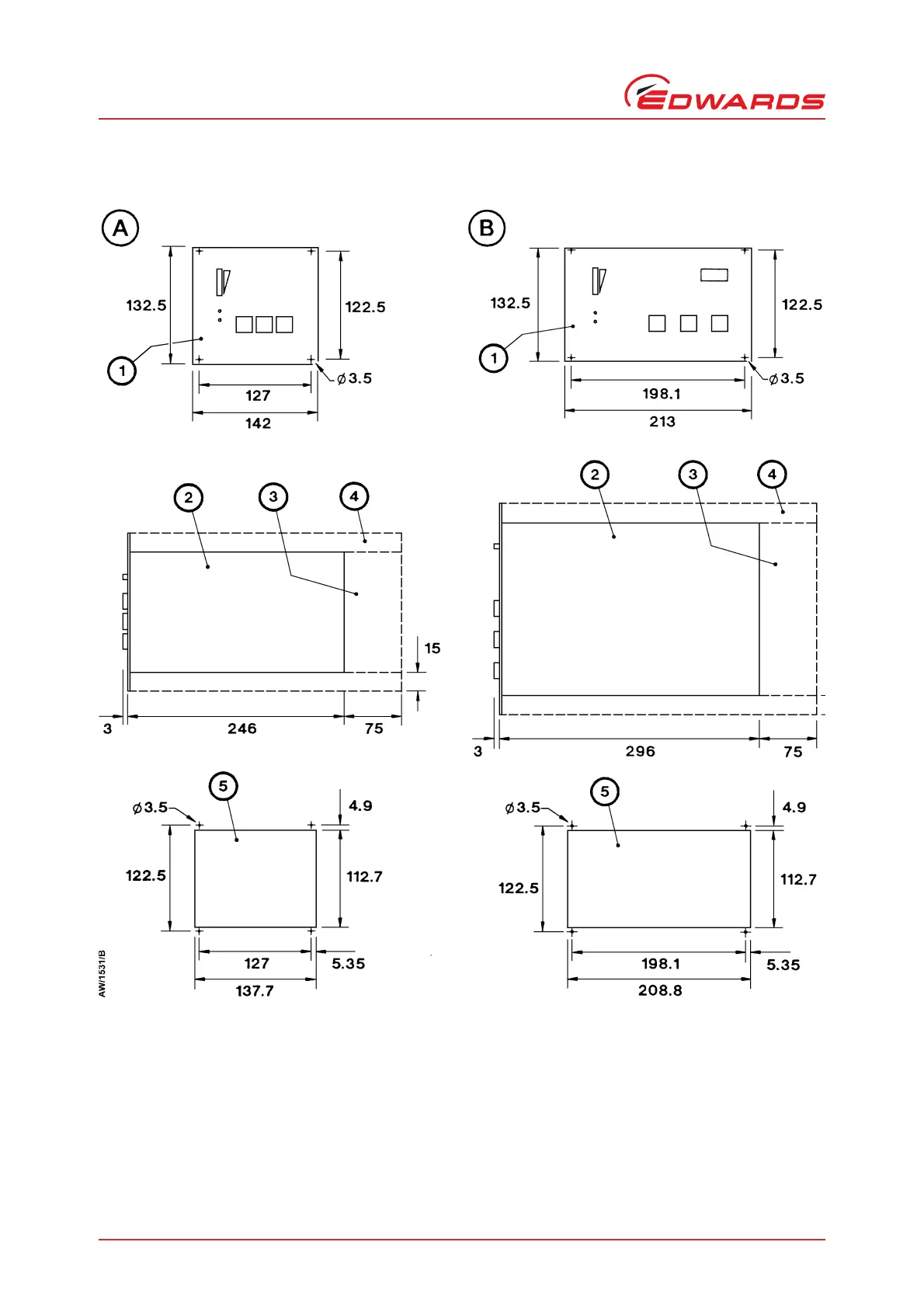

Figure 6 - EXC120, EXC300 and EXC300M Controller dimensions (mm)
1. Front panel
2. View from top
3. Clearance for cables
4. Clearance for ventilation
5. Panel cut-out
A. EXC120
B. EXC300/EXC300M
