Edwards EXT255H Series - Ext255 H;Hi 24 V Dimensions (MM)

B722-20-880 Issue D
Page 8 © Edwards Limited 2008. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Technical data

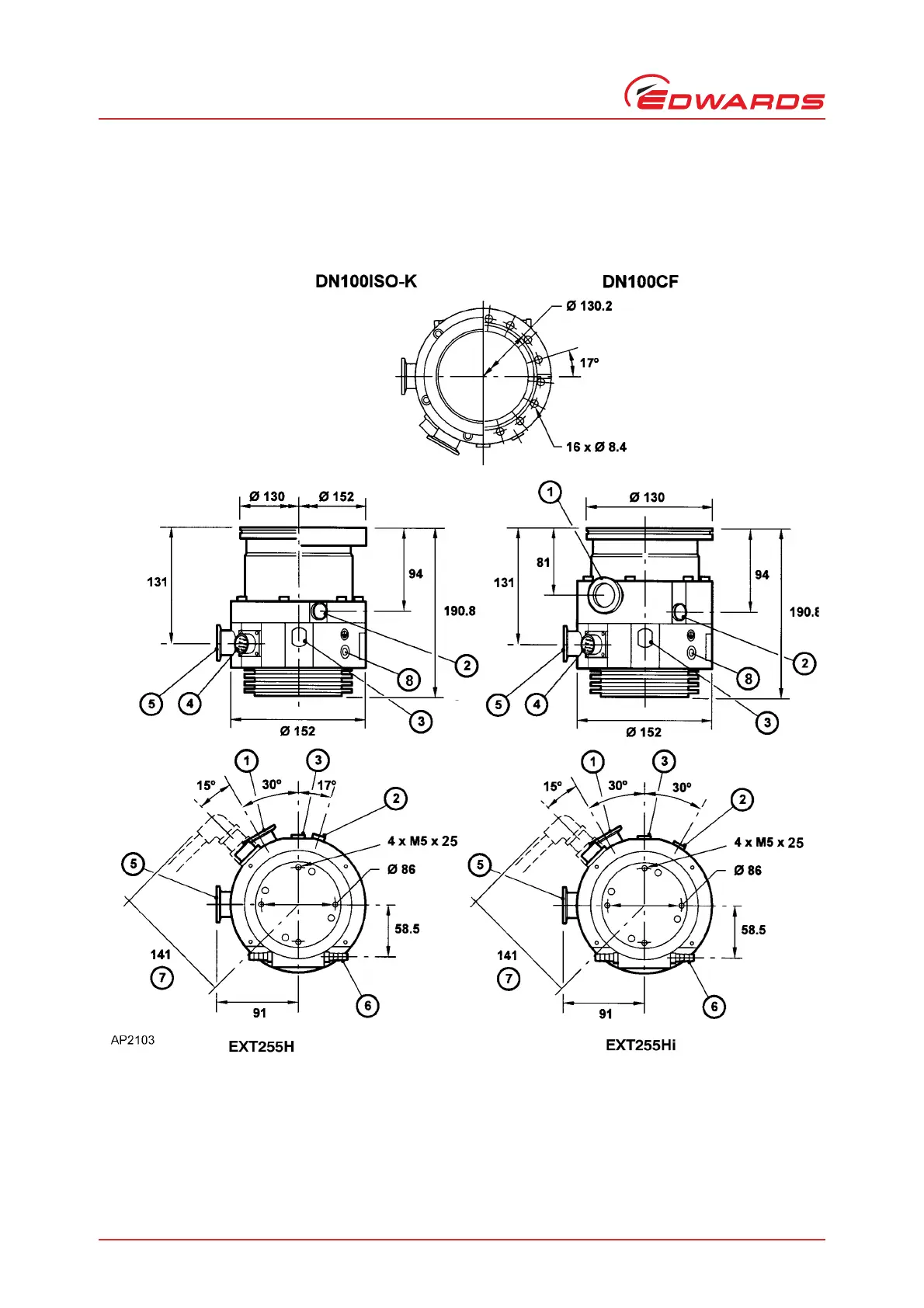

Figure 3 - EXT255H/Hi 24 V dimensions (mm)
1. Interstage port (EXT 255Hi 24 V only)
2. Vent-valve
3. Purge-port
4. Electrical supply connector
5. Backing-port
6. Cooling-water connectors
7. Allowance for right-angle cable connector
8. Earth (ground) bonding point
