Edwards EXT255H Series - Maximum Allowed Rate of Pressure Rise During Venting: Pressure against Time (with the Pump Initially at Full Rotational Speed)

© Edwards Limited 2008. All rights reserved. Page 3
Edwards and the Edwards logo are trademarks of Edwards Limited.
Introduction
B722-20-880 Issue D
The rate of pressure rise cannot be controlled by the manual vent-valve, so if the manual vent-valve is used it must
only be opened after the EXT pump speed has fallen to 50% of full rotational speed.
If a TAV vent-valve is used, but the rate of pressure rise cannot be limited, the vent-valve must only be opened after
the speed of the EXT pump has fallen to 50% of full rotational speed.

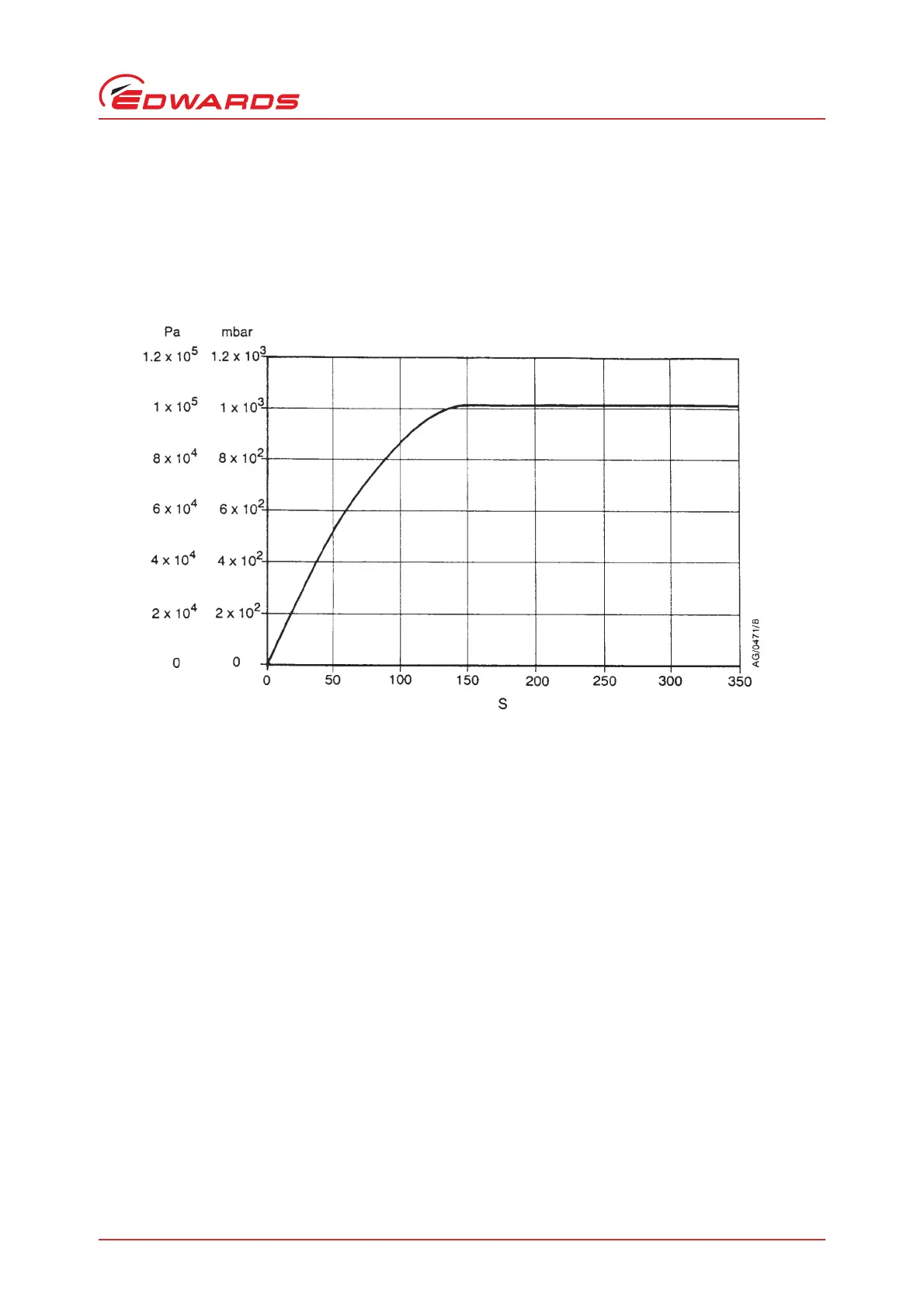

Figure 1 - Maximum allowed rate of pressure rise during venting: pressure against time (with the pump initially
at full rotational speed)
