Edwards EXT255H Series User Manual

© Edwards Limited 2008. All rights reserved. Page 37
Edwards and the Edwards logo are trademarks of Edwards Limited.
Service, spares and accessories
B722-20-880 Issue D

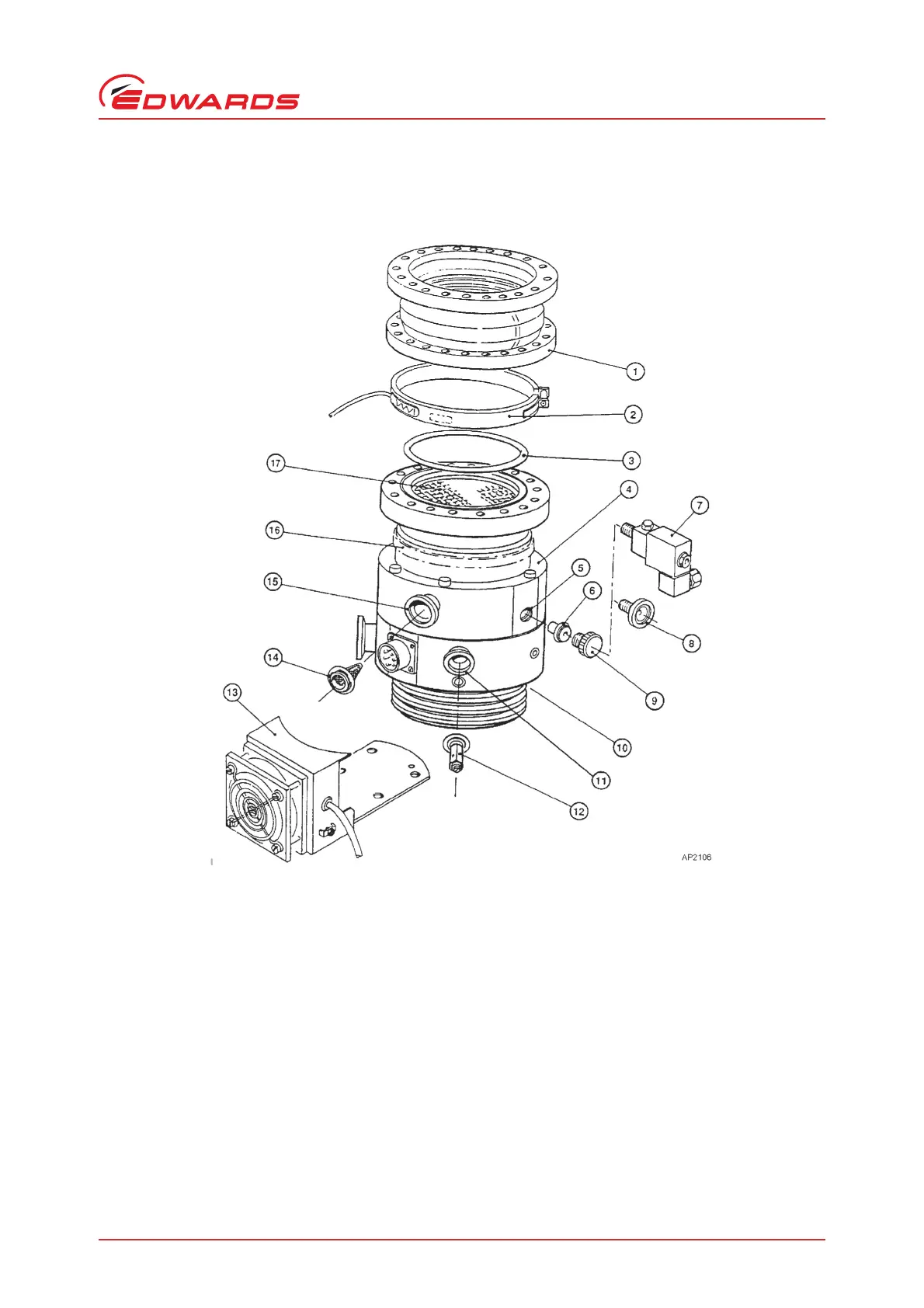

Figure 7 - Installation of optional accessories (and spares): EXT255Hi shown
1. Vibration isolator
2. Bakeout band
3. Inlet-flange seal (supplied)
4. EXT255Hi pump
5. Vent-port
6. VRX vent-restrictor
7. Solenoid vent-valve
8. DN10NW adaptor
9. Manual vent-valve (supplied)
10. Water-cooler (on opposite side of
the pump)
11. Vent port adaptor
12. Purge restrictor
13. Air-cooler
14. Inlet strainer (supplied)
*
15. Interstage-port
*
16. Bakeout band position
17. Inlet-screen (supplied)
*
EXT255Hi pump only
