Chapter 2: Installation and configuration

12 LaserSense 100 Aspirating Smoke Detector Installers Handbook

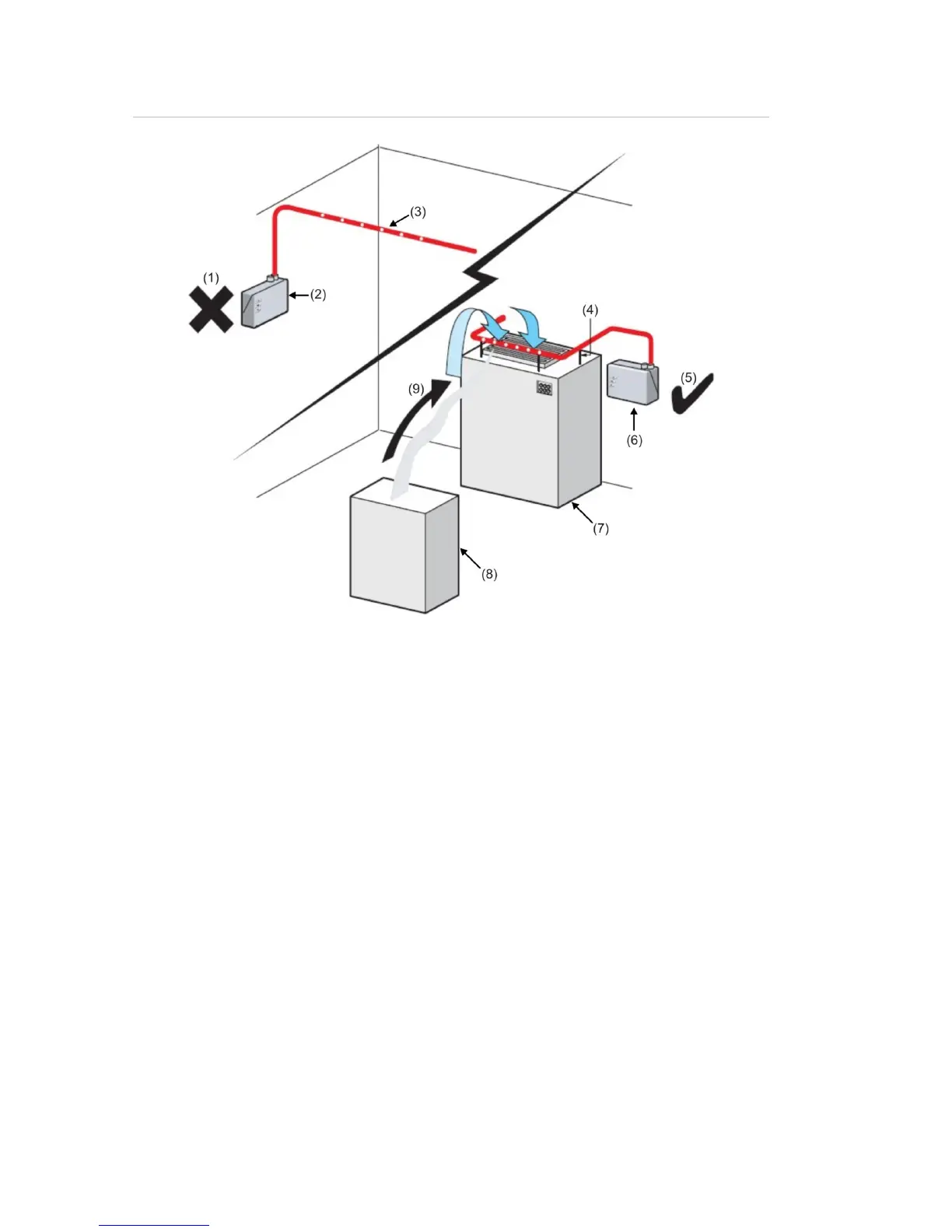

Figure 5: Air handling unit in vicinity of the detector

(1)

Incorrect location

(2)

Detector

(3)

Sampling pipe

(4)

Standoff posts

(5) Correct location

(6) Detector

(7) AHU

(8) Equipment cabinet

(9) Direction of smoke
