STP Series Turbomolecular Pump
MT-00E-001-M
Page 7
INTRODUCTION
1

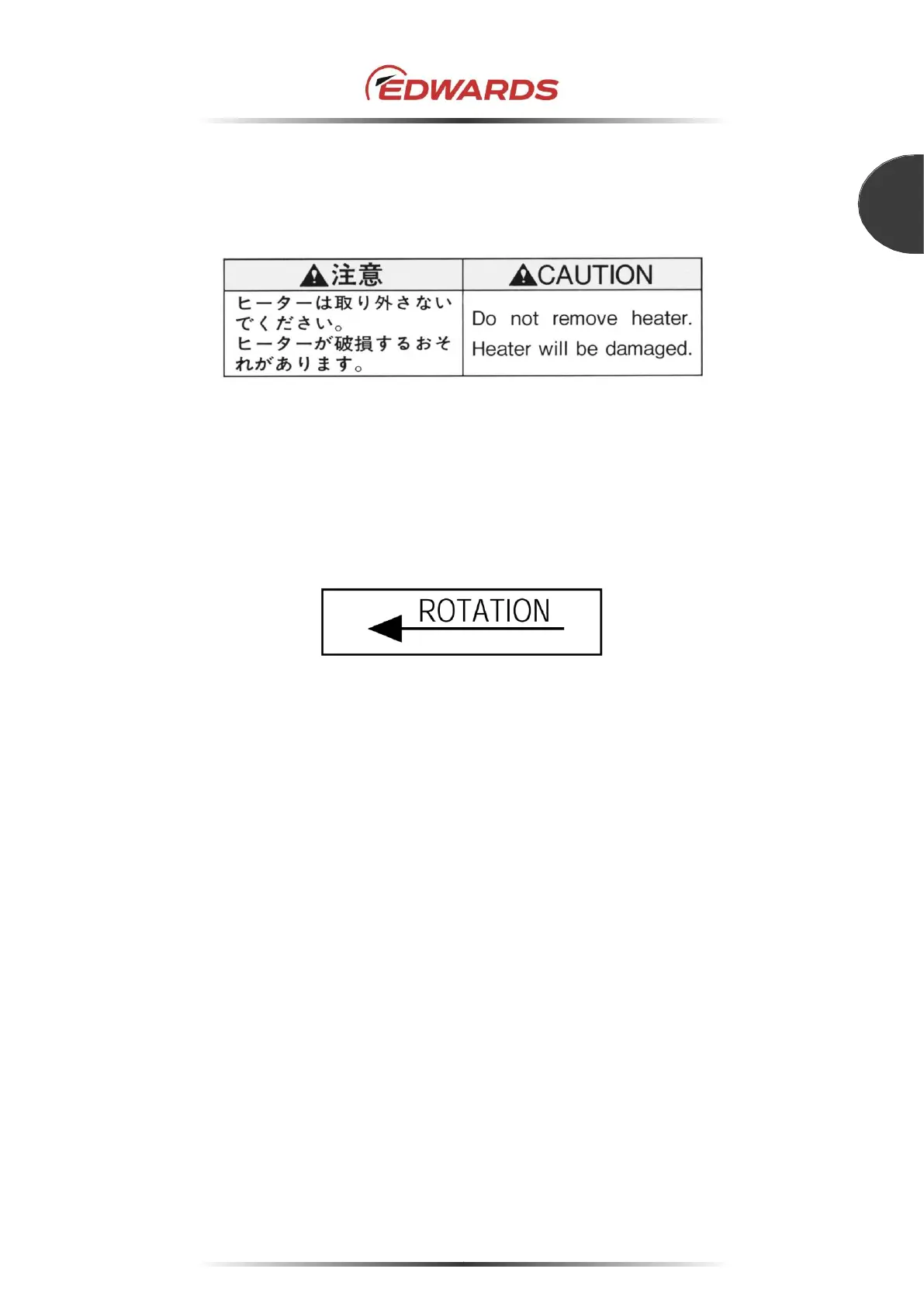

6. TMS heater caution label
This label instructs operators so as not to remove the TMS heater from the STP pump. (only
with TMS unit)
Figure 6 - TMS heater caution label
7. Rotational direction instruction label
This label describes the rotational direction of the STP pump. The STP pump rotates in this
direction.
Figure 7 - Rotation instruction label
