Installation
3.4 Lifting the pump
Although the pump is less than 25 kg and can be lifted manually, it is recommended that suitable lifting equipment
is used whenever possible. The lifting equipment should be attached to the uppermost tri-bar on the pump. It should
be noted that the pump may alter its position during lifting and suitable precautions should be taken.
3.5 Locate the pump
Provide a firm, level platform for the pump. Locate the pump so that the gas-ballast control (if fitted) and the on/
off switch are accessible.
If your pump will be located inside an enclosure, make sure that there is adequate ventilation at both ends of the
pump, so that the ambient temperature around the pump does not exceed 40 °C. There must be a minimum space
of 25 mm between the pump and the enclosure walls.
In addition, ensure that the location of the pump and the intended routing of connecting parts i.e. process line,
exhaust line and power cables will not present any physical hazards, for example; trip hazards to personnel.
3.6 Electrical installation: single-phase pumps
3.6.1 Check and configure the motor
Ensure that the motor is correctly configured for your electrical supply. If you operate the pump when the motor
is not correctly configured for the electrical supply, you will damage the motor.
Refer to Figure 4 for the item numbers in brackets.

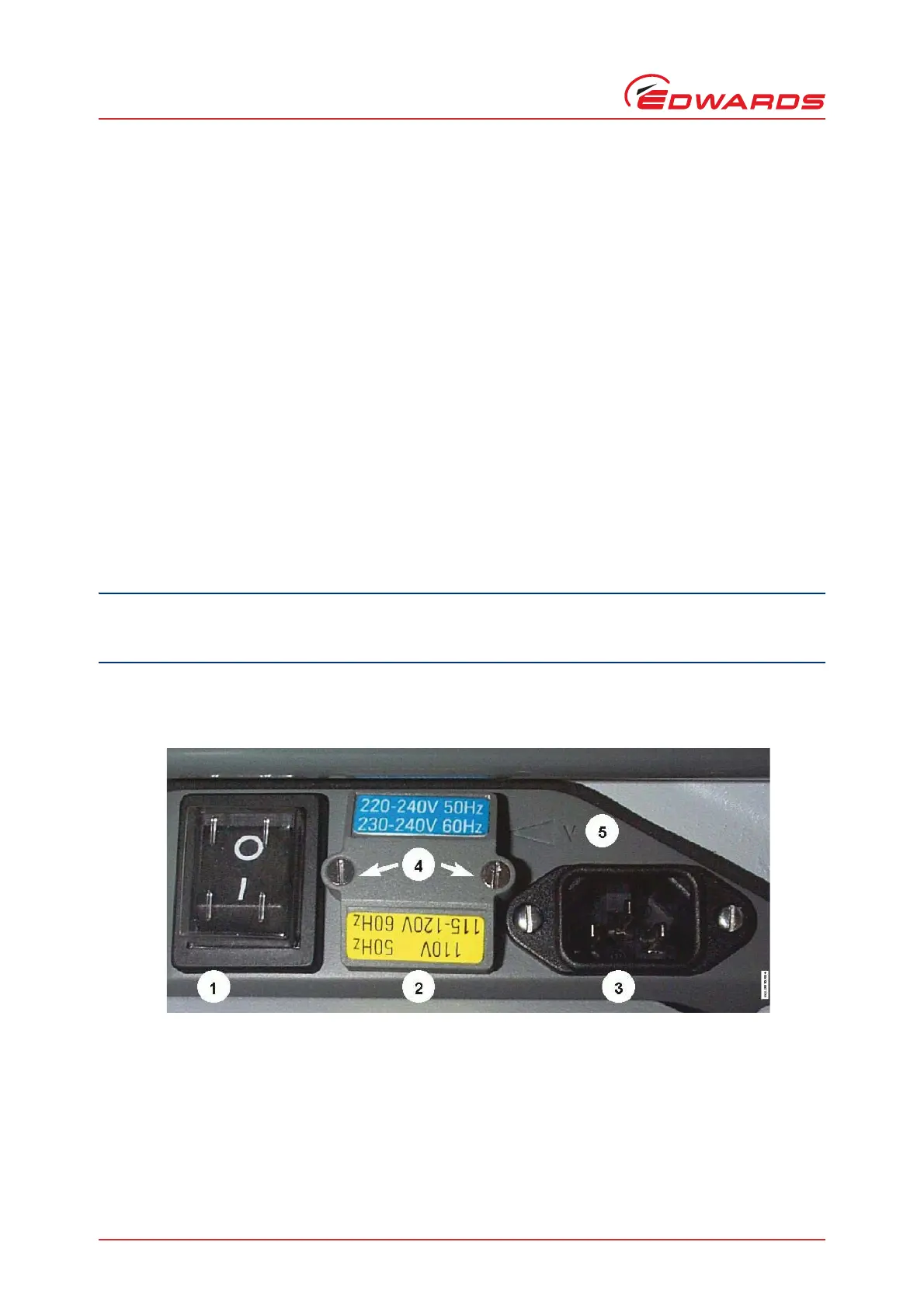

Figure 4 - Electrical interface: single-phase pumps
1. On/Off switch (I = On, O = Off)
2. Voltage indicator moulding
3. Cable socket
4. Voltage selector screws
5. Voltage indicator arrow
