Functional description
Page 24 of 72 MSM-USM2G-BA-UK-004

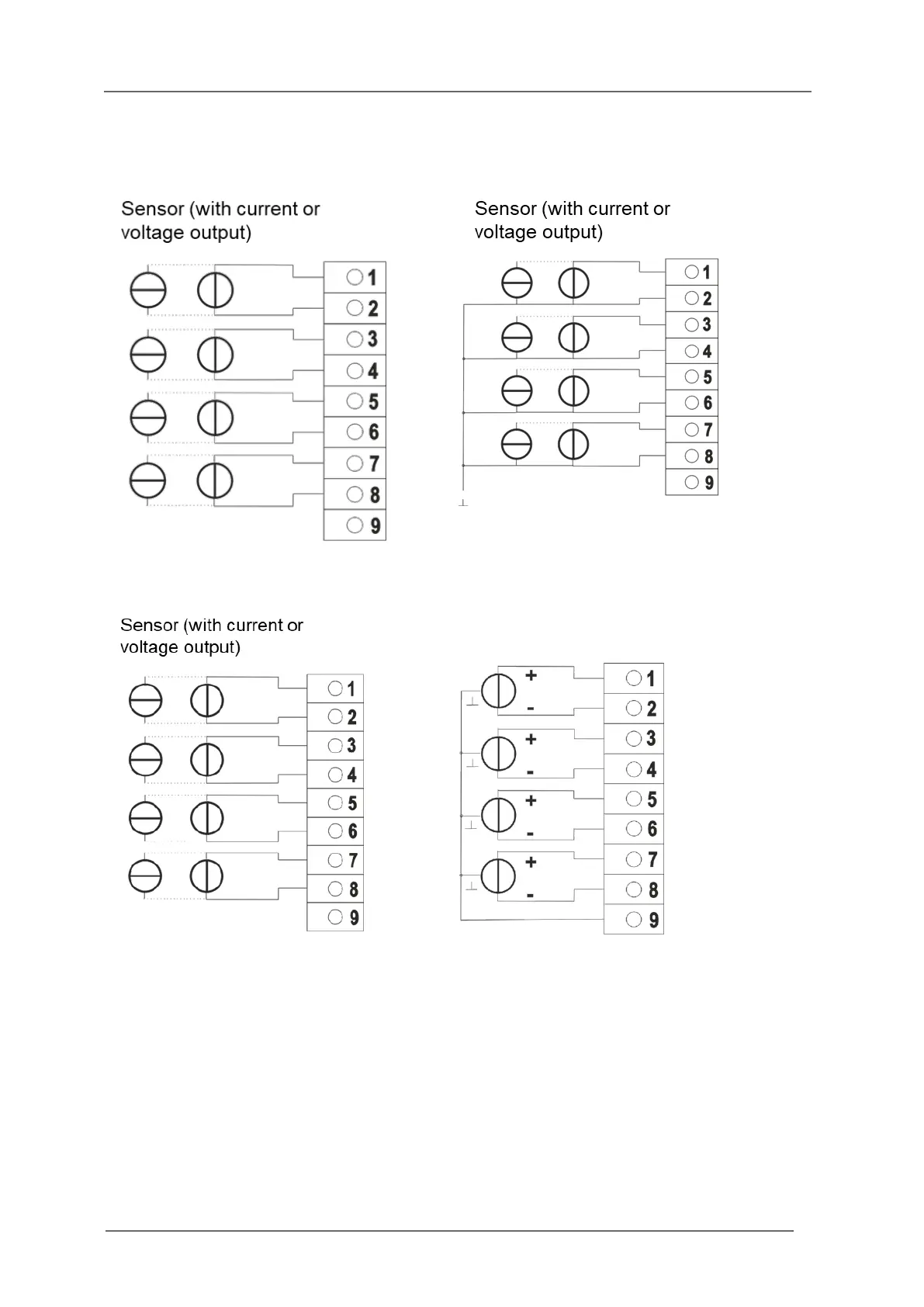

Connection variants of the sensors to analog inputs
Depending on the task and local circumstances, the following connection variants can be selected:
Fig. 3.14 Potential-separated sensors Fig. 3.15: Sensors with common reference ground
(Ground connected to sensor)
Fig. 3.16 Sensors with common reference ground Fig. 3.17 Sensors with differential output
(Ground connected to the input terminals)
