Parameterization
5.3.3.7 Submenu Analog channels
Depending on the size of the device, a USM can be equipped with up to 5 analog input cards. Each
input card has 4 analog inputs. The submenu is only displayed if analog cards are integrated in the
fault indicator. The parameters are divided into 4 dialog pages which are displayed by clicking the
corresponding buttons.
Reports
Adaption
Sensor
Transmission
The currently edited dialog is preceded by a "-" in the button. The other dialogs have a leading "+" in
the button.

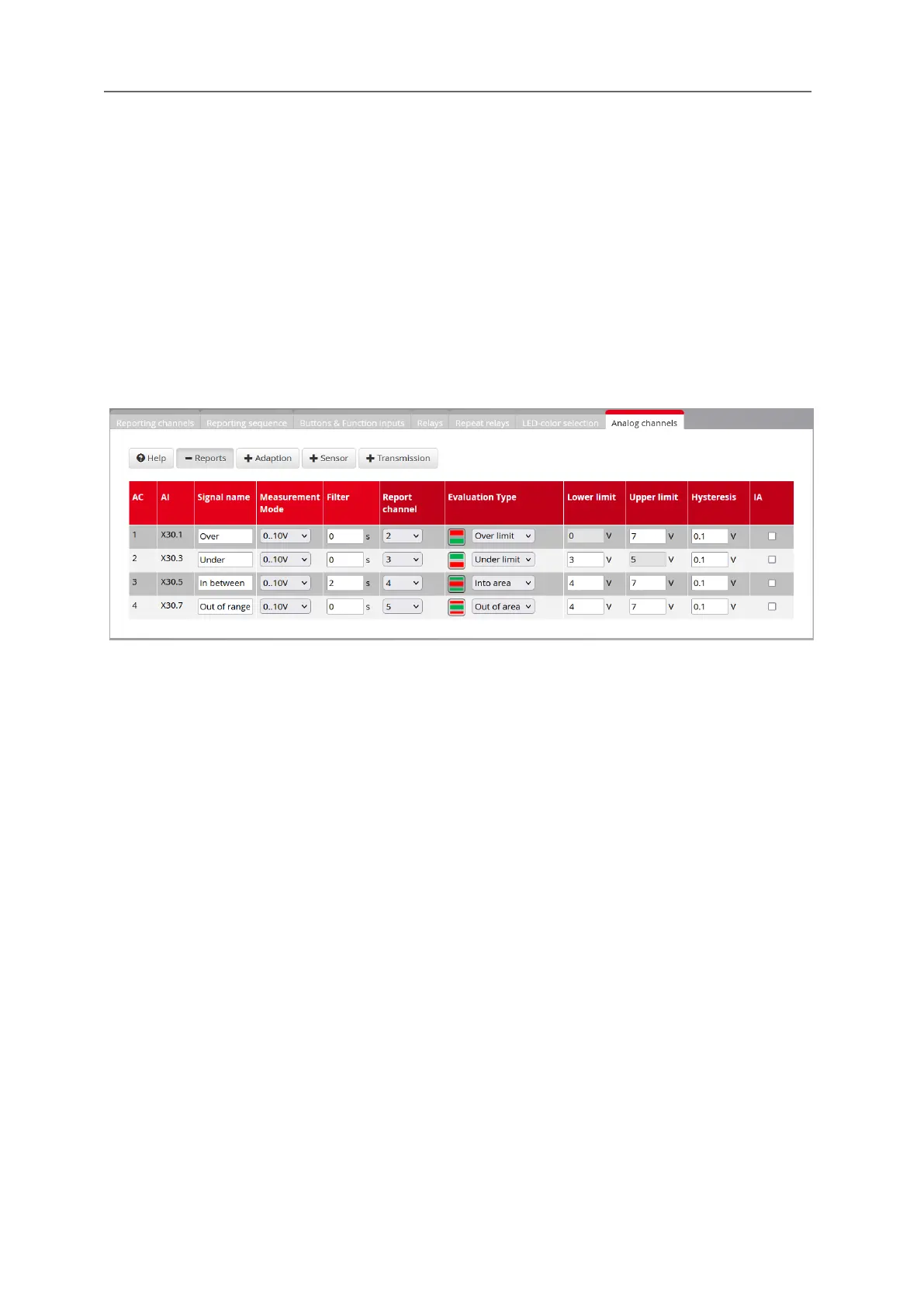

Fig. 5.21: Submenu analog channels for a fault annunciator with one analog card with 4 inputs
