Functional description
3.13 Input and LED assignment
The first input of the input terminal with the highest designation is always the first alarm at the top left
of the front panel display. In the following example, this is X14.1. The other assignments of the input
terminals are as shown in the individual alarm labels on the front panel in the drawing below.

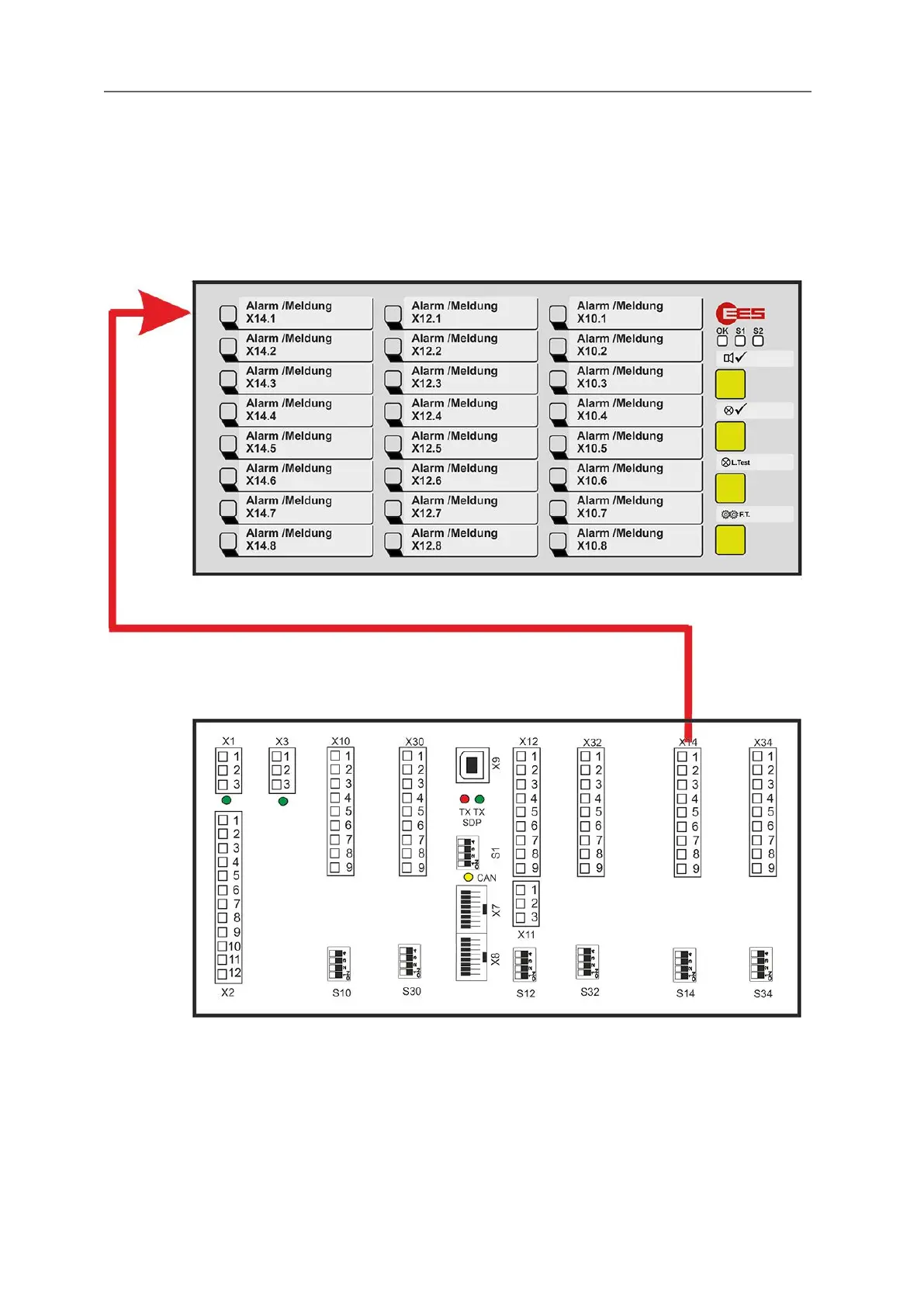

Fig. 3.30: Assignment between alarm input and LED display using the example of a USM 24
