Functional description
3.12 Front and back views of the USM
3.12.1 USM 08
The following pages show the front and rear views of the fault indicators. Please note the arrangement
of the terminals of the signaling inputs and their assignment to the displays in the front. The units are
each shown with the maximum configuration, i.e. all options. For units which do not have these
options, the corresponding terminals are omitted.

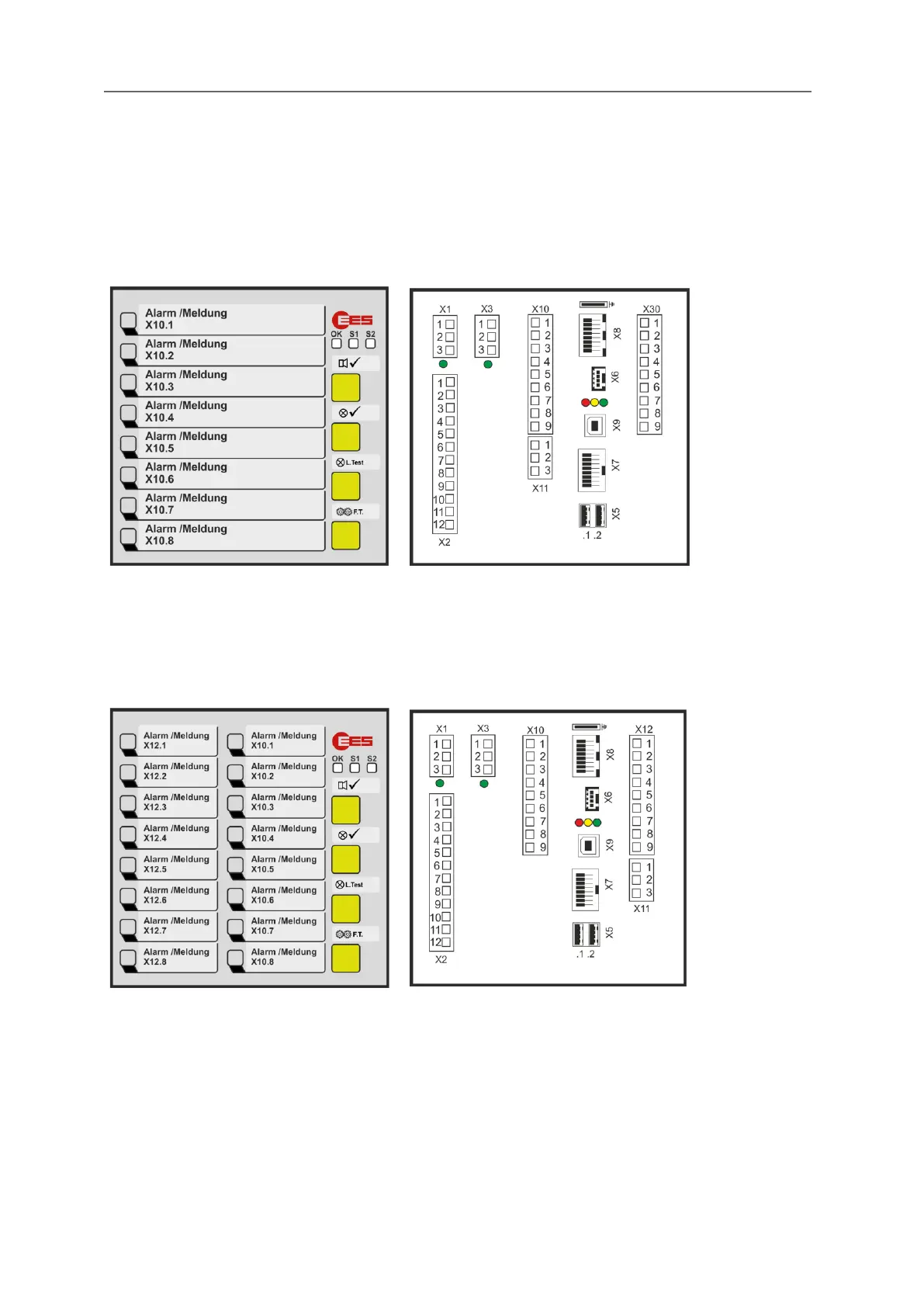

Fig. 3.18: Front- und Back view of the USM 08
3.12.2 USM 16
Fig. 3.19: Front- and back view of the USM 16 in housing 96 x 96
