Parameterization
Dialog Adjustment

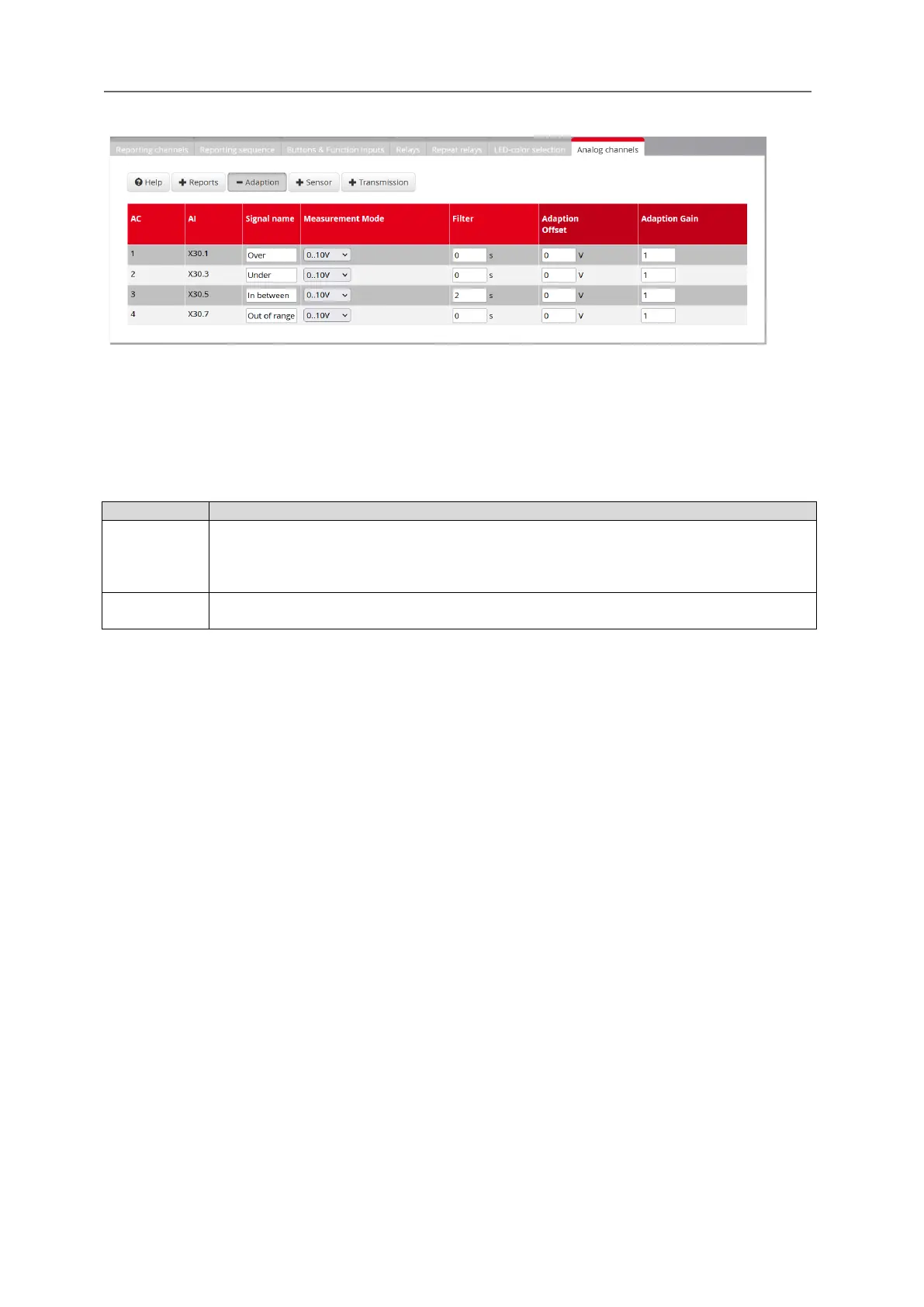

Fig. 5.22: Submenu analog channels - Dialog adaption
The measured value acquisition has an accuracy of better than 0.5% when delivered. If it is necessary
to adapt the measured value acquisition, e.g. for a lead adjustment of the sensor, it can be readjusted
via two parameters.
The first 5 columns are taken from the previous dialog, but can be changed.
The offset is added to the measured value. (The addition takes place only after the
value has been multiplied by the gain). The unit of the offset is automatically adapted
to the measuring mode and displayed as Volt or mA.
Factory setting: 0
The measured value is multiplied by the gain. Only then is the offset added.
Factory setting: 1
Table 5.8: Adaption of analog inputs
