EFD 800 - Page 4

800

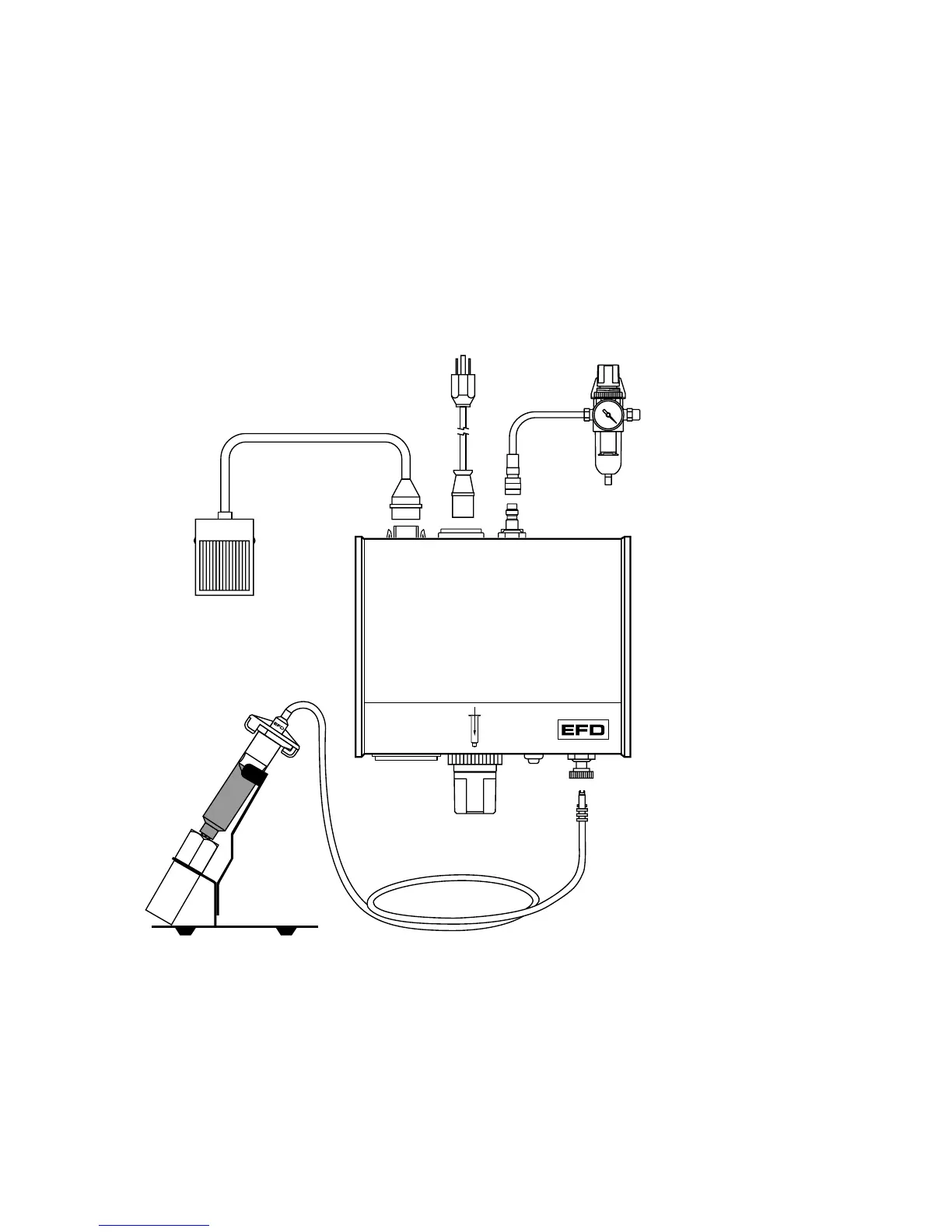

Plant air, 125 psi maximum to
regulator. Output from regulator
should be a minimum of 80 psi,
maximum 100 psi.
❶
❷
Check voltage label
on dispenser
❸
❼
Male quick-connect,
insert and twist to lock
❹
❻
❺
Air input
hose
Power cord
Adapter
assembly
Foot pedal
assembly
Blue test
fluid
