Dispenser Hookup
❶ Connect the air input hose to a plant air source.
Set plant air supply within 80 to 100 psi (5.5 to 6.9
bar). Where required, use an EFD five-micron
filter regulator #2000F755 (see Warranty).
❷ Attach the air input hose coupling to the dispenser.
Pull back metal ring to attach to dispenser.
❸ Plug in the polarized, foot pedal connector.

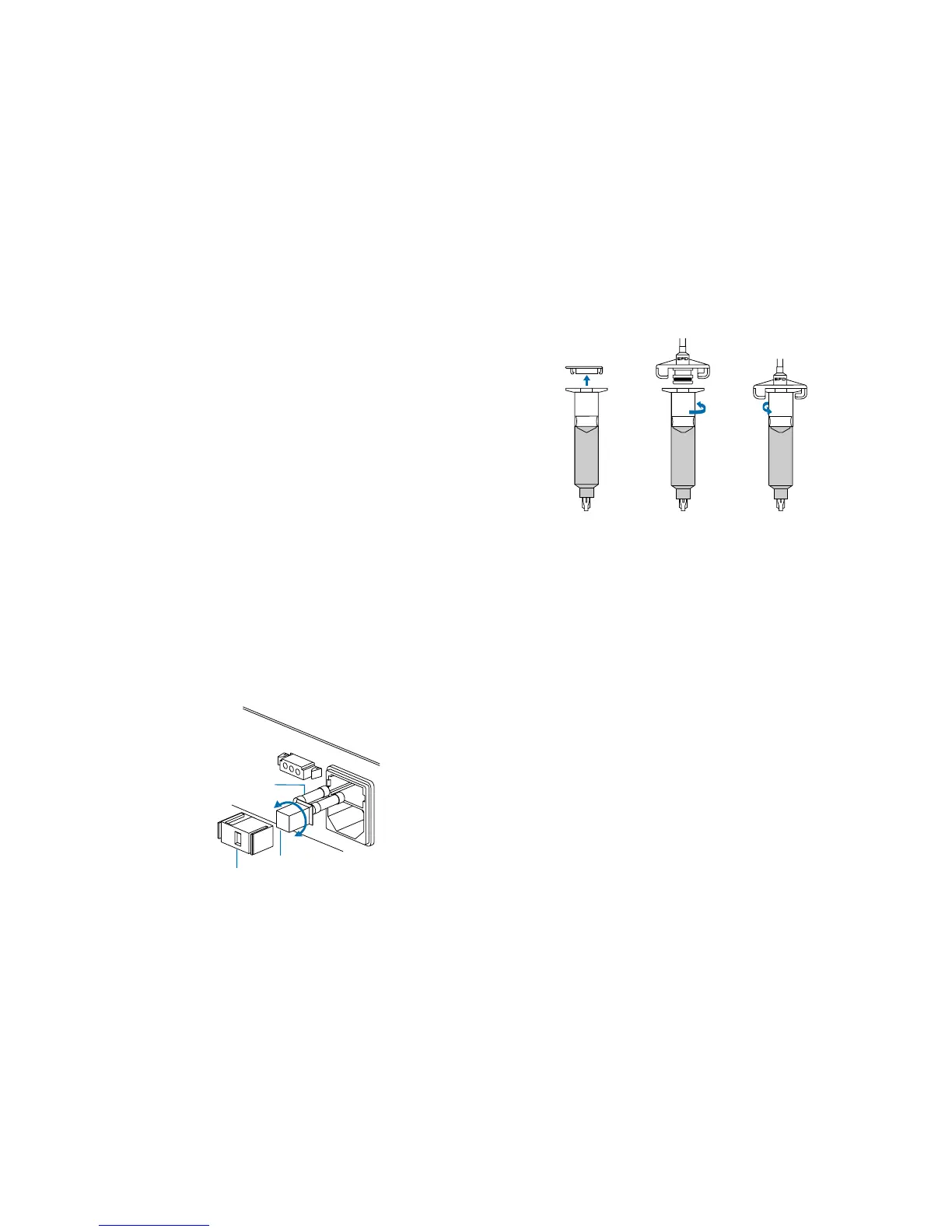

❹ Check the voltage label on the input voltage
selector cartridge. To change the voltage,
remove the voltage selector from the cartridge,
rotate it and position the correct voltage to show
through the cartridge window. Replace the
cartridge into the power cord receptacle and
insure that both sides snap securely into position.
Install the power cord.
Spare Fuse
Cartridge Window
(check voltage indicated)
Voltage Value
❺ Attach the 10cc barrel prefilled with blue,
nontoxic test fluid (included with the
dispenser) to the 10cc adapter head.
❻ Take the 10cc barrel adapter assembly
(#5150 on the adapter head) and insert the
black, male quick-connect into the air output
fitting on the front panel and turn clockwise
to lock. Place the barrel in the barrel stand.
❼ During the initial testing, you will not use the
vacuum control. Keep this control shutoff
(turned completely clockwise—do not force).
220
120
100
Note: The dispenser is shipped with the fuse
cartridge set for 120 VAC input.
