Efergy E2 Instruction Manual

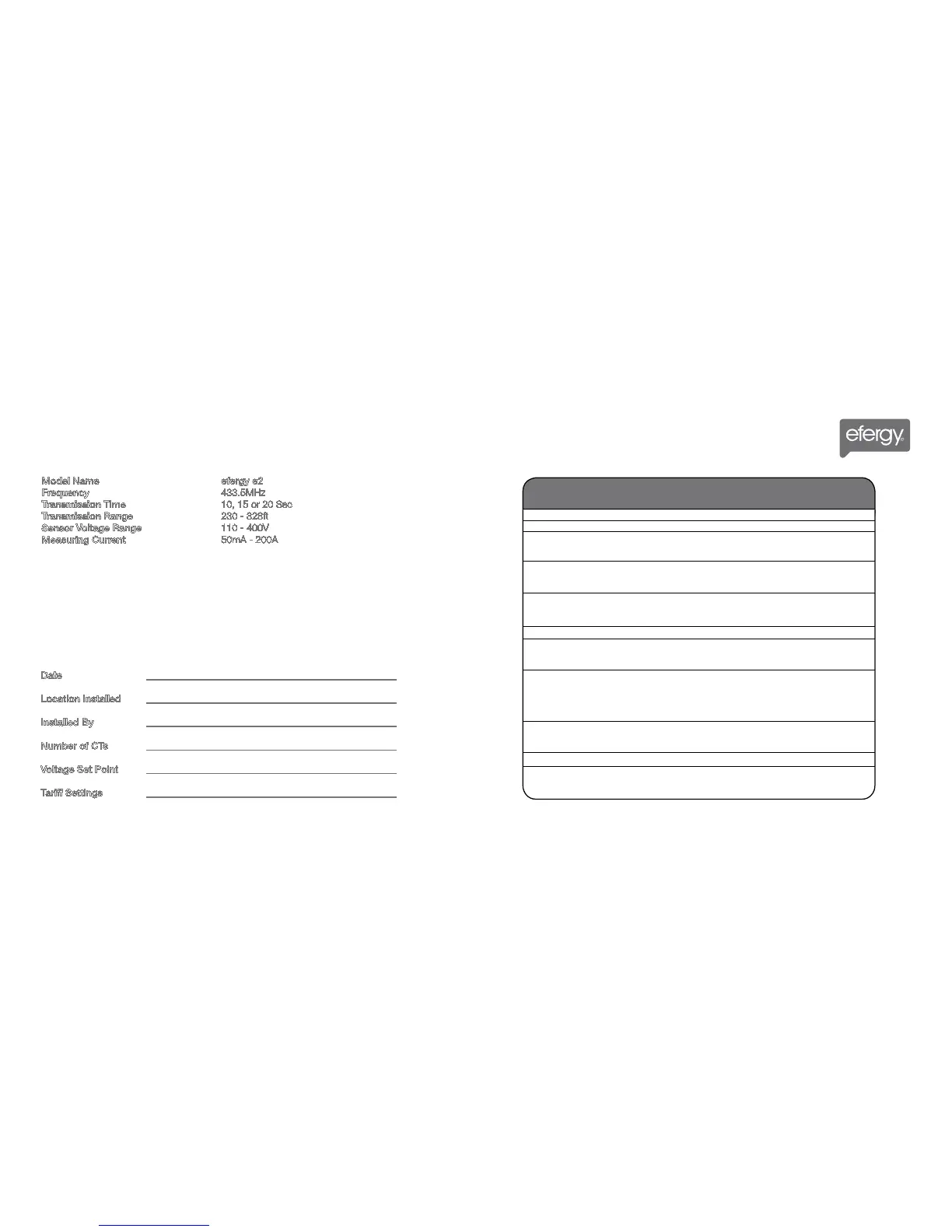

TECHNICAL INFORMATION TECHNICAL NOTES FOR ELECTRICIANS
2221
INSTALLATION NOTES
Date ___________________________________________________
Location Installed ___________________________________________________
Installed By ___________________________________________________
Number of CTs ___________________________________________________
Voltage Set Point ___________________________________________________
Tariff Settings ___________________________________________________
Model Name
Frequency
Transmission Time
Transmission Range
Sensor Voltage Range
Measuring Current
efergy e2
433.5MHz
10, 15 or 20 Sec
230 - 328ft
110 - 400V
50mA - 200A
120/240 Volts, 3 Wire, Single Phase ( Typical Residential Se rvice in US & Canada)
240V, 3 Wire, Single Phase
120/ 208V, 3 Wire, 2 Phases of a 3 Phase 120/208V
Three wir
es phase 1 live, phase 2 live, Grid 120V is live to neutral and 208 is phase
to phase. Assume unbalanced load. 2 CT Sensors
120/ 208V, 4 Wire, 3 Phases, Balanced Load
Three phase live, phase 2 live - Neutral, where 120V is phase to neutral and 208V
is phase to phase. 1 CT Sensor
120/ 208V, 4 Wire, 3 Phases, Unbalanced Load
The display does not recognize unbalanced loads in this configuration. The degr
ee
of accuracy will be relative to the amount of unbalanced current. 3 CT Sensors
208V, 3 Phase Delta Balanced Load
277/ 480V, 4
Wire, 3 Phases, Balanced Load
Three phase live + neutral, where 277V is phase to neutral and 480V is phase to
phase. 1CT Sensor
277/ 480V, 4
Wire, 3 Phases, Unbalanced Load
Three phase live + neutral, where 277V is phase to neutral and 480V is phase to
phase. The display does not recognize unbalanced loads in this configuration.
The degree of accuracy will be
relative to the amount of unbalanced current.
3 CT Sensors
230/ 400V, 4
Wire, 3 Phases, Balanced Load
Three phase live + neutral, where 230V is phase to neutral and 400V is phase to
phase.
1CT Sensor
347/ 575V, 3 Phase, Balanced Load. 1CT Sensor
347/ 575V, 3 Phase, Unbalanced Load.
The display does not recognize unbalanced loads in this configuration. The degree
of accuracy will be relative to the amount of unbalanced current. 3 CT Sensors
120
240
120
208
120
208
480
277
400
580
350
ELECTRICITY SYSTEM VOLT SETTING
Shop for Power Metering products online at:
1.877.766.5412
www.PowerMeterStore.ca

Efergy E2 Specifications

Transmission

frequency	433.52 MHz
transmission time	6s, 12s, 18s
transmission range	40m-70m

Voltage and Current

voltage range (in the sensor)	110V-400V
measuring current	50mA-95A
accuracy	>90%
