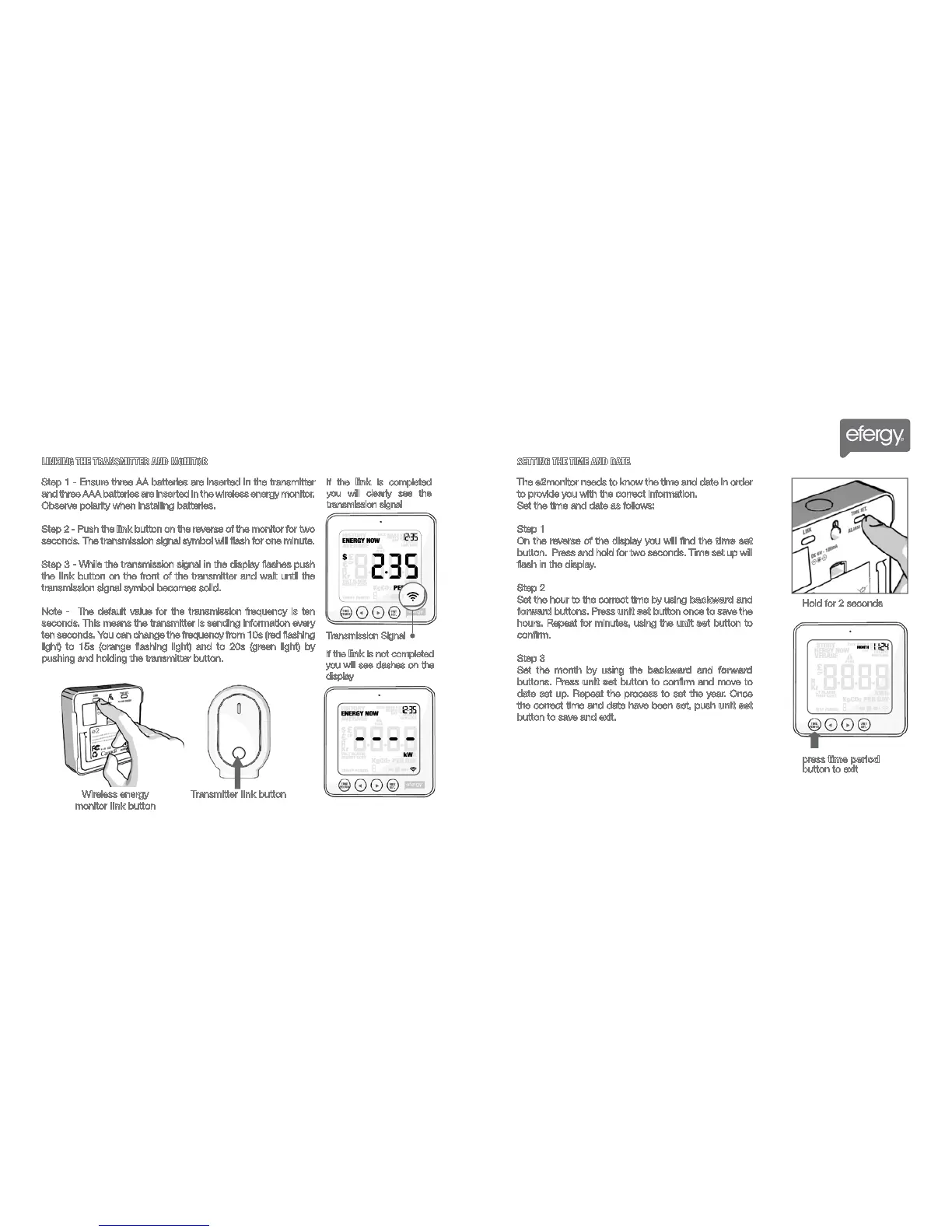

Step 1 - Ensure three AA batteries are inserted in the transmitter
and three AAA batteries are inserted in the wireless energy monitor.
Observe polarity when installing batteries.
Step 2 - Push the link button on the reverse of the monitor for two
seconds. The transmission signal symbol will flash for one minute.
Step 3 - While the transmission signal in the display flashes push
the link button on the front of the transmitter and wait until the
transmission signal symbol becomes solid.
Note - The default value for the transmission frequency is ten
seconds. This means the transmitter is sending information every
ten seconds. You can change the frequency from 10s (red flashing
light) to 15s (orange flashing light) and to 20s (green light) by
pushing and holding the transmitter button.
If the link is completed
you will clearly see the
transmission signal
If the link is not completed
you will see dashes on the
display
Transmission Signal
Wireless energy
monitor link button
The e2monitor needs to know the time and date in order
to provide you with the correct information.
Set the time and date as follows:
Step 1
On the reverse of the display you will find the time set
button. Press and hold for two seconds. Time set up will
flash in the display.
Step 2
Set the hour to the correct time by using backward and
forward buttons. Press unit set button once to save the
hours. Repeat for minutes, using the unit set button to
confirm.
Step 3
Set the month by using the backward and forward
buttons. Press unit set button to confirm and move to
date set up. Repeat the process to set the year. Once
the correct time and date have been set, push unit set
button to save and exit.
Hold for 2 seconds
press time period
button to exit
