Effekta MTD 700 - Page 29

UPS MTD 700 / 1000 / 1500 / 2000 / 3000
Device Description of UPS
MTD Series
29
1 UPS output
2 Mains input
3 Circuit breaker for mains input
4 Communication interface

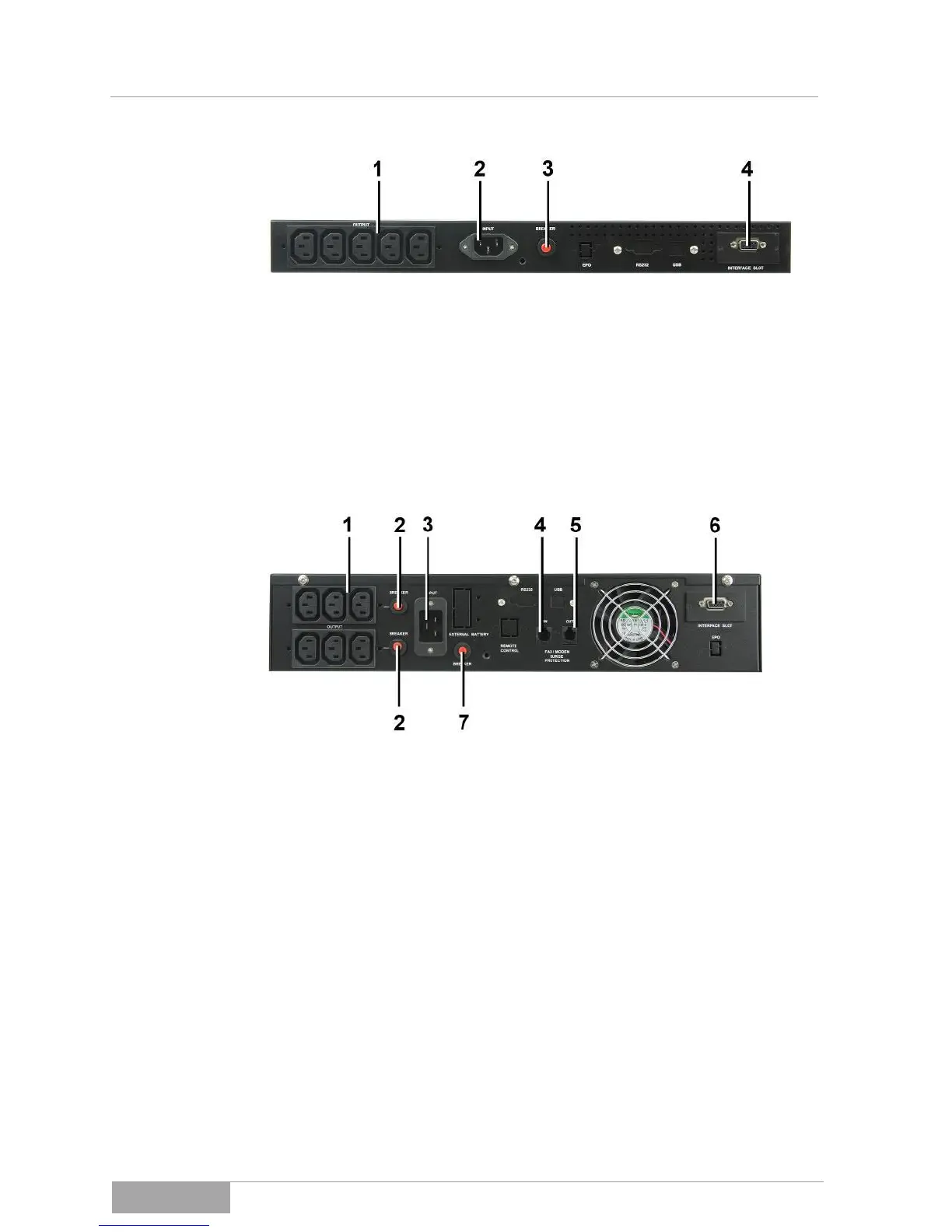

Fig. 3-2 - 4 Back view of MTD 700RM, 1000RM, 1500RM
1 UPS output
2 Circuit breaker for mains output
3 Mains input
4 Input over-voltage protection (RJ 45)
5 Output over-voltage protection (RJ 45)
6 Communication interface
7 Circuit breaker for mains input
Fig. 3-2 - 5 Back view of MTD 2000RM
