UPS MTD 700 / 1000 / 1500 / 2000 / 3000
Installation and Connection of the
UPS
MTD Series
38

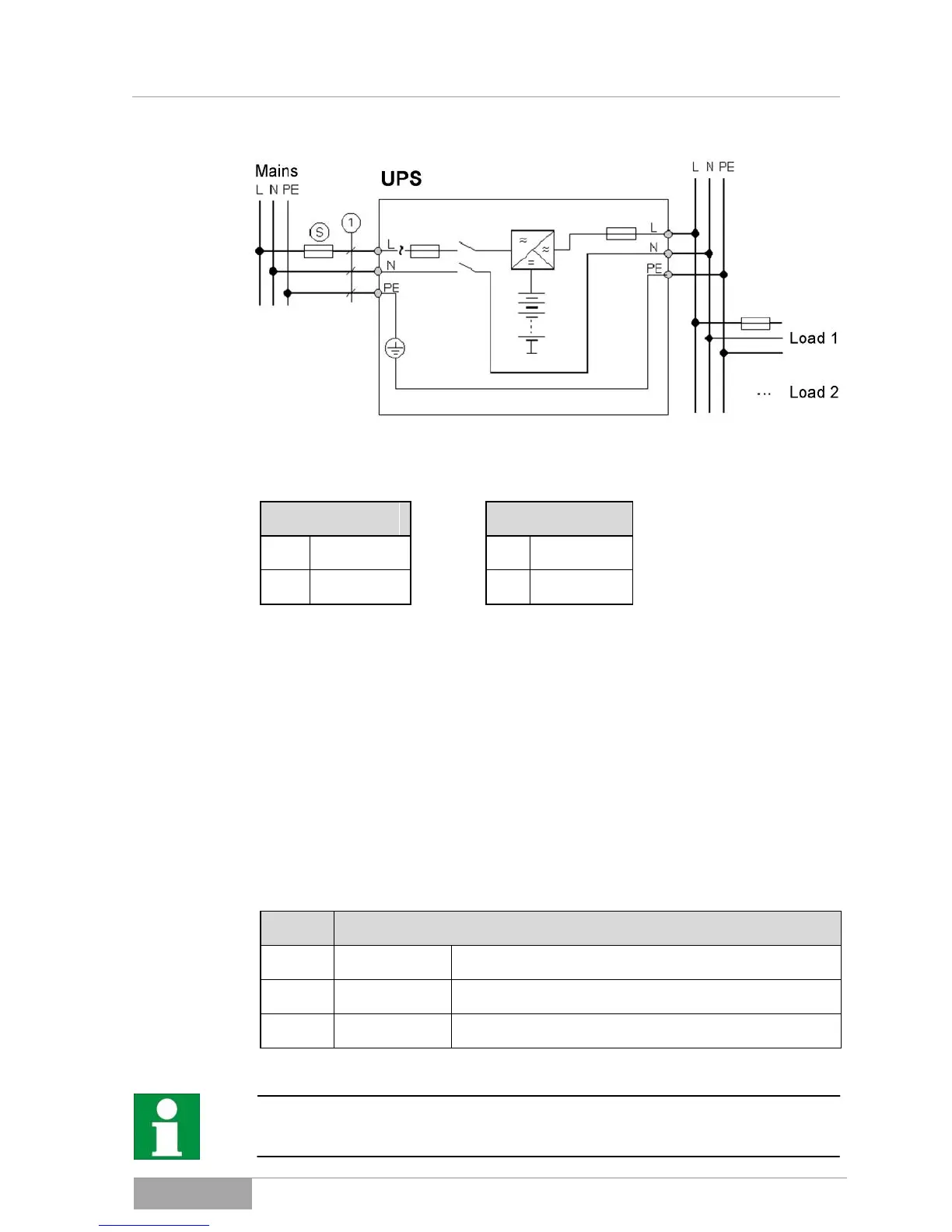

Fig. 6-1 - 1 Connection of the UPS and loads
MTD series
MTD 3000
S:
10 A
S:
16 A
1:
0.75 mm
2
1:
1.5 mm
2
6.2 Communication Connection of the UPS
To exchange data with the UPS, a comfortable communication interface is
available.
6.2.1 Communication connection RS232
For the connection, only use the connection cable listed in the chapter
"Accessories" (1 : 1).
Pin
Assignment
2
RS232
Receiving circuit Rx or shutdown SD
3
RS232
Transmission line Tx
5
RS232
GND
The communication interface is completely galvanically isolated.
