Effer DMU 2000 - Wiring and Component Verification; Checking Wiring Functionality and Simulating Components

Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
THE POWER OF PERFORMANCE
67
17. CHECKING WIRING FUNCTIONALITY
If a fault occurs it can be useful to simulate the operation of certain wiring components, to find out if
the origin of the problem is in wiring or in a single component (microswitch, position of lever on control
bank, pressure sensors, angular sensors).

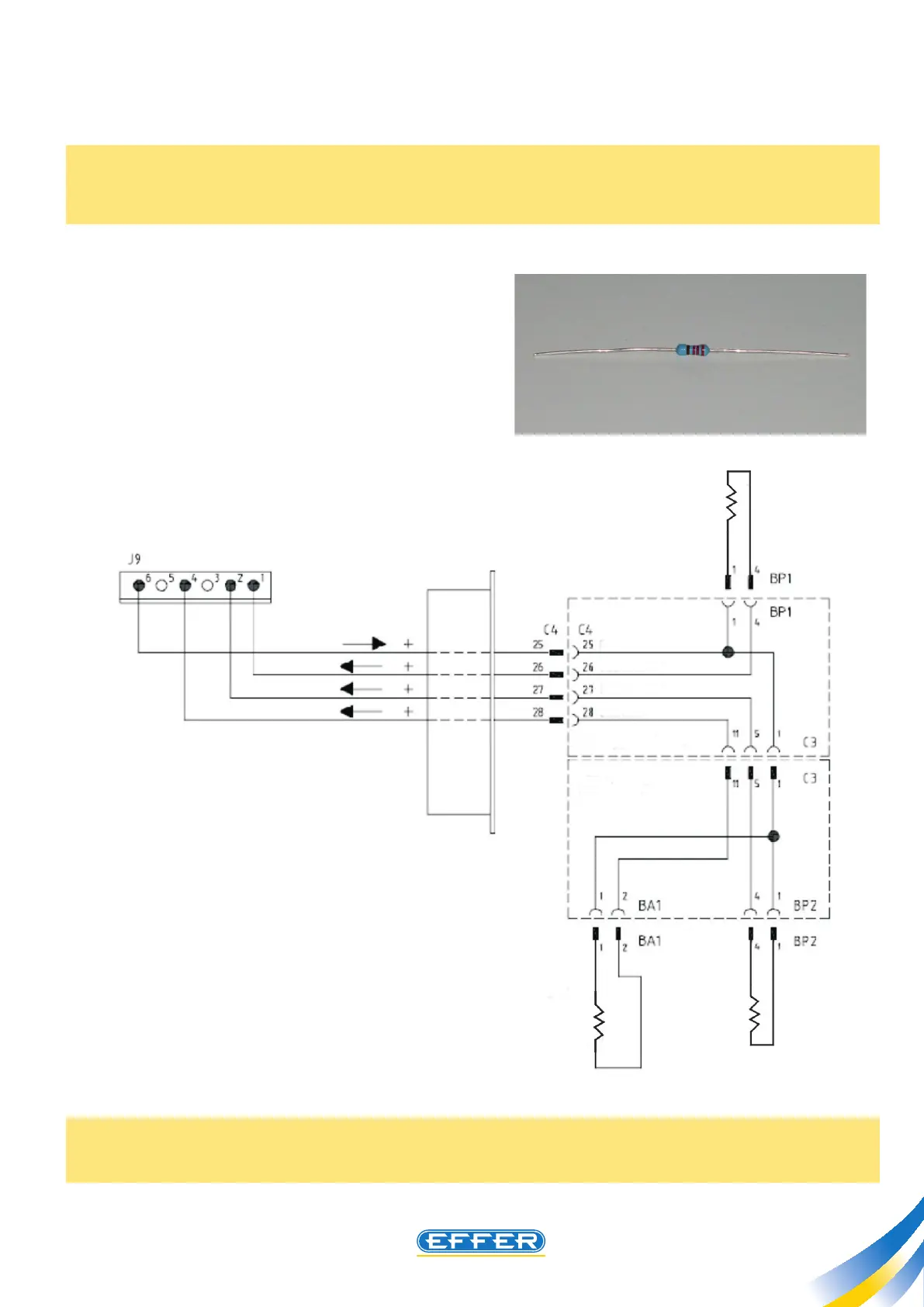

To determine if the fault is located in pressure sensors or angular sensors, rather than in the wiring,
you must use a 2k2 Ohm (2200 Ohm) heated
wire of at least 3 Watt. This heated wire must be
included in connectors instead of sensors that
should be checked.
NOTE: An electric by-pass is useful for diagnostics only.
It is absolutely forbidden to use the crane with an electric by-pass connected.
POSITIVE
SIGNAL BP1
SIGNAL BP2
SIGNAL BA1
“E” Column wiring
Wiring 1° - 2°
boom F1
2K2 W
2K2 W
2K2 W
