NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 2 and/or the PARTS ASSEMBLY on page 3. Use as needed for clarification.
TELESCOPING SQUAT STAND

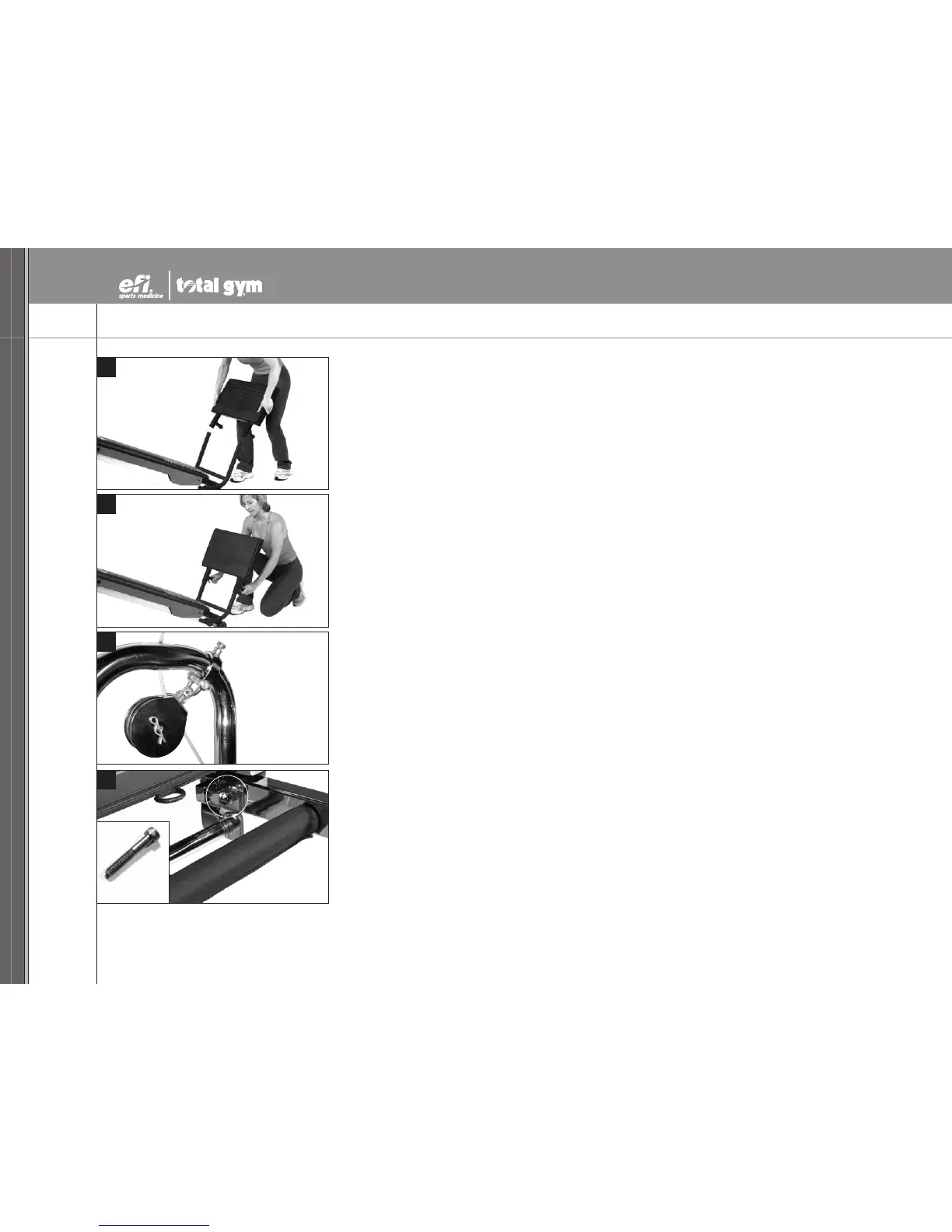

42. Align the Telescoping Squat Stand (H) over the Folding Platform (I) struts until the
Telescoping Squat Stand (H) pins contact the top of the Folding Platform (I) struts.
43. Pull the retractable pins and adjust the Telescoping Squat Stand (H) to the desired height,
then release the pins and raise or lower the Telescoping Squat Stand (H) until both pins
engage in one of the three adjustment holes in the Folding Platform (I) struts.
PULLEY LOCATOR BRACKETS
44. The Pulley Locator Brackets (C) are designed to adjust easily. Pull back on the pin, move the
Pulley Locator Bracket (C) to the desired position on the LAT Bars (B) and allow the pin to
engage the slotted hole. You should rotate the pulley toward the center of the LAT Bar as
shown when moving the Pulley Locator Bracket (C) around the bends.
RAIL LOCK & SCREW (OPTIONAL)
45.
If you intend to use your PowerTower
TM
to do plyometrics at high inclines, and you do not intend
to fold the PowerTower for storage often, you may wish to use this rail lock feature. Unfold the
PowerTower, sit on the Glideboard (G), and screw in the long Rail Lock Screw (KK) (provided in
the Hardware Packet) finger tight in to the Rail Lock (V). To remove it for storage, reverse the
process.
Rail Lock
Rail Lock Screw
