NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 2 and/or the PARTS ASSEMBLY on page 3. Use as needed for clarification.
INSTALLING LAT BARS (CONTINUED)

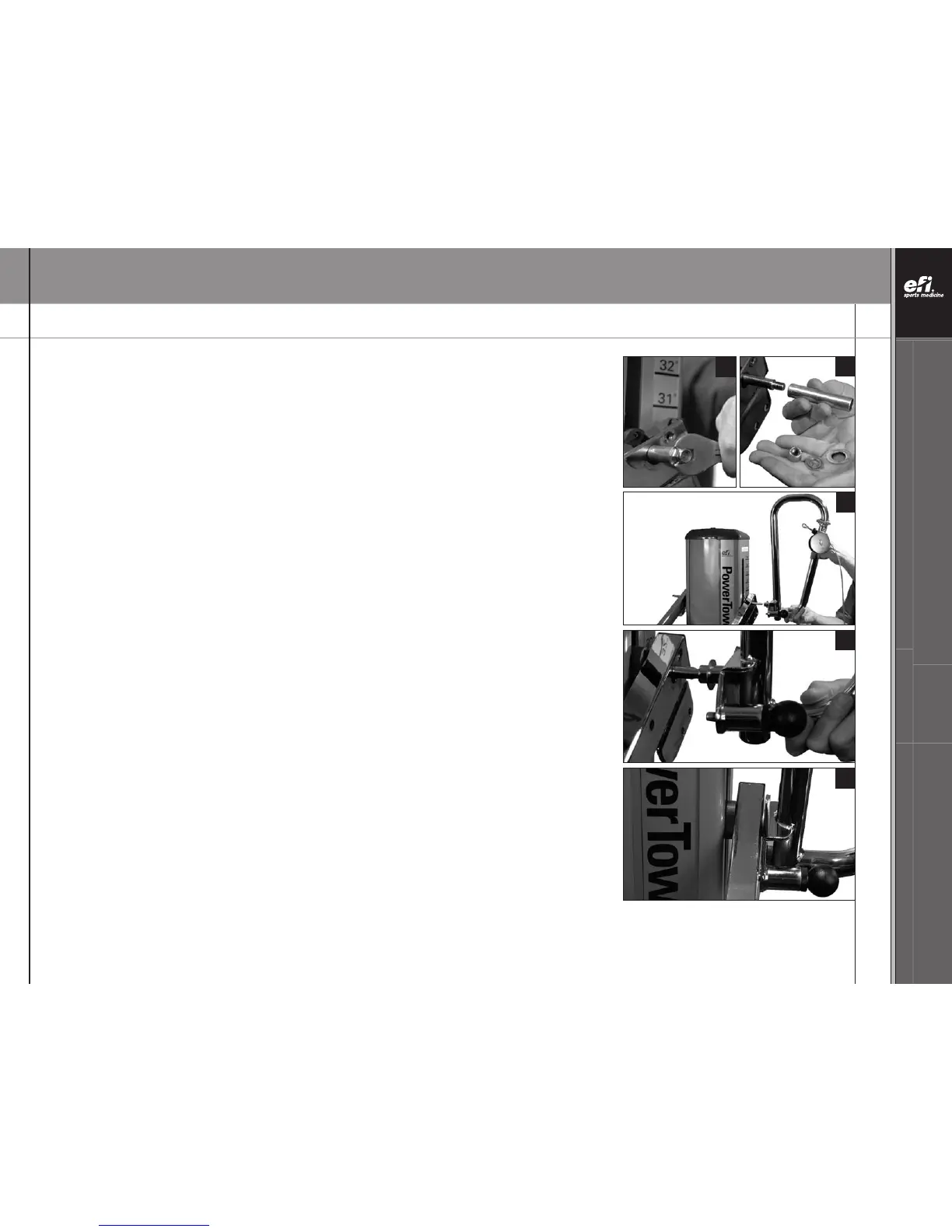

21.
Use the other Wrench (GG) to loosen the remaining nyloc nut by turning it counterclockwise.
22. Hold the Upper Rail (X) with one hand. Remove the shipping sleeve from the Tower
Crossbar (Y) with the other hand. Set the shipping sleeve aside.
Now that the shipping sleeves have been removed, you are ready to attach the first
LAT Bar (B). You may discard the shipping sleeves or retain them in the event you need
to ship your PowerTower
TM
in the future.
POSITIONING THE LAT BARS - PHASE 2
23.
To position the first LAT Bar (B) for mounting, make sure the long, vertical side of the
LAT Bar (B) aligns closest to the Tower (A). (The slotted holes face the back of the
PowerTower, the black knob on the LAT Bar (B) faces the Glideboard (G).)
24. Slide a Bronze Washer (HH) onto the LAT Bar (B) cylinder. Stand beside the Tower (A) and
align the LAT Bar (B) cylinder with the Tower Crossbar (Y).
REMINDER: Keep the Tower Crossbar (Y) centered during assembly.
25. Slide the LAT Bar (B) cylinder onto the Tower Crossbar (Y) until it is securely seated on the
Upper Rail (X).
HINT: You will need to lift the Upper Rail (X) to slide the LAT Bar (B) cylinder inside the hole
in the Upper Rail (X).
21
23
24
25
22
