8
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 2 and/or the PARTS ASSEMBLY on page 3. Use as needed for clarification.
PARTS ASSEMBLY (CONTINUED)

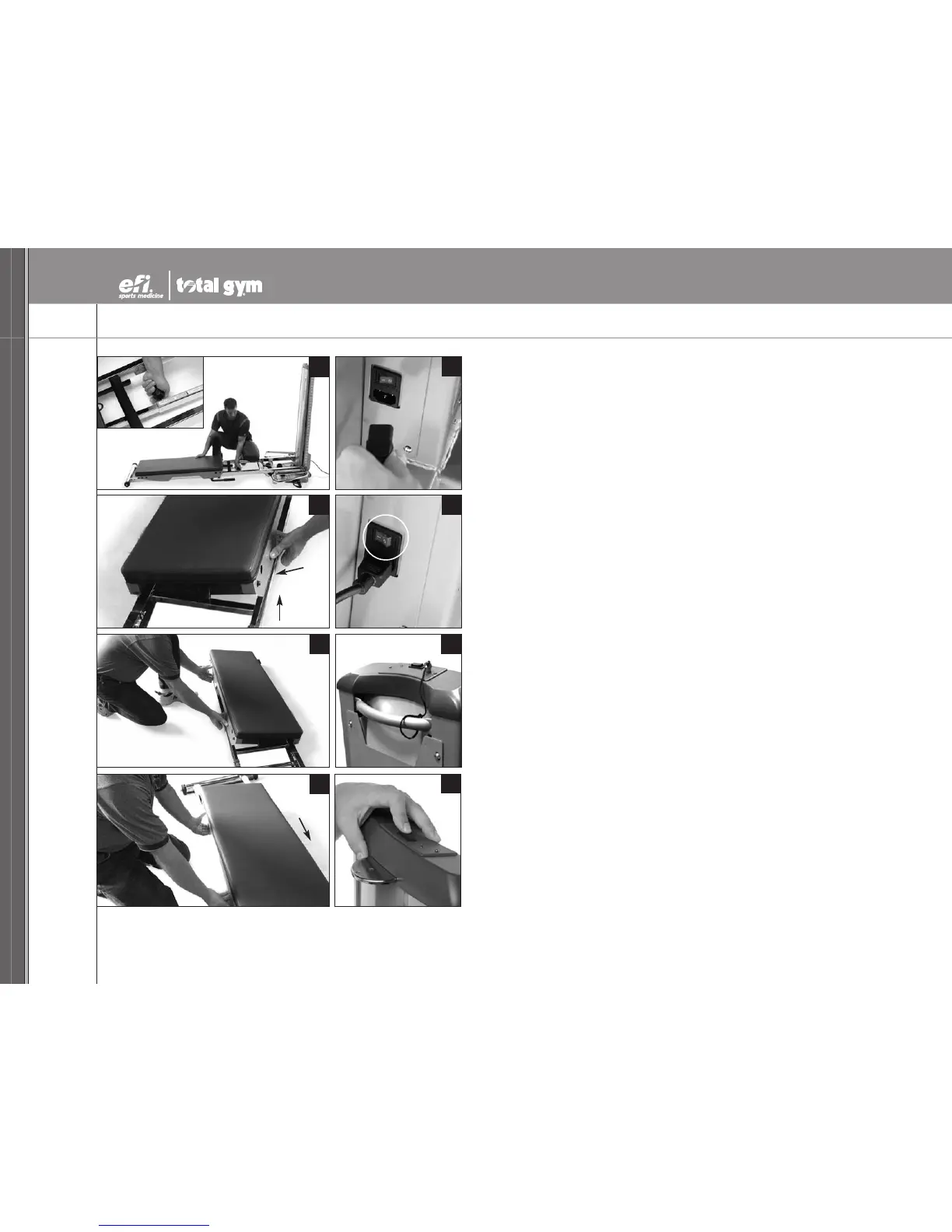

5.
Engage and tighten the Support Strut Knob (M). You need to lean
the tower backward slightly to engage the pin.
IMPORTANT SAFETY NOTICE: The Support Strut Knob (M) must be
engaged and tightened during PowerTower
TM
use.
6. Remove the packing foam from the four wheels. To reposition the
Glideboard (G) for use, kneel beside the Glideboard (G). Lift and
pull one side of the metal Glideboard Wheel Housings (L) away
from the Rails (K, X).
7. Lift the opposite side of the Glideboard (G) until the wheels lift
completely off the Rails (K, X).
8. Move the Glideboard (G) about 6 inches up the Rails (K, X)
toward the Tower (A), until the metal stop on the underside of
the Glideboard (G) rests above the rubber bumper. Lower the
Glideboard (G) and pull the Glideboard Wheel Housings (L) out
as you lower the Glideboard (G) back into place.
9. Connect the Power Cord (S) to the back of the PowerTower.
Then connect the PowerTower to an appropriate receptacle.
10. Turn on the PowerTower with the On/Off Switch (T) at the bottom
back of the Tower (A).
11. Remove the Safety Key (ZX) from the Hardware Packet. Use the
loop in the Safety Key (ZX) lanyard to tie it to the Tower’s (A)
back handle. Insert the Safety Key (ZX) into the hole on top of
the Tower (A). Your PowerTower will not operate if the Safety Key
(ZX) is not in place.
12. Raise the Rails (K, X) to the desired level by using the Up/Down
Switch (ZY) on top of the Tower (A).
3
5
6
7
8
9
10
11
Lift
Pull
12
To Next Page
