14
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 2 and/or the PARTS ASSEMBLY on page 3. Use as needed for clarification.

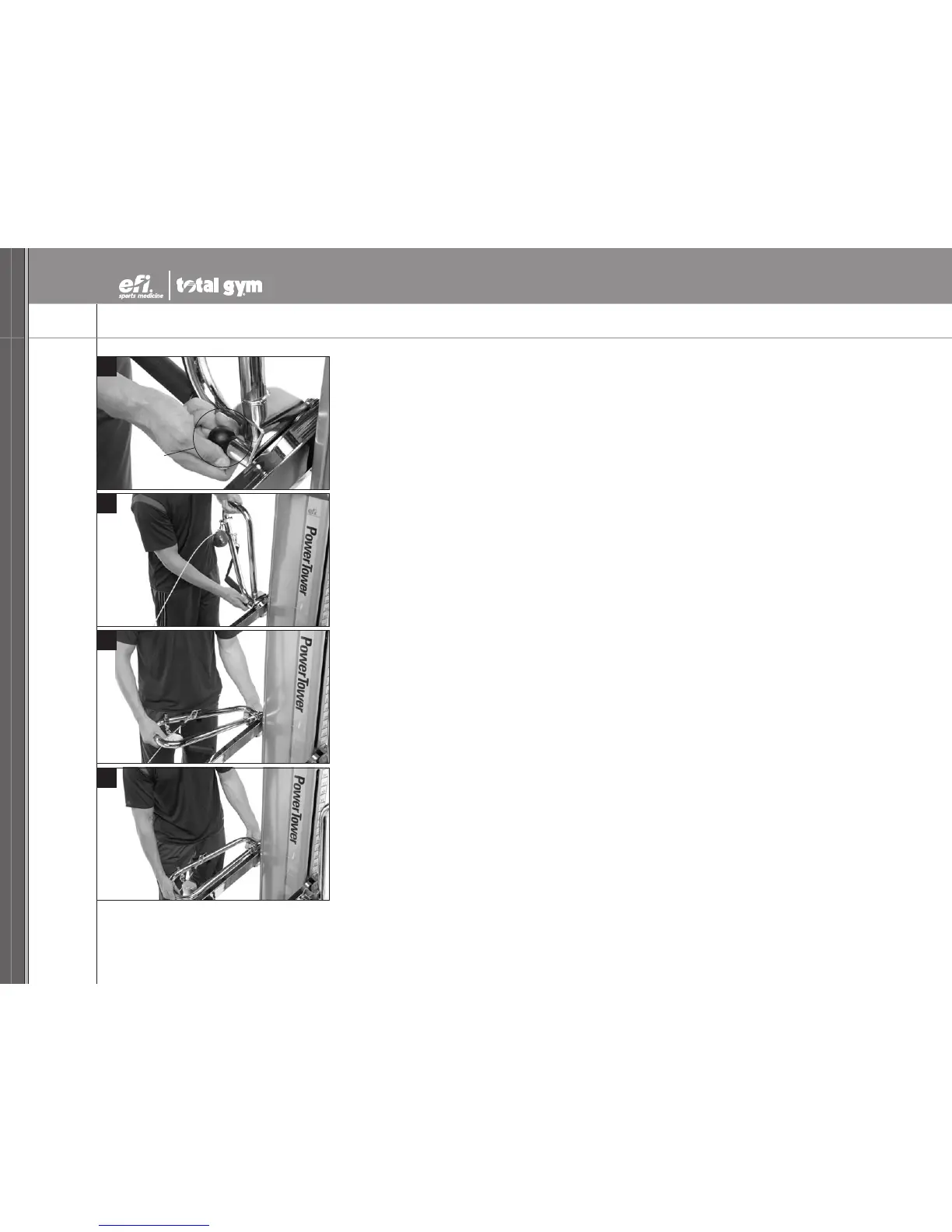

ADJUSTING THE LAT BARS
34. To adjust the LAT Bars (B), pull the retractable knob on the LAT Bar to disengage the Lat Bar
from the Upper Rail (X) and rotate LAT Bars to the desired position. Ensure that the pin on the
retractable knob is properly engaged.
LAT BAR ADJUSTS TO THREE POSITIONS
35. NORMAL USE:
parallel (upright) to the Tower (A), perpendicular to Rails (K,X)
36. PULL-UP POSITION: angled upwards from the Rails (K,X)
37. FOLD UP POSITION: parallel to the Rails (K,X)
Knob
34
35
36
37
