TOTAL GYM
®
POWER TOWER
T
M
OWNER’S GUIDE
OWNER’S GUIDE TOTAL GYM
®
POWER TOWER
TM
800 541 4900 EFISPORTSMEDICINE.COM
13
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 2 and/or the PARTS ASSEMBLY on page 3. Use as needed for clarification.
INSTALLING LAT BARS: ATTACHING THE LAT BAR BRACKET - PHASE 3 (CONTINUED)

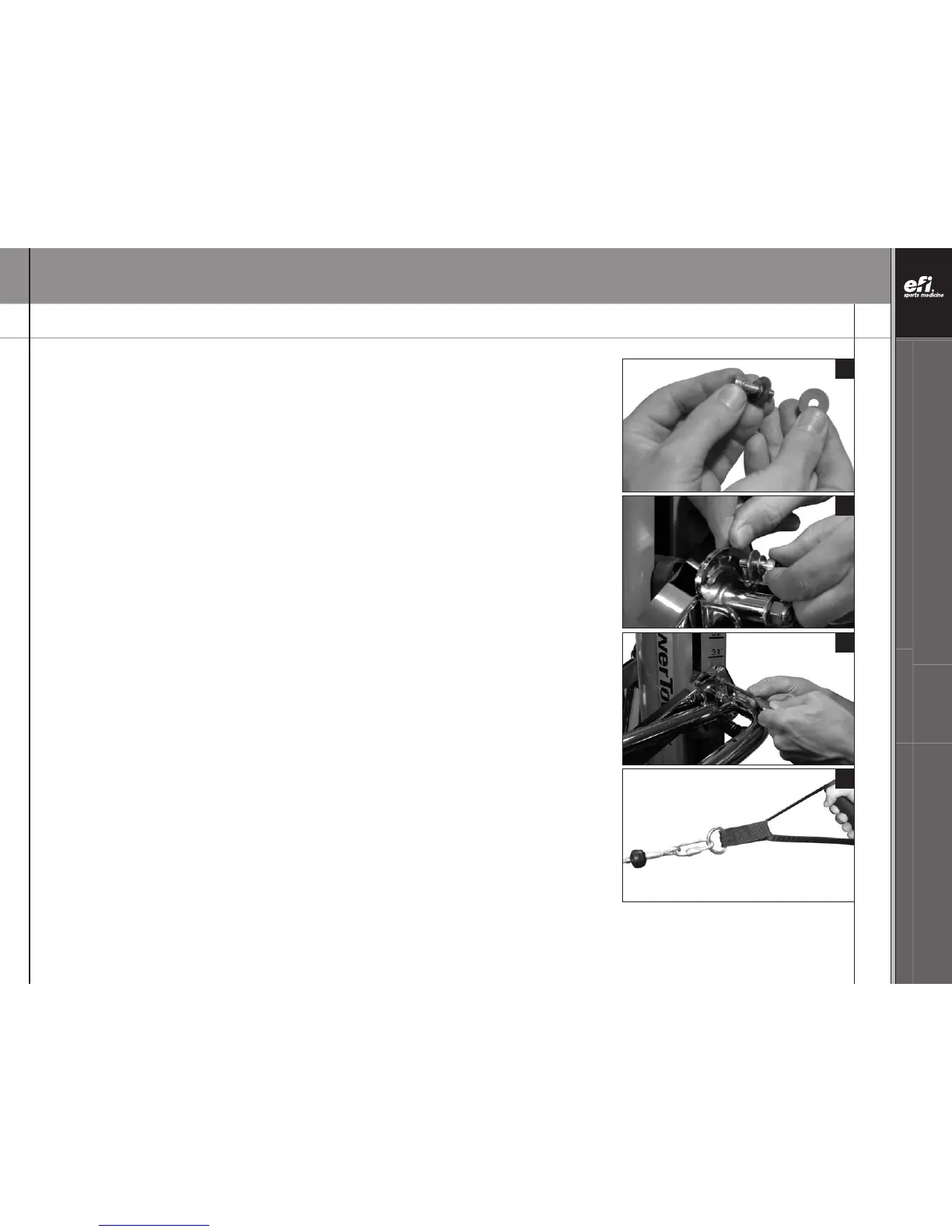

30.
Place a Chrome Washer (II) followed by a Bronze Washer (HH) on a Socket Head Screw (JJ).
31. Feed the Socket Head Screw (JJ) partially through the elongated slot.
Place another Bronze Washer (HH) on the Socket Head Screw (JJ) on the other side of
the bracket.
Thread the Socket Head Screw (JJ) into the hole in the rail. Align the Socket Head Screw (JJ)
with the hole in the Upper Rail (X) inside the LAT Bar (B) bracket. Finger tighten the Socket
Head Screw (JJ)
32. Tighten the Socket Head Screw (JJ) with the hex end handle of the Wrench (GG).
Repeat Phase 3 (Attaching the Lat Bar Bracket) on the opposite side.
33. Attach the Handles (U) to the ends of the Dynamic Arm Pulley System (D) using the
Quick Links (LL).
With these steps completed, your LAT Bars (B) are assembled.
30
31
32
33
