EFT E416P - Page 13

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
12
10. Connect one end of the 8MM water
pipe to the 8-8-8 tee, and the other end to
the extension rod nozzle.

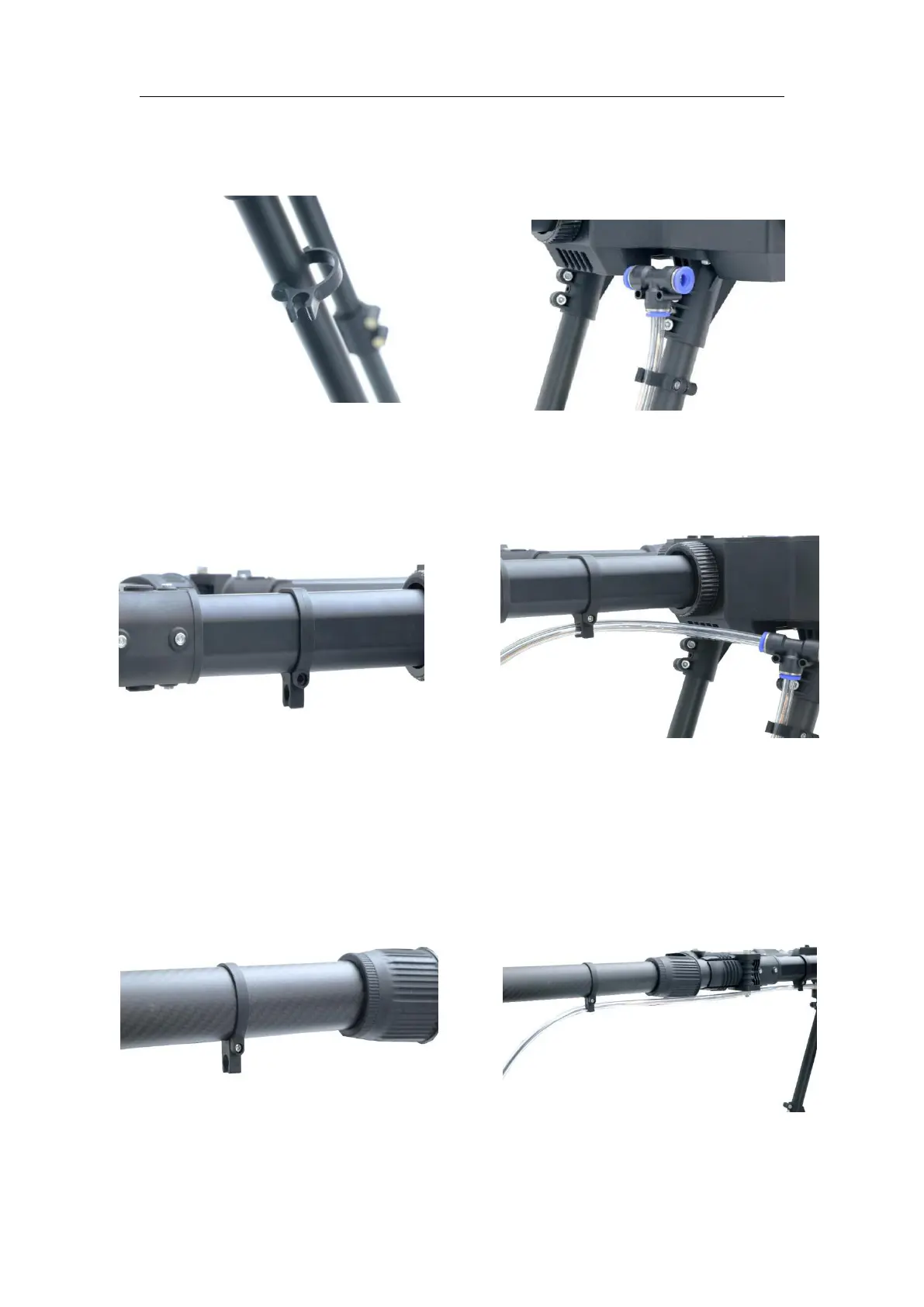

Pic 5
9. Install 40MM water pipe clamp.
5. Install the 20MM water pipe clamp and
fix it with M3*10 self-tapping screws.
6. Use 8MM water pipe, one end is
connected to the water outlet tee of the
water pump, and the other end is installed
with 8-8-8 tee.
Pic 9
Pic 10
Pic 7
7.Install the pipe clamp on the
aluminum tube.
图 6
Pic 6
8. Use 8MM water pipe to connect
8-8-8 tee.
Pic 8
