EFT E416P - Unpacking Inspection; Frame Installation

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
4
Installation
Please bring your own medium-strength screw glue when installing. First complete the
unpacking inspection, and then proceed to the tripod installation, fuselage installation, arm
installation, flight control installation, power system installation, and spray system installation. If
there are other options, install the option at last.
The installation method of E410P/E416P is the same, the following Piconly uses E410P frame an
example E410P/E416P
Unpacking
inspection
1、EFT provides users with the following documents
2、Product Packing List
3、Product installation instructions
It is recommended that users use the "Product Packing List" to check and carefully check
whether the items are missing or damaged. If there is any problem, please contact our company
in time. Read the "Product Installation Instructions" carefully, follow the instructions to complete
the installation step by step, and read the relevant precautions carefully.
Frame installation
Attention To install the fuselage, some parts of the fuselage must be
disassembled first. Please pay attention to the installation position of the removed parts
to facilitate later restoration.

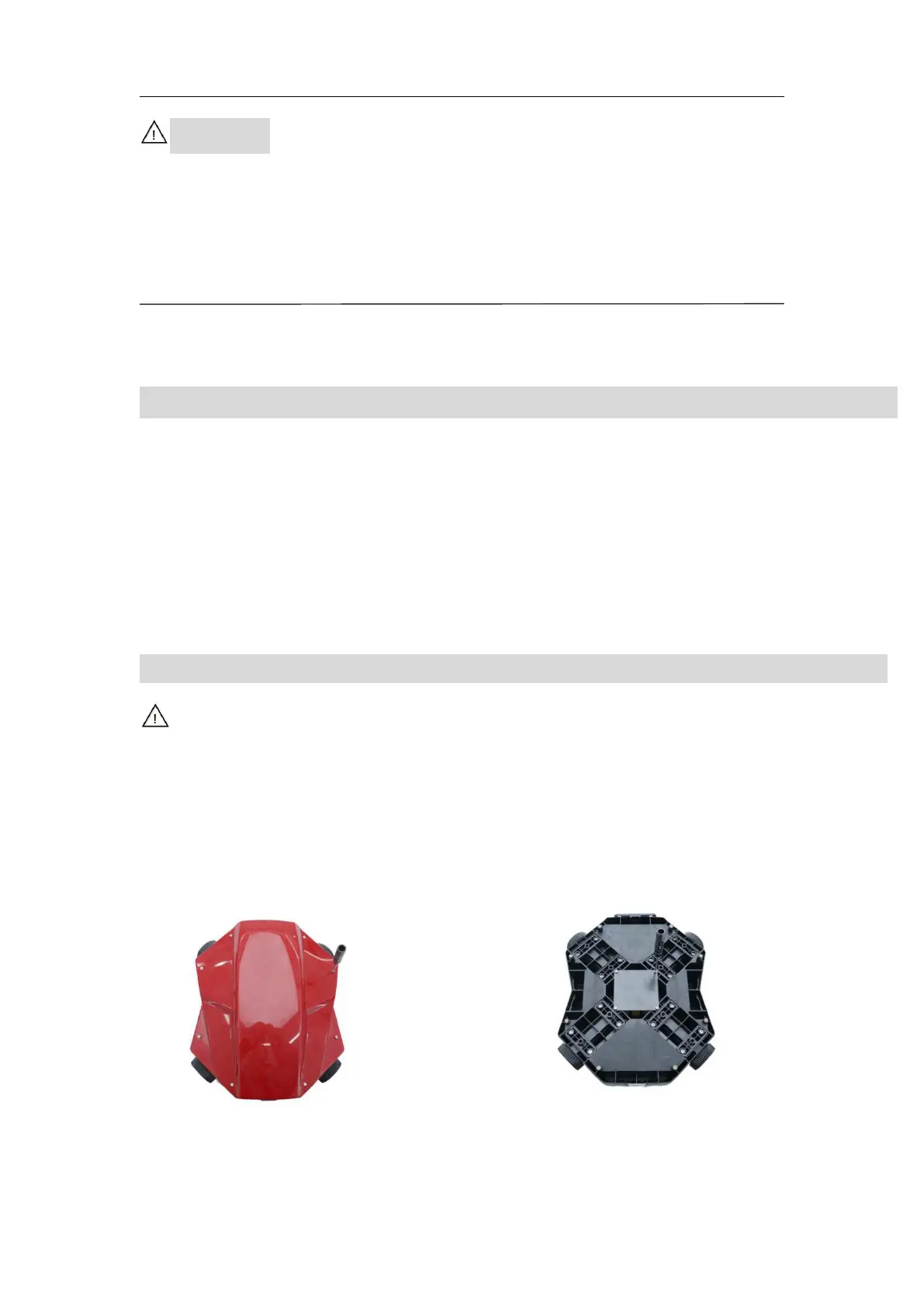

Pic 1
1.Remove the M3*8 fixing screws of the body
cover.
Pic 2
2. Remove the M3*8 fixing screws of the flight
control board mounting plate.
