EFT E416P - RTK Installation

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
19

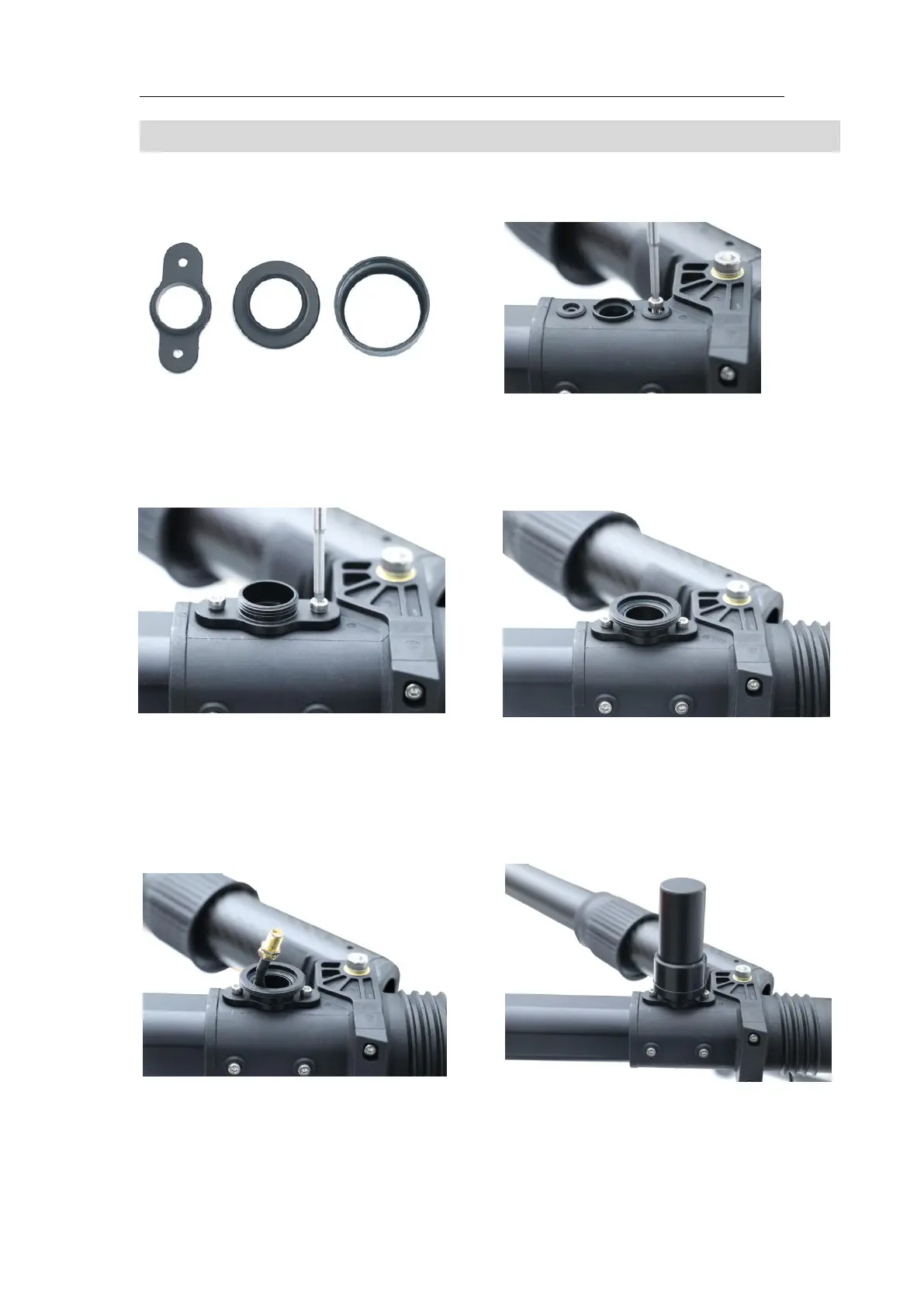

RTK installation
Pic 1
Pic 6
6. Install the RTK external antenna.
5. Pass the RTK antenna through the arm to the
upper end of the wire protection hole. A
straight antenna is required.
Pic 4
Pic 5
4. Install RTK adapter thread.
Pic 3
3. Install the RTK adapter and screw on the
M3*8 screws of the folding part.
Pic 2
1. RTK accessories.
2. Remove the M3*8 screws of the
folding parts.
