EFT E416P - Arm Installation

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
7

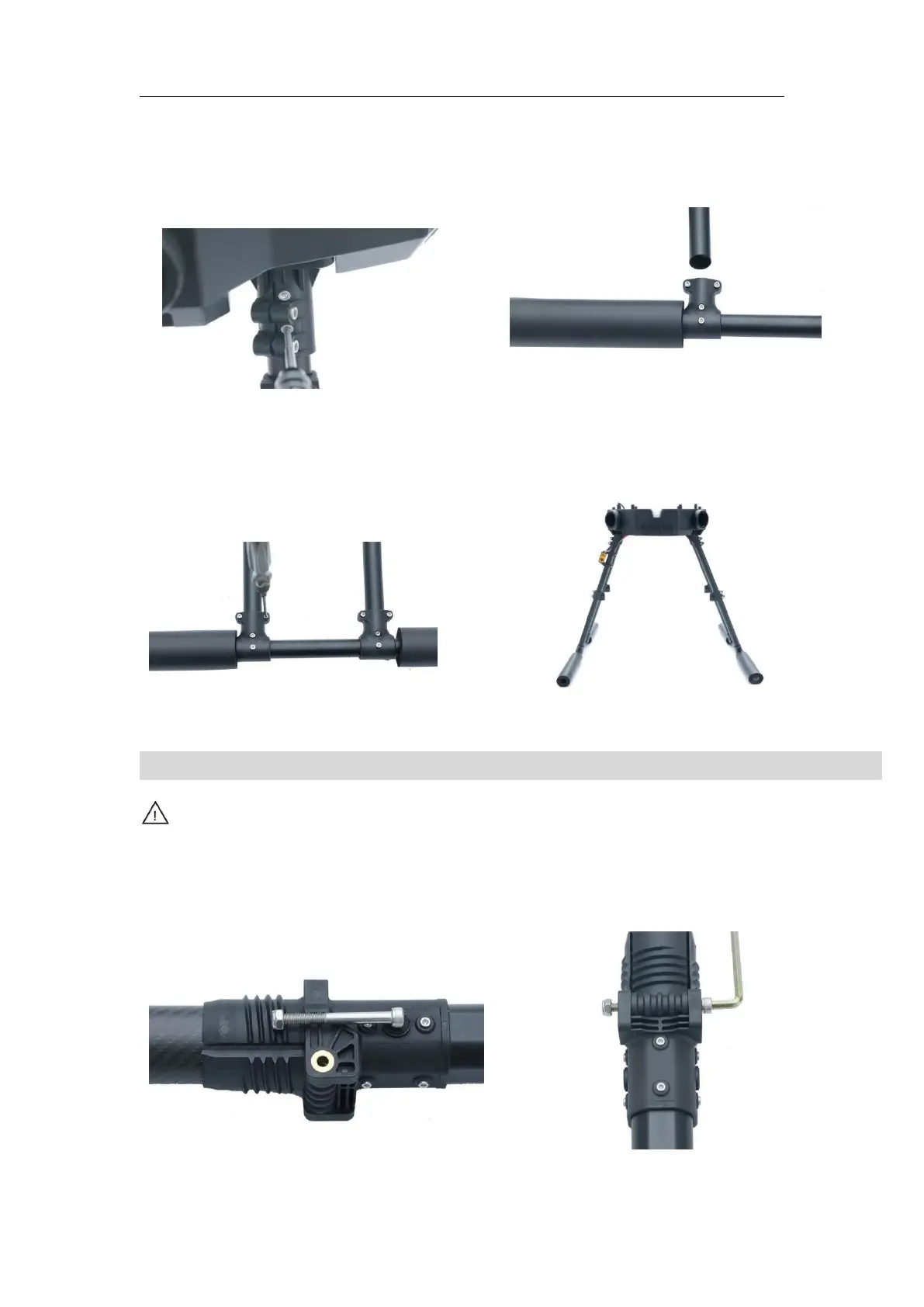

Arm installation
Note： Note The carbon tube of the machine arm comes standard with a
diameter of 40MM, if you have other customization requirements, please contact sales.
Pic 6
Pic 5
Pic 1
Pic 3
3. Fix the limit hole M3*8 screw and the fixing
seat M4*12 screw.
5. Tighten two M3*10 screws and one M3*20
screw.
6. Finished body.
2. Use the included L-shaped wrench for
fixing.
1. Put the carbon tube into the folding part
and fix it with M6*60 screws + locknut.
Pic 4
Pic 2
4. Insert the landing gear into the tee of
landing gear until it reaches the bottom.
