EFT E416P - Page 9

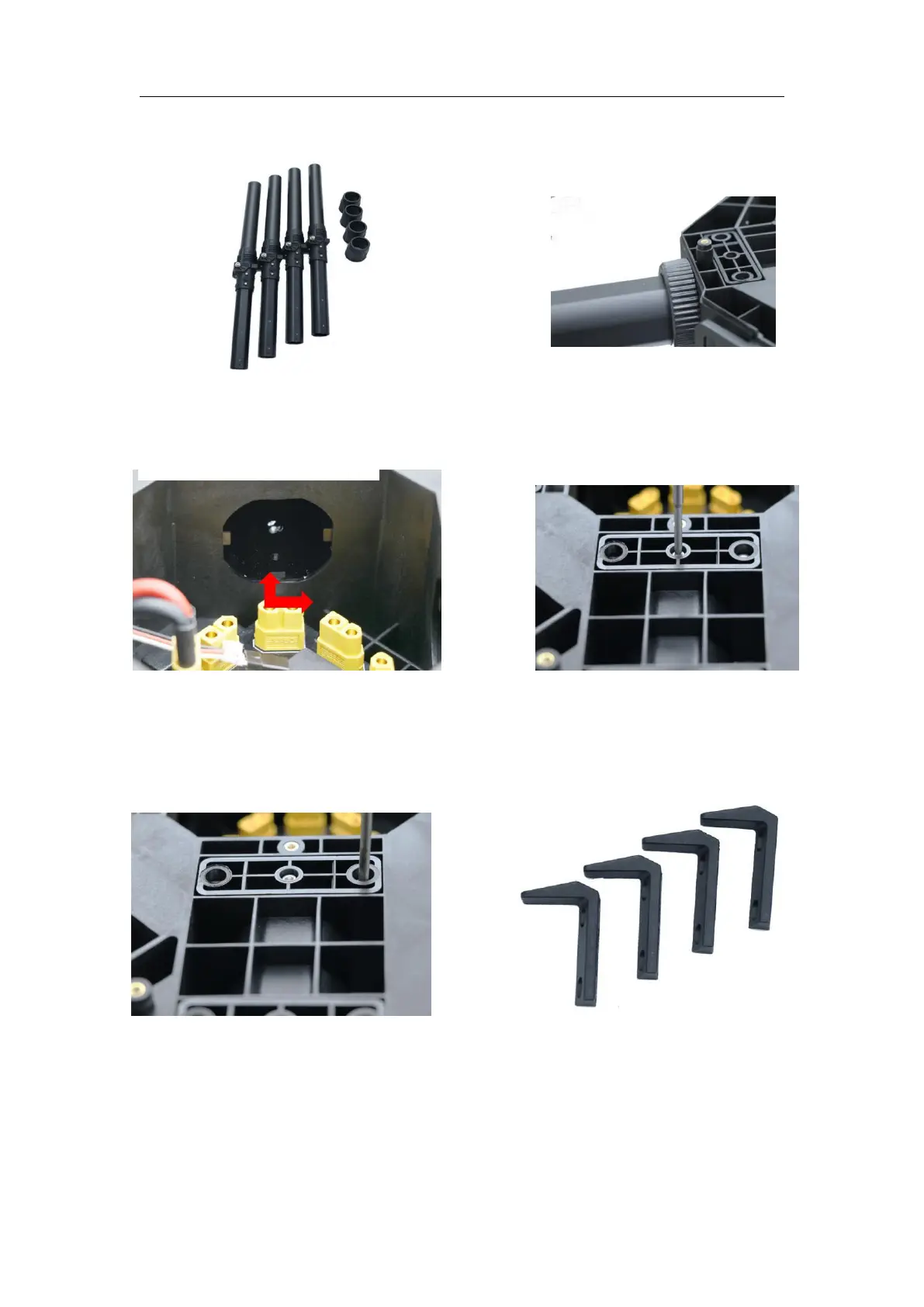

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
8
5. Reach the frame limit.
Body limit
Pic 8
3. Finished arm.
图 2
Pic 5
7. Then fix the locking button M4*20 screw.
Pic 3
4. Put the arm on the body
locking ring.
8. Arm card holder.
6. First fix the locking buckle limit
M3*8 screw.
Pic 7
Pic 6
Pic 4
