EFT E416P - Flight Controller Installation

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
13
Flight controller installation
This manual uses Jiyi K++ flight control.

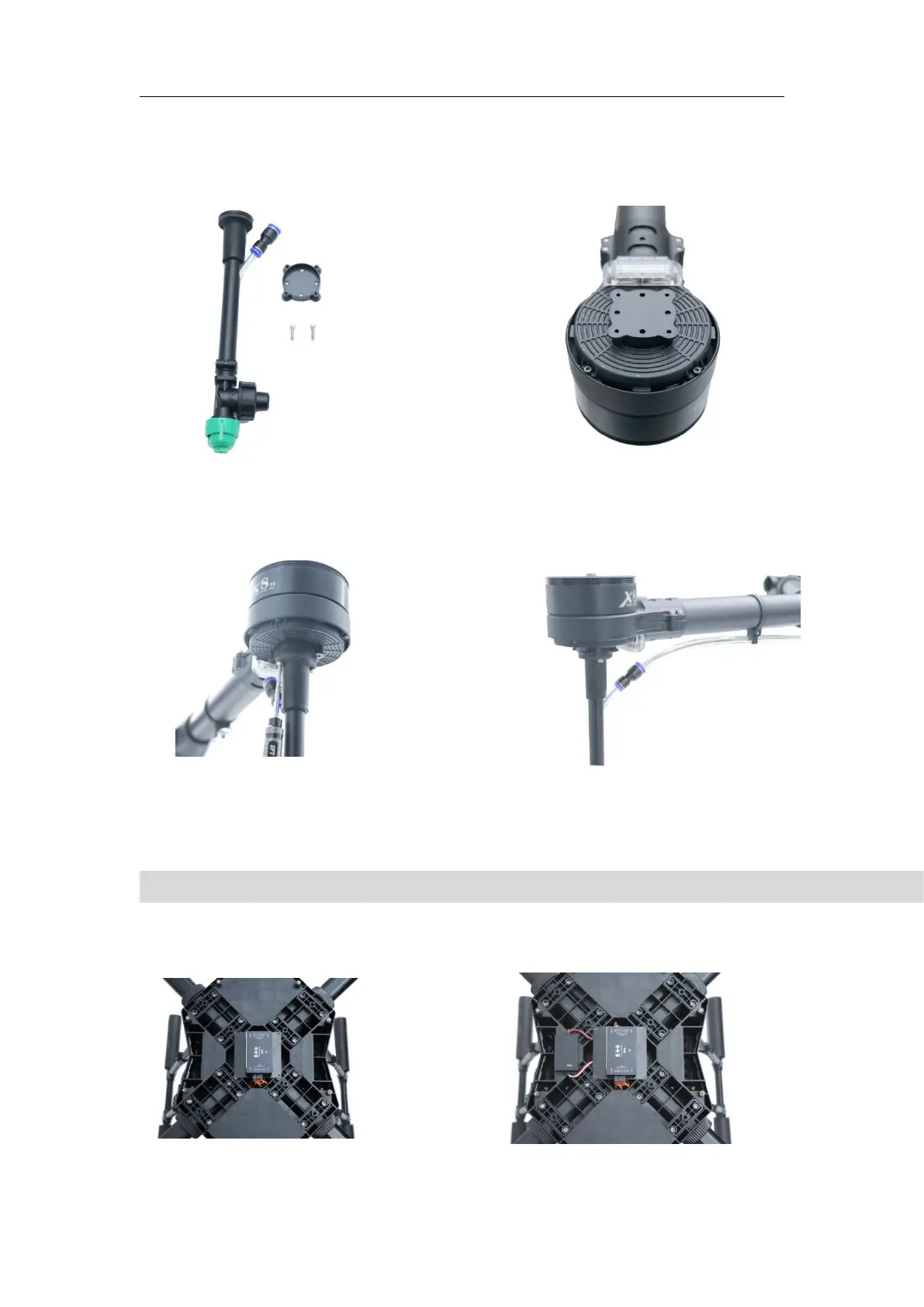

11. Install the extension rod nozzle.
12. Place the nozzle adapter on the
bottom of the motor.
Pic 12
1. Use 3MM glue to install the main control.
Pic 11
2. Install the receiver.
Pic 1
Pic 2
Pic 14
Pic 13
14. Connect the pneumatic head.
13. Use M3*16 screws to install the
extension rod nozzle.
