EFT E416P - Page 19

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved
18
Pic 10
Pic 12

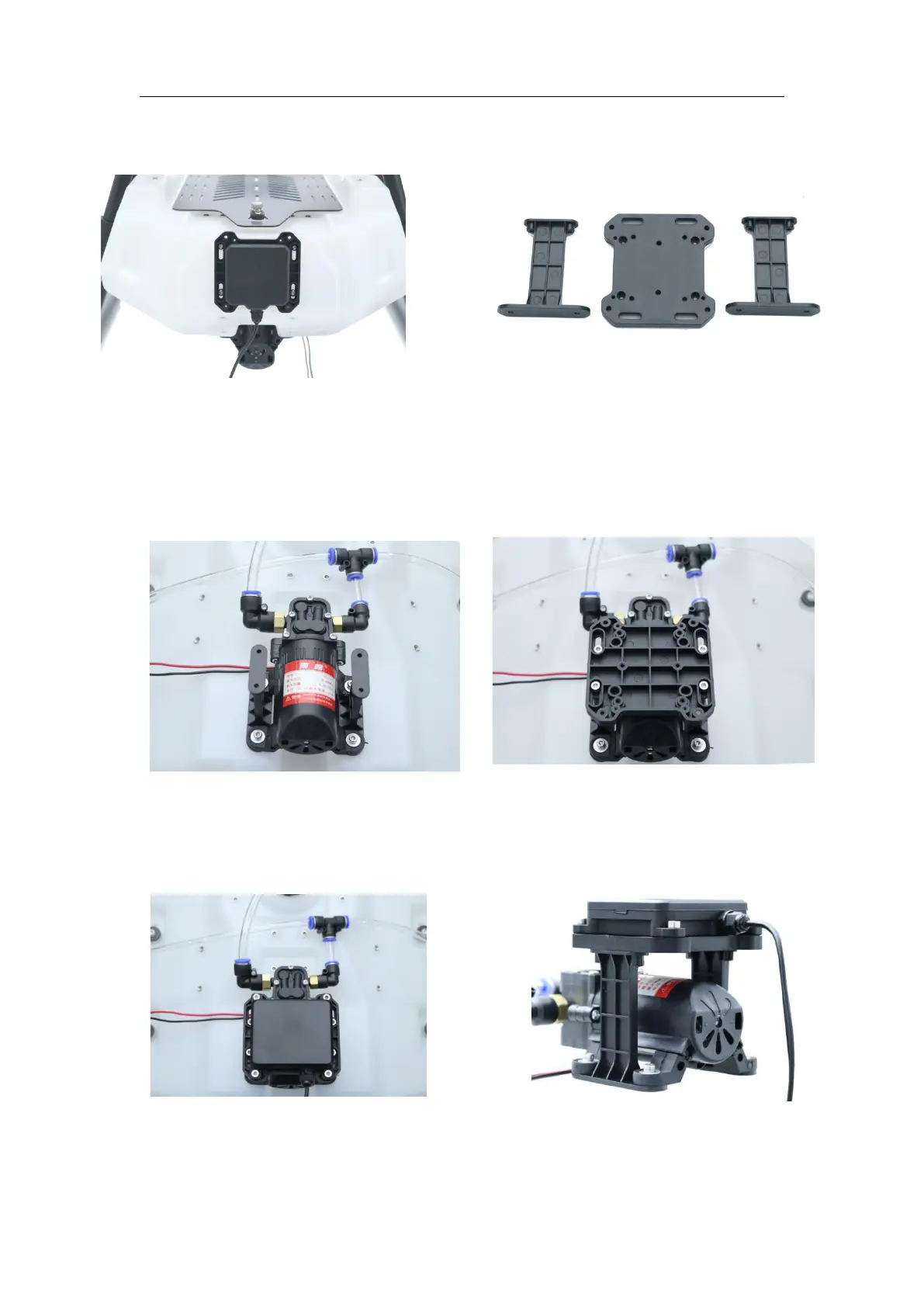

11. Use M4*6 self-tapping screws to
install ground radar.
Pic 7
Pic 9
9. Install the elevated radar under the water
pump and fix it with M4*16 screws.
12. Side view of elevated radar
assembly.
Pic 8
10. Use M4*6 self-tapping screws to
install the radar universal board.
8. Elevated radar installation
components.
7. The rear obstacle avoidance radar can be
directly fixed at the tail of the medicine box.
Pic 11
