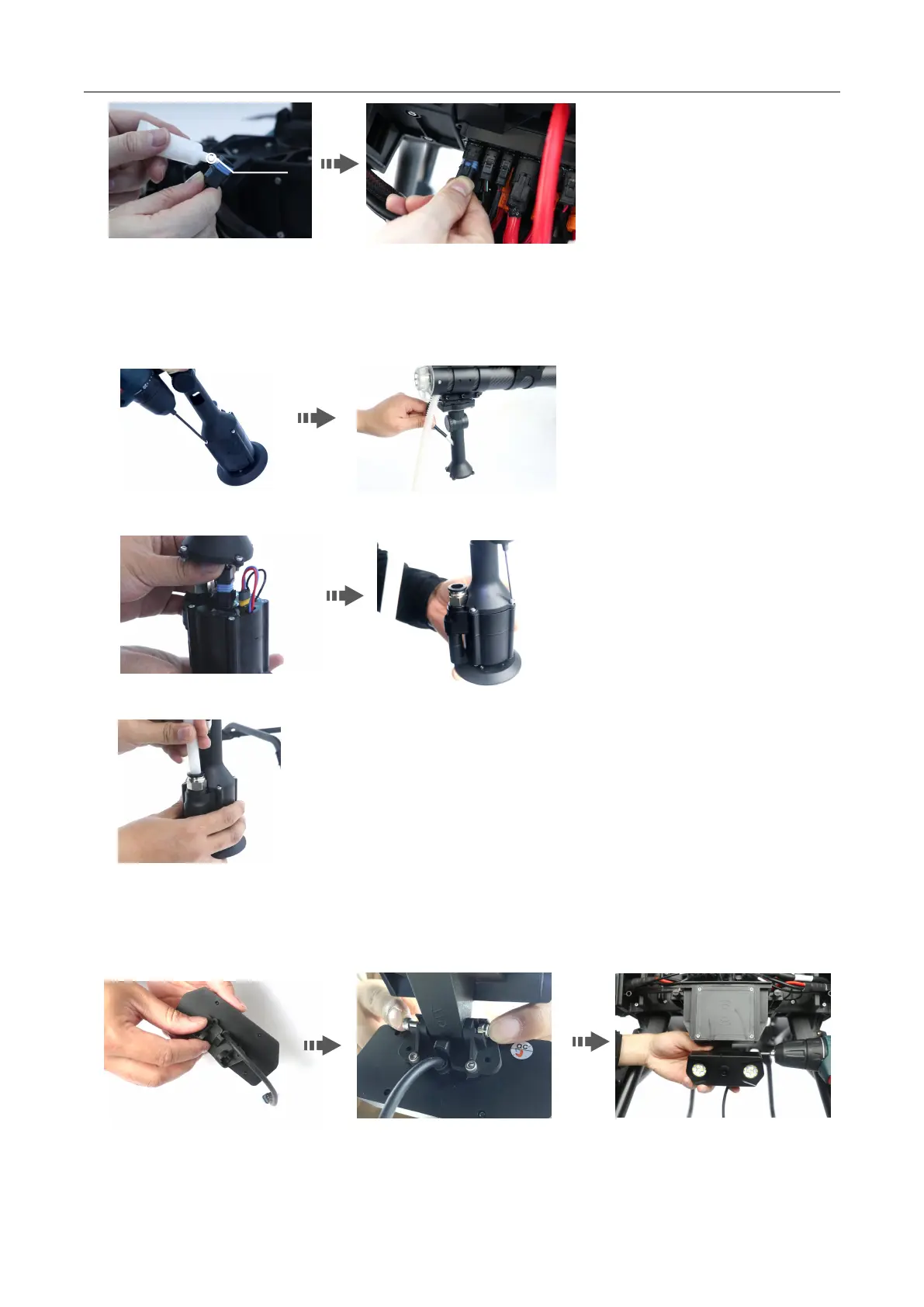

Step 4：I nstall T he Centrifugal Nozzles
1. Remove the power module of the centrifugal nozzle, insert t he adapter cable into the inside of the bracket, and fasten it under the
rear motor set with 4 M3*16 screws (the notch faces outward, which is convenient for water pipe installation).
2. Insert t he nozzle adapter cable in to the motor terminal,then restore the nozzle.
3. F inally insert the water pipe into the motor pneumatic connector.
Step 5：Install Camera
1. Use M3*8 screws to install the adapter on the camera, and use M4*35 half-thread screws and locknuts to install it on the front
body.
2. Pass the camera harness through the seal at the bottom and insert the plug into the front circuit board.
