14
4.4
Installing with Different EG4 ® Battery Models
EG4® LL-S batteries can communicate with all EG4 ® 48V server rack modules. However, you
will need to apply the proper firmware to any LL-V1 and/or Lifepower4 modules before
installation. Please visit http://www.eg4electronics.com/downloads for the latest firmware.
To system
1. Always use the newest model of
LL at the top of your rack as this will
need to be the battery that
communicates with the system.
This battery is also known as the
master and will need to have ID
number 1.
2. When installing the batteries,
ensure that the same models are
grouped together in the bank.
This allows for communication to
flow between the batteries
consistently.
3. After installing the batteries into the
rack, refer to the DIP Switch ID
table to assign the address code of
the bank in numerical order,
beginning with the master and
progressing among the different
models.

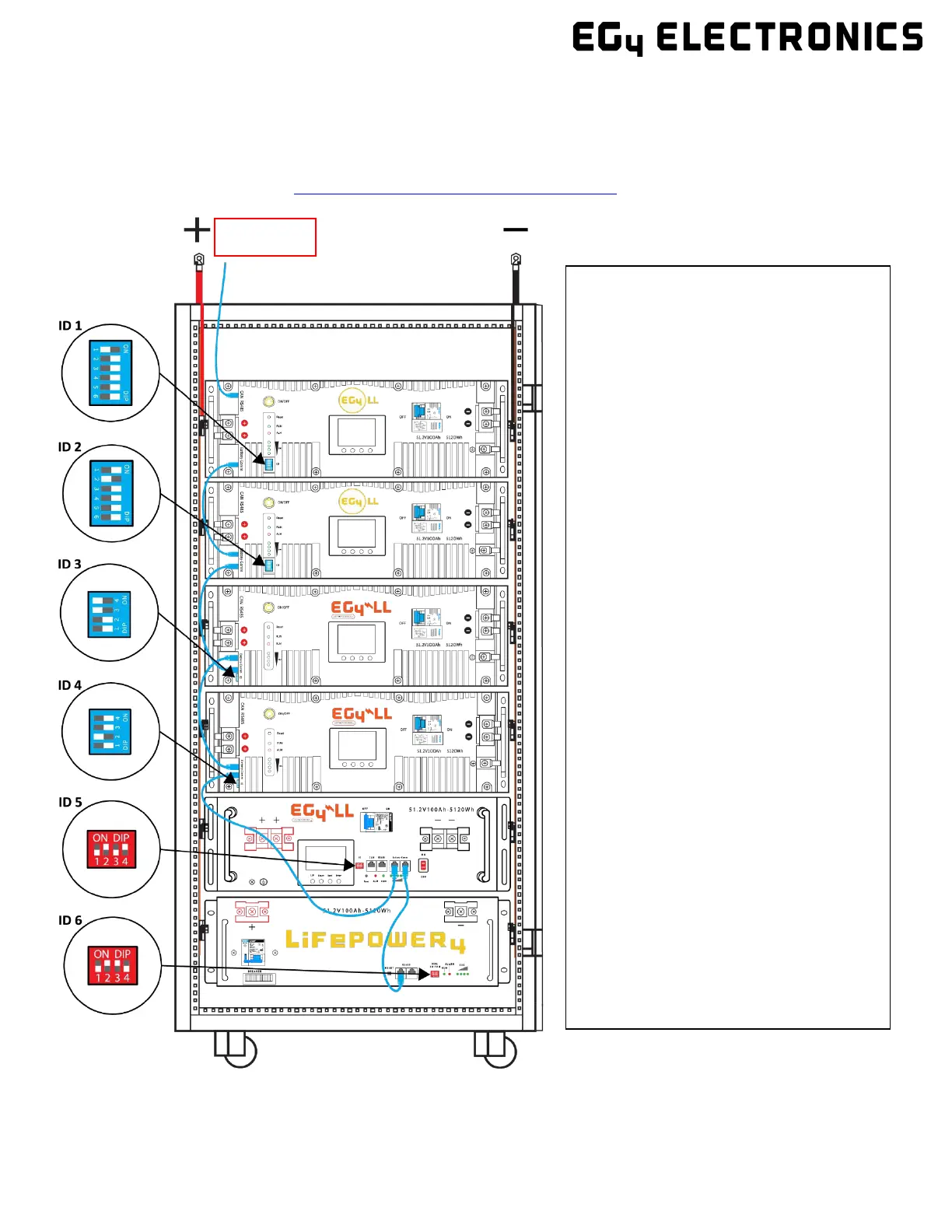

The image on the left shows a bank
with the following EG4® modules:
1. LL- S (6 DIP) [ID-1]
2. LL- V2 (6 DIP) [ID-2]
3. LL- V2 (4 DIP) [ID-3]
4. LL- V2 (4 DIP) [ID-4]
5. LL- V1 [ID-5]
6. Lifepower4 [ID-6]
