3.2

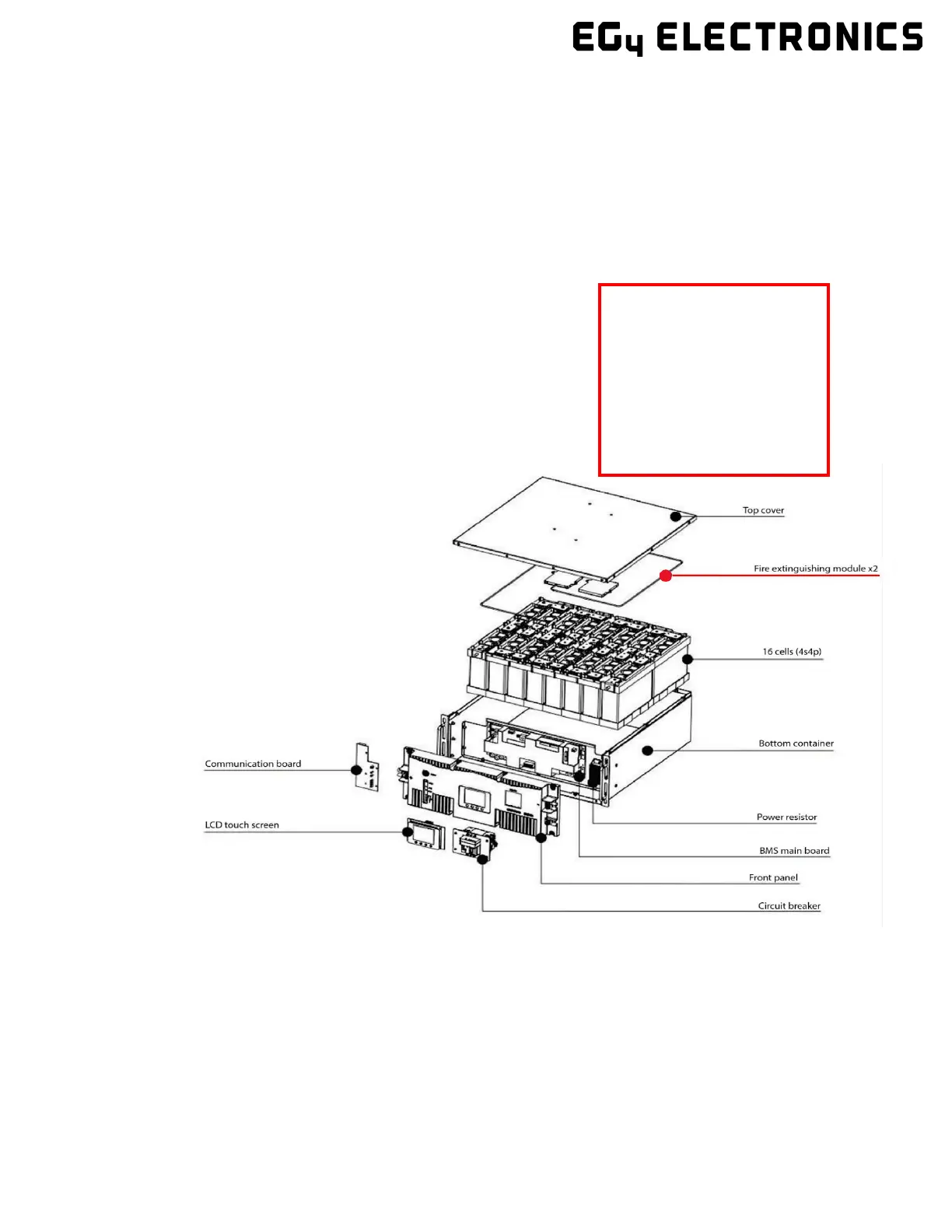

Overview of System Components
The battery module is made up of sixteen "AAA" grade cells, a BMS, a housing, a breaker, and
wire. It can be installed in a standard 19-inch cabinet and communicates with external devices
via CAN/RS485 as well as with other EG4® batteries via RS485. The modules can be
connected in parallel to meet expansion requirements. Inter-battery communications support a
maximum of 64 modules for the 6 DIP switch model or 16 modules for the 4 DIP switch model.
*This image is for display
purposes only. Do not open your
battery! Doing so without proper
authorization will void your
warranty
This unit contains
two aerosol fire-
fighting modules
inside the battery
for safety
measures.*
