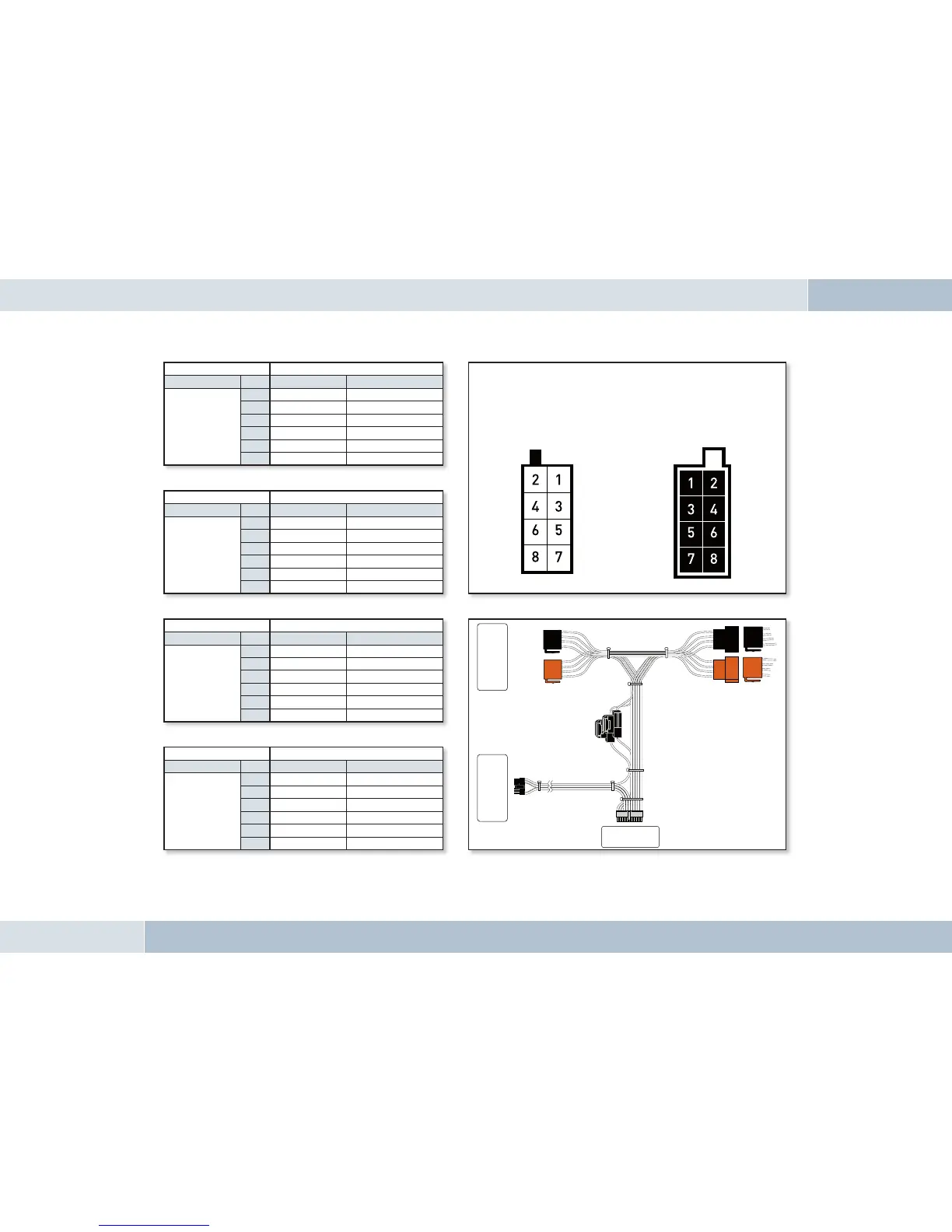

EGO Flash - Fig. 11: Type-Dependent Pin Allocation (EGO Mute Cable); Fig. 11 A: Plug Wiring Scheme EGO Mute Cable; Fig. 11 B: Connection System EGO Mute Cable

Fig. 11:
Type-dependent
pin allocation (EGO
mute cable)
Fig. 11a:
Plug wiring scheme
EGO mute cable
Fig. 11b:
Connection system
EGO mute cable
Socket contact housing
Wiring of power supply connectors
Radio model Pin Wire colour Function
Audi,
Volkswagen,
Grundig
1
2
Mute
3
4
blue Ignition (15)
7
red Permanent positive (30)
8
brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Ford,
Mercedes,
Porsche,
Becker
1
2
3
Mute
4
red Permanent positive (30)
7
blue Ignition (15)
8
brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Blaupunkt
1
2
Mute
3
4
red Permanent positive (30)
7
blue Ignition (15)
8
brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Philips
1
Mute
2
3
4
red Permanent positive (30)
7
blue Ignition (15)
8
brown Ground (31)
Socket wiring from
the rear (see table)
Plug wiring from
the rear
Car audio
Electronics box
Vehicle wiring harness
ISO-Profi
EGO FLASH
