Scope of delivery / package content5

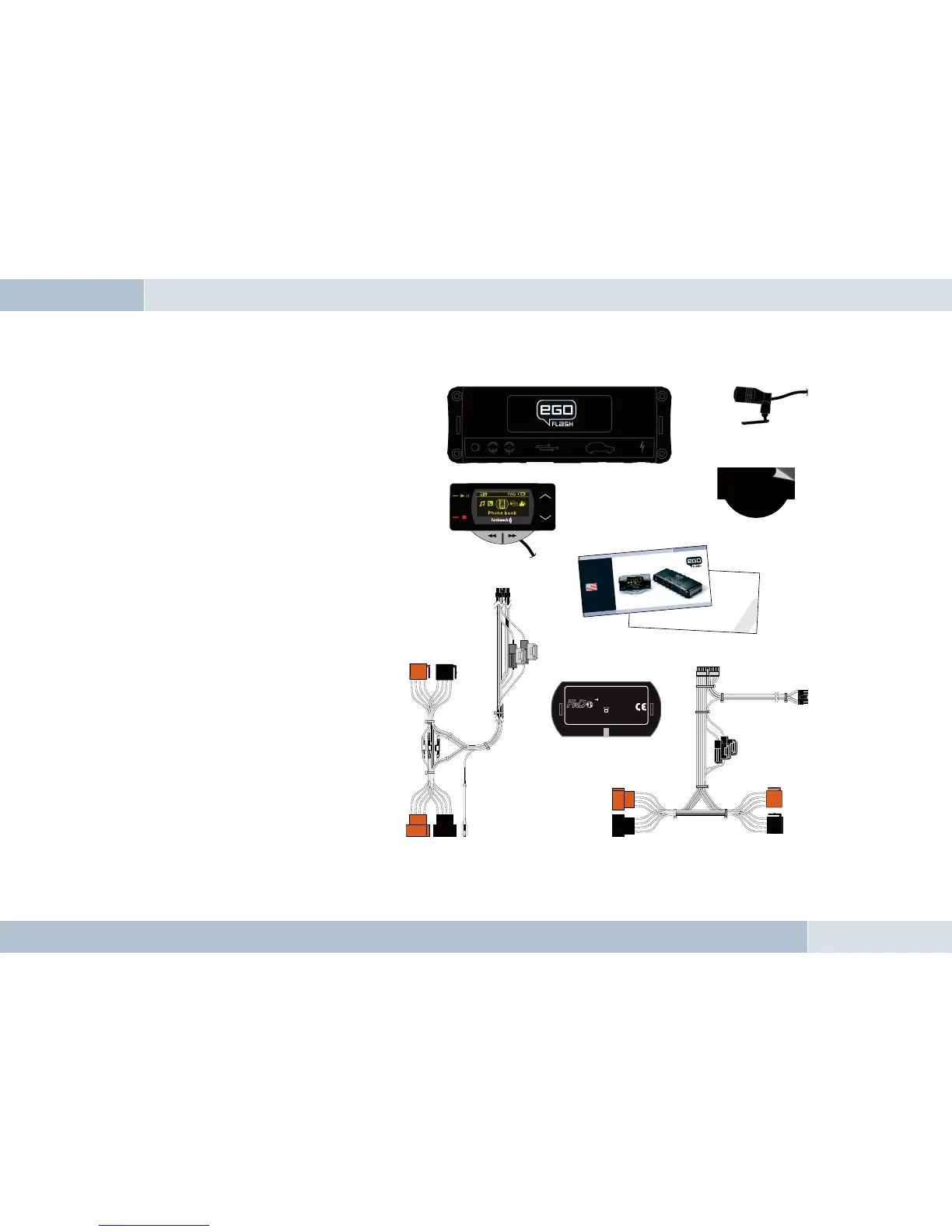

Supplied version 1
[1] Electronics box
[2] Control unit with integrated OLED display
[3] Microphone
[4] Self-adhesive pad
[5] Quick Guide / Safety manual
[6] ISO adapter cable
Supplied version 2
[1] Electronics box
[2] Control unit with integrated OLED display
[3] Microphone
[4] Self-adhesive pad
[5] Quick Guide / Safety manual
[7] EGO mute cable
[8] ISO-Profi box
Supplied version 3
[1] Electronics box
[2] Control unit with integrated OLED display
[3] Microphone
[4] Self-adhesive pad
[5] Quick Guide / Safety manual
* without cable
PLEASE MAKE SURE THE CONTENT OF THE PACKAGE is complete. If any parts are missing, please don‘t hesitate to contact our
service hotline team: +49 (0) 3377 - 316 233, Mon.–Thurs 7.15 a.m.–6.00 p.m., Fri. 7.15 a.m.–4.00 p.m.
[3]
[6]
[4]
[8]
Safety Instructions
1. Improper installation – Improper installation may cause damages to the unit or to the vehicle! e installation of the hands-free car kit requires spezial knowledge and special
abilities. We therefore strongly recommend to have the installation one by a professional.
2. Pe rs ona l in jury –
Inappropriate places for the installation may cause personal injuries in accidents or may disable the safety equipment. Note the directions in the chapter
“Installation”!
3. P ers ona l i njury / Material damage –
When you remove coverings or armature parts, sharp tools may cause personal injuries or material damage. Remove the parts carefully.
Don’t submit the connecting cables to pressure.
4. Neg ative eects on road safety –
Talking whilst driving reduces your concentration. is may cause dangerous situations on the road. Also in hands-free mode, you should draw
your attention to the trac. In complex trac situations you should refrain from using the mobile phone!
5. Damage of the airbag –
A wrong place selected for the installation of the components may cause damage to the air bag or impair the functioning of the air bag. Install the
components out of ra nge of action of the air bag!
6. Insulation da mage –
Damaged insulations may cause damages of the unit. e cables installed should not be exposed to tensile stress. Install the cables such as they are not
pinched or chafed.
7. Damage caused by polarity reversal or short circuiting –
Incorrectly connected cables or a short circuit may cause serious damage to the equipment. It is essential to disconnect
the car battery before you begin installation.
8. Damage of importa nt vehic le components –
Drilling mounting holes or driving in self-tapping screws may cause damage to important vehicle components or to cables. Make sure
there is enough space le also behind the screws und drilling holes!
9. E e c t s on the v e h i c l e ’ s electrical system –
Althoug h the hands-free c ar kit produces low amounts of radiat ion, improper insta llation of the ha nds-free car kit may inuence the
electronic equipment of the car. Note the directions of the vehicle manufacturer!
10. Proper use –
is system is intended for use exclusively with mobile phones in motor vehicles.
11. Damages caused by false replacement parts – False replacement parts may cause disturbances. Only use the replacement parts listed in the chapter “Replacement parts and
Accessories”!
12. Neg ative impact on driving safety –
For your own safety, please do not per form a pairi ng procedure while d riving!
Thank you for choosing a product from Funkwerk Dabendorf.
This Quick Guide takes you through the initial set-up of EGO
FLASH. We recommend using the operating instructions for
your cellular phone (or similar) to familiarize yourself with
the Bluetooth
®
functions. Please make sure before installation
that the cell phone is compatible with the unit.
More information and detailed operating instructions can be
found on our website at www.fwd-online.de.
If you have any questions, call our hotline at +49 (0) 3377 316- 233.
- Electronics box
- Control unit with display
- Microphone
- ISO cable for connecting to the vehicle
- Adapter cable
- Adhesive pad
- Quick Guide
- Safety information
Funkwerk Dabendorf GmbH
Märkische Straße
D-15806 Dabendorf
Telephone +49 (0) 3377 316-233
Fax +49 (0) 3377 316-300
E-mail info@fwd-online.de
Internet www.fwd-online.de
QUICK
GUIDE
A Funkwerk AG company.
Welcome
Contents
EG O FL ASH
Connection Concept
129 8011 1.02
Connection
for EGO FLA SH
display
Line out
connection,
e.g. car radi o
Microphone
connection
Connection,
e.g.
MP3 player
ISO connection
for the vehicle
cable loom
ISO connection
to car radio
Connection
for the
Stereo Mute Box
Baseplat e connector
for mounted ch arger
(optional)
Connection
for ISO cabl e
EGO FLA SH
Bluetooth QD ID B012939
