100
APPENDIX
APPENDIX

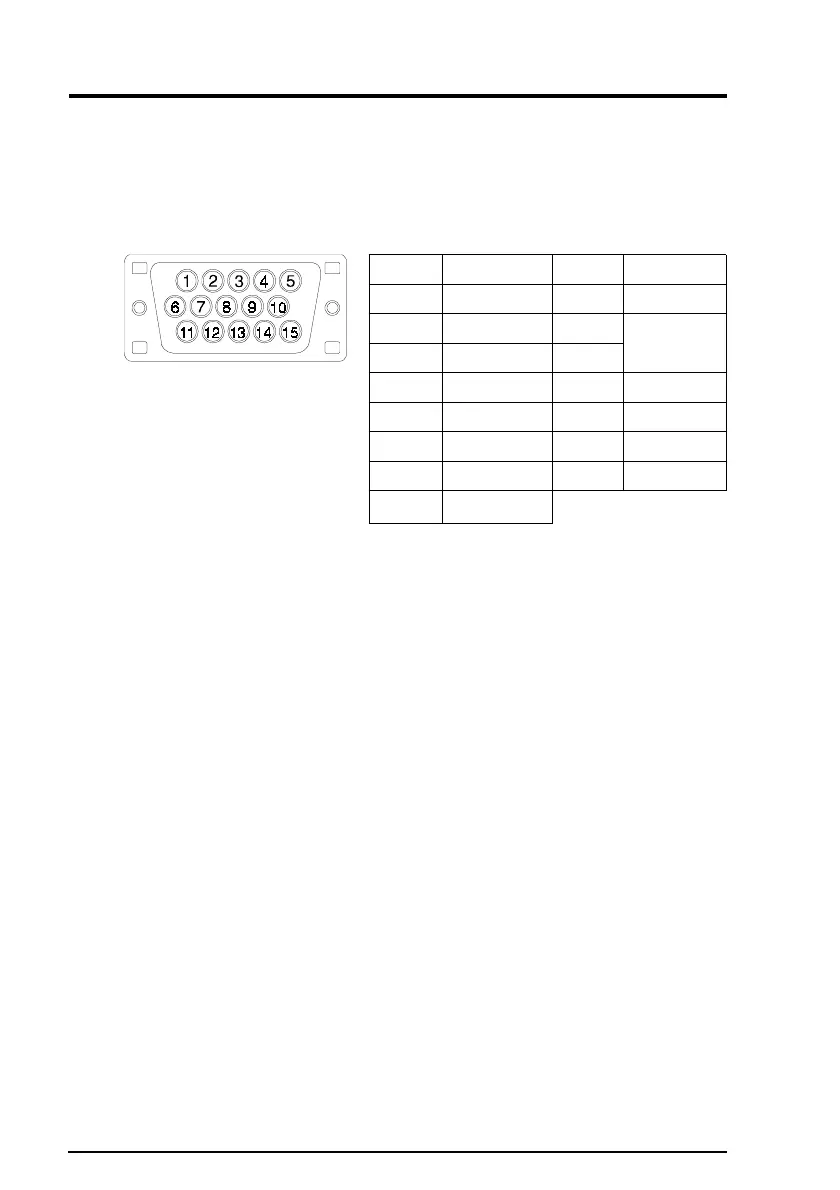

Pin Assignment
Pin-Belegung
Affectation des Broches
D-Sub mini 15 pin connector
Pin No. Signal Pin.No. Signal
1 Red video 9 No pin
2 Green video 10 Ground
3 Blue video 11 (shorted)
4 Ground 12 Data
5 No pin 13 H.Sync
6 Red ground 14 V.Sync
7 Green ground 15 Clock
8 Blue ground
