Package Contents
Check that all the following items are included in the packaging box. If any items are missing or damaged, contact your local
dealer.
NOTE
Please keep the packaging box and materials for future movement or transport of the monitor.
Monitor
Power cord
Digital signal cable (FD-C39)
Analog signal cable (MD-C87)
EIZO USB cable (MD-C93)
EIZO LCD Utility Disk (CD-ROM)
• Users Manual
Setup Manual (this manual)
Limited warranty
Fixing screws: M4 × 12 mm 4PCS

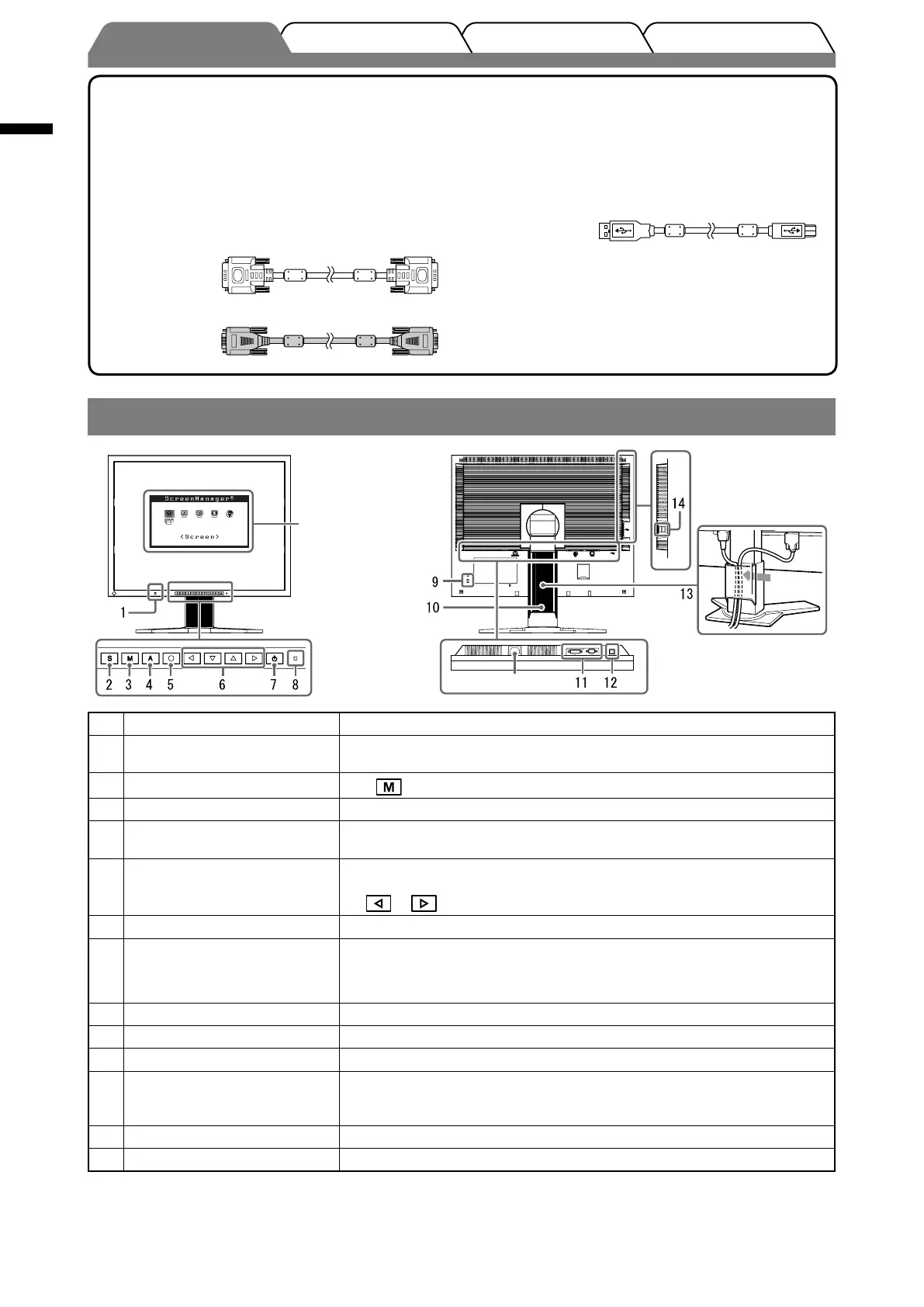

Controls and Functions
1 Sensor The sensor detects ambient brightness. BrightRegulator function (page 5)
2 Input Signal Selection button Switches input signals for display when two PCs are connected to the
monitor.
3
Mode button
The
button allows you to switch the display mode (page 4).
4 Auto Adjustment button Performs the function to adjust the screen automatically. (analog input only)
5 Enter button Displays the Adjustment menu, determines an item on the menu screen, and
saves values adjusted.
6 Control buttons (Left, Down,
Up, Right)
• Chooses an adjustment item or increases/decreases adjusted values for
advanced adjustments using the Adjustment menu (page 5).
or button: Displays the brightness adjustment window (page 5).
7 Power button Turns the power on or off.
8 Power indicator Indicates monitor’s operation status.
Blue : Operating Off : Power off
Yellow : Power saving
9 Security lock slot Complies with Kensington’s MicroSaver security system.
10 Height adjustable stand Adjusts the height and angle of the monitor screen.
11 Input signal connectors Left: DVI-I connector/Right: D-sub mini 15-pin connector.
12 USB upstream port Connects the USB cable when using ScreenManager Pro for LCD Software
(for Windows).
For how to use the software, refer to the User’s Manual on the CD-ROM.
13 Cable holder Covers the monitor cables.
14 USB downstream port Connects the monitor to a USB peripheral device.
* ScreenManager
®
is an EIZO’s nickname of the Adjustment menu. (For how to use ScreenManager, refer to the User’s Manual on
the CD-ROM.)
Adjustment menu
(*ScreenManager
®
)
Power connector
Hold the projection
to open/close the
holder.
