3
English
TroubleshootingSetting/AdjustmentPrior to use Installation

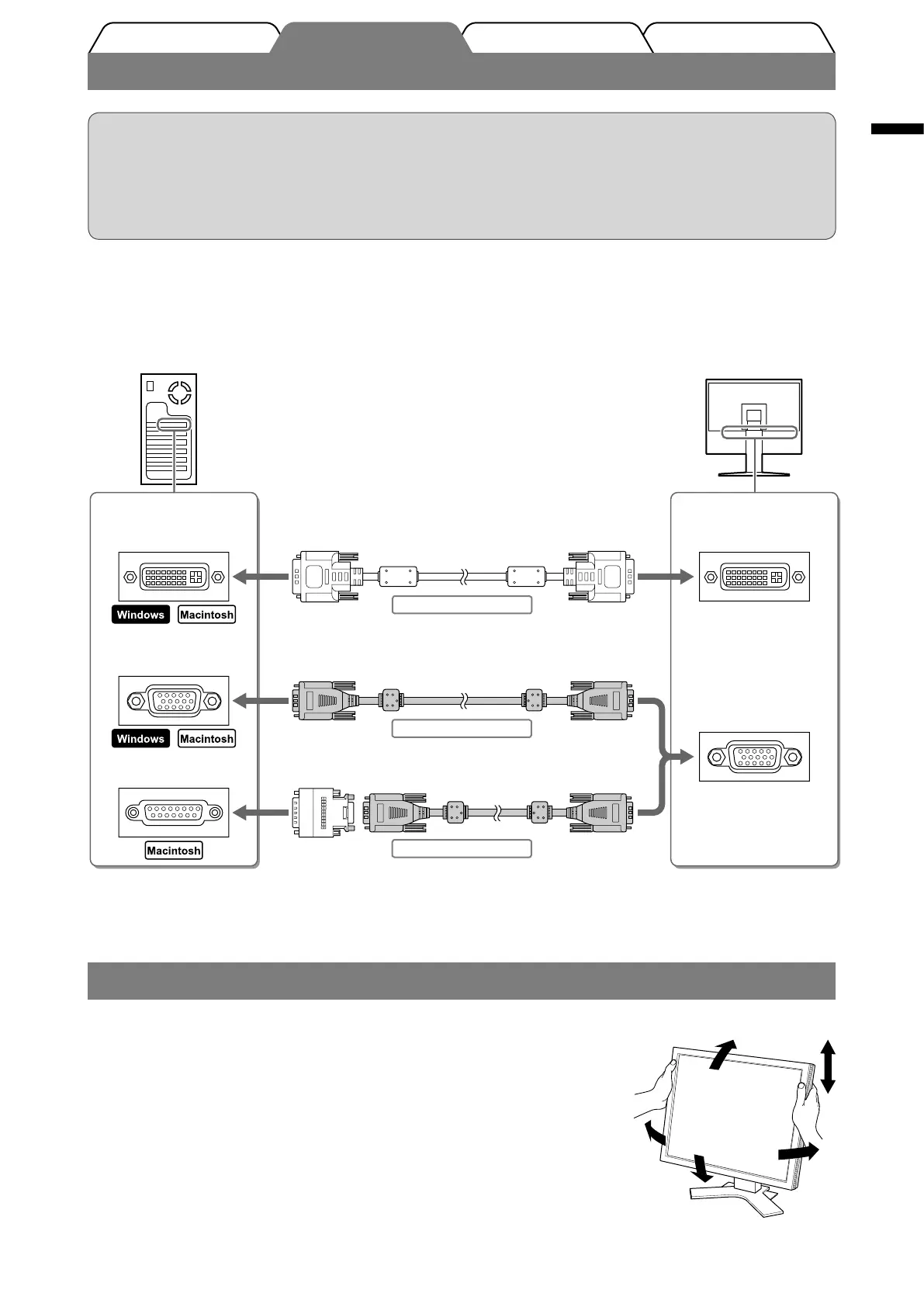

Connecting Cables
Attention
• When replacing the current monitor with an S2100 monitor, be sure to change the PC settings for
resolution and vertical frequency to those which are available for the S2100 monitor referring to the
resolution table (back of cover page) before connecting the PC.
NOTE
• When connecting two PCs to the monitor, refer to the User’ s Manual on the CD-ROM.
1
Check that the monitor and the PC are powered off.
2
Connect the monitor to the PC with a signal cable that matches the connectors.
After connecting the cable connectors, tighten the screws of the connectors to secure the coupling.
3
Plug the power cord into a power outlet and the Power connector on the monitor.
Adjusting Screen Height and Angle
Adjust the screen height, tilt and swivel the screen to the best condition for working.
Connectors on the
PC
DVI-I connector
D-sub mini 15-pin
connector
D-sub 15-pin
connector
Connectors on the
monitor
DVI-I connector
D-sub mini 15-pin
connector
Signal cable FD-C39 (supplied)
Signal cable MD-C87 (supplied)
Macintosh Adaptor (optional) and
signal cable MD-C87 (supplied)
Digital connection
Analog connection
Analog connection
To Next Page
