Electronic convection oven rev. 11 ________________MODD. EKF 616 TC – EKF 664 TC – EKF 711 TC – EKF 1016 TC
EKF 1064 TC – EKF 1111 TC – EKF 1664 TC – EKF 2011 TC
_________________________________________________________________________________________ page 9
MODELS EKF 1016 TC – EKF 1064 TC – EKF 1111 TC

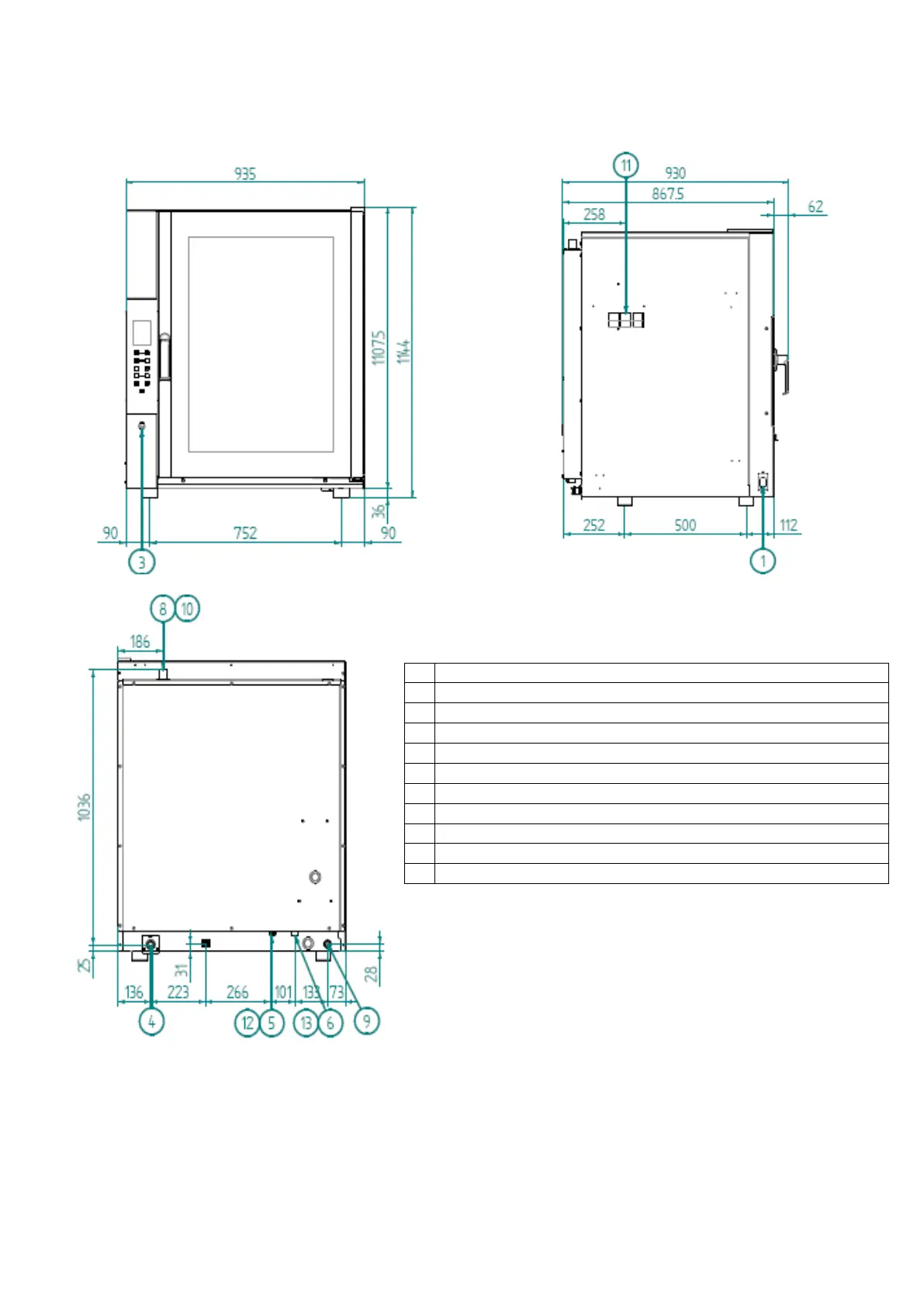

Fig. 1 (Dimensions are expressed in mm.)
1
USB PORT
3
SOCKET FOR CORE PROBE CONNECTION
4
WATER DRAIN PIPE (DN30)
5
WASHING WATER INLET
6
SOFTENED WATER INLET (THREADED SOLENOID VALVE¾”)
8
STEAM VENT
9
POWER SUPPLY CABLE RETAINER
10
WARNING HOT SURFACE
11
DO NOT OBSTRUCT AERATION VENTS
12
WATER INLET MAX.200kPa
13
SOFTENED WATER INLET MAX. 200kPa
