- 12 -
CHECKING FOR CONTACT
If necessary, temporarily remove the water block to check for
uniform surface contact between the block and components.
Pay special attention to the VRM section of the graphics card.
Check whether the water block makes contact with the intended
integrated circuit. Then repeat Steps from the previous section to
re-attach the block.
In case you fail to obtain good contact, please check again or contact
our support service at https://www.ekwb.com/customer-support/.
STEP 3
STEP 3
ATTACHING THE I/O COVER

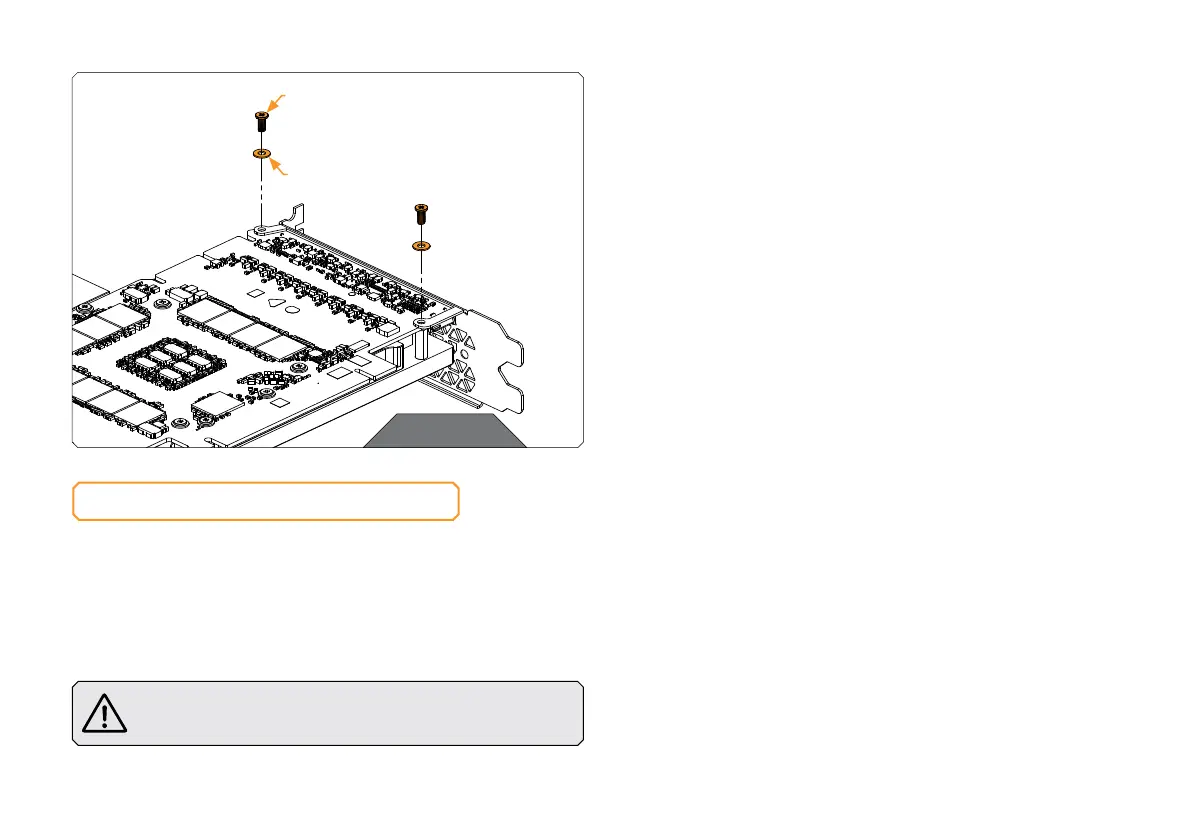

After attaching the water block, carefully position the I/O cover
onto the graphics card while ensuring the holes are aligned. Use
two (2) M2.5 X 6 AX1 screws and PVC washers to secure the I/O
cover to the PCB.
M2.5 x 6 AX1 SCREW
PVC WASHER
