PREPARING THE GRAPHICS CARD
STEP 1
REMOVING THE STOCK COOLER

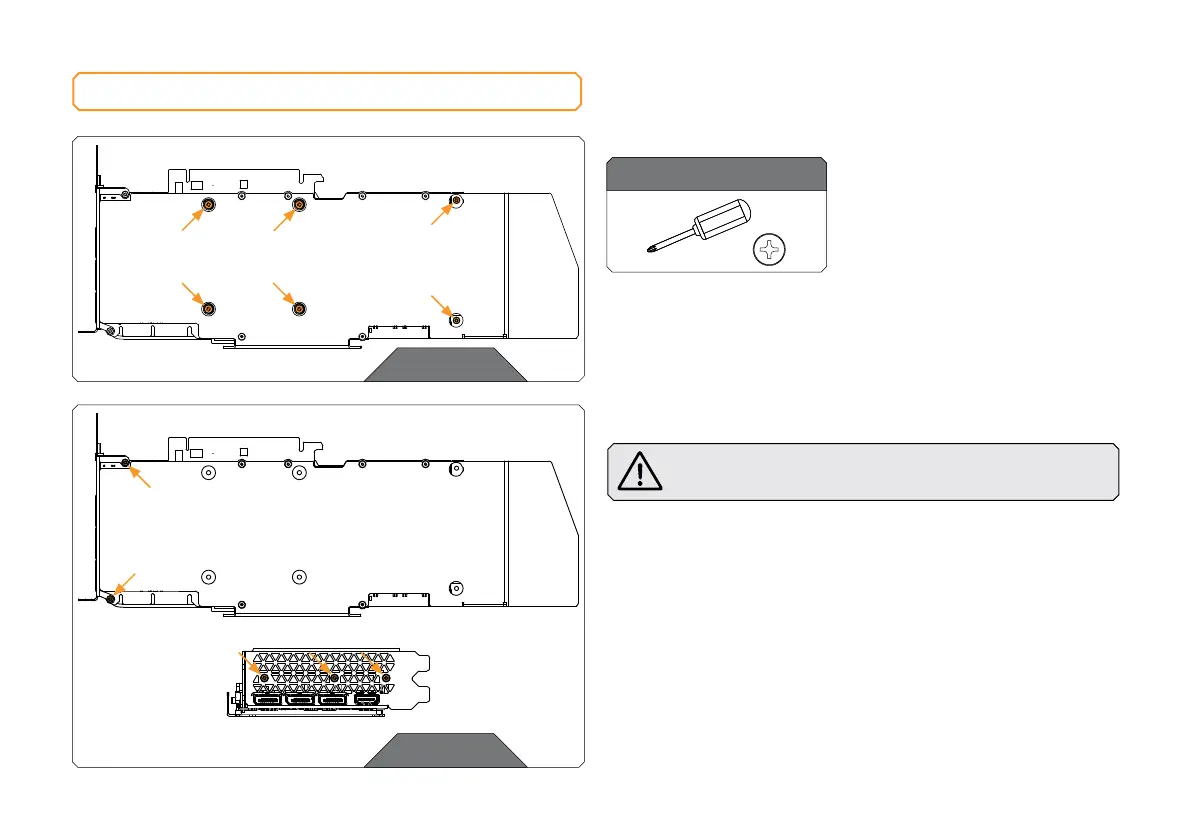

Use the Phillips head screwdriver to remove the six marked screws
from the side of the backplate.
Carefully detach the PCB together with the backplate from the stock
cooler and disconnect four cables connected to the PCB.
Always remove the stock cooler slowly - it might be firmly
glued to the PCB with thermal pads.
You will need the following tool:
STEP 2
REMOVING THE I/O COVER
Use the Phillips head screwdriver to remove the two screws from the
side of the backplate and three screws from the I/O side. Put the I/O
cover aside - you’ll need it later.
STEP 1
STEP 2
Phillips Head Screwdriver
