STEP 2
Trinity RTX™ 3080/3090
STEP 2

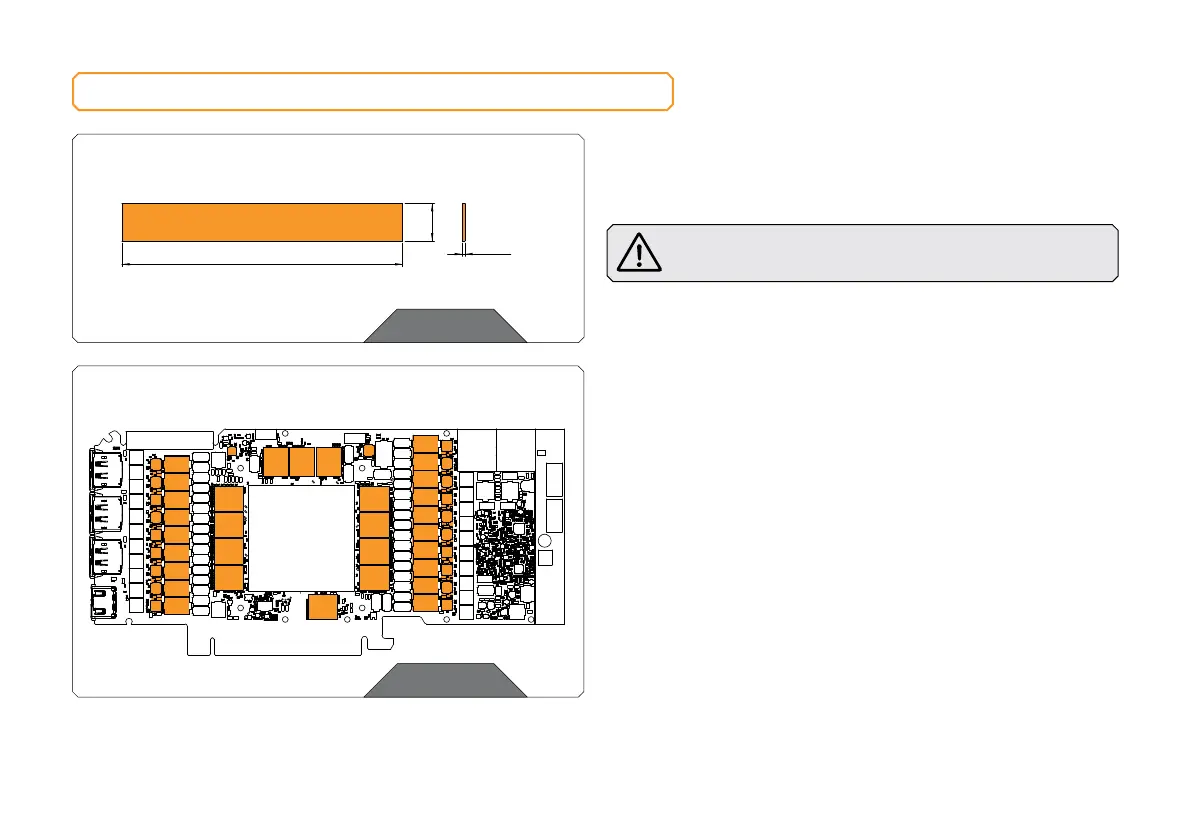

Once cut to size, thermal pads should be placed on the PCB, as
illustrated below. EK made sure to provide you with more than an
adequate quantity of thermal pads to complete this Step.
STEP 1
Your GPU water block comes with thermal pads that have to be cut
into smaller pieces to cover all the VRM components, such as COILs,
MOSFETs, and drivers.
You must remove the protective foil from both sides of the
thermal pad before installation.
Thermal pads:
4x Thermal Pad F 1.0mm – (120X16mm) EAN: 3830046996732
STEP 1
Thermal Pad F – 1.0 mm (120 x 16 mm)
CUTTING AND PLACING THERMAL PADS
120 mm
16 mm
1 mm
Thermal Pad F 1.0mm
